Trailer Accesaries Five Functions Trailer Tail LED Lamp Kit with Triangles

Certification
CE and ROHS
Model Number
ZC4015
MOQ
1000PCS
Packaging Details
100PCS/CTN
Supply Ability
200000PCS/Month
Type
European Trailer Lamp Kit
Contact Now
Trailer Accesaries Five  Functions Trailer Tail  LED Lamp Kit with Triangles

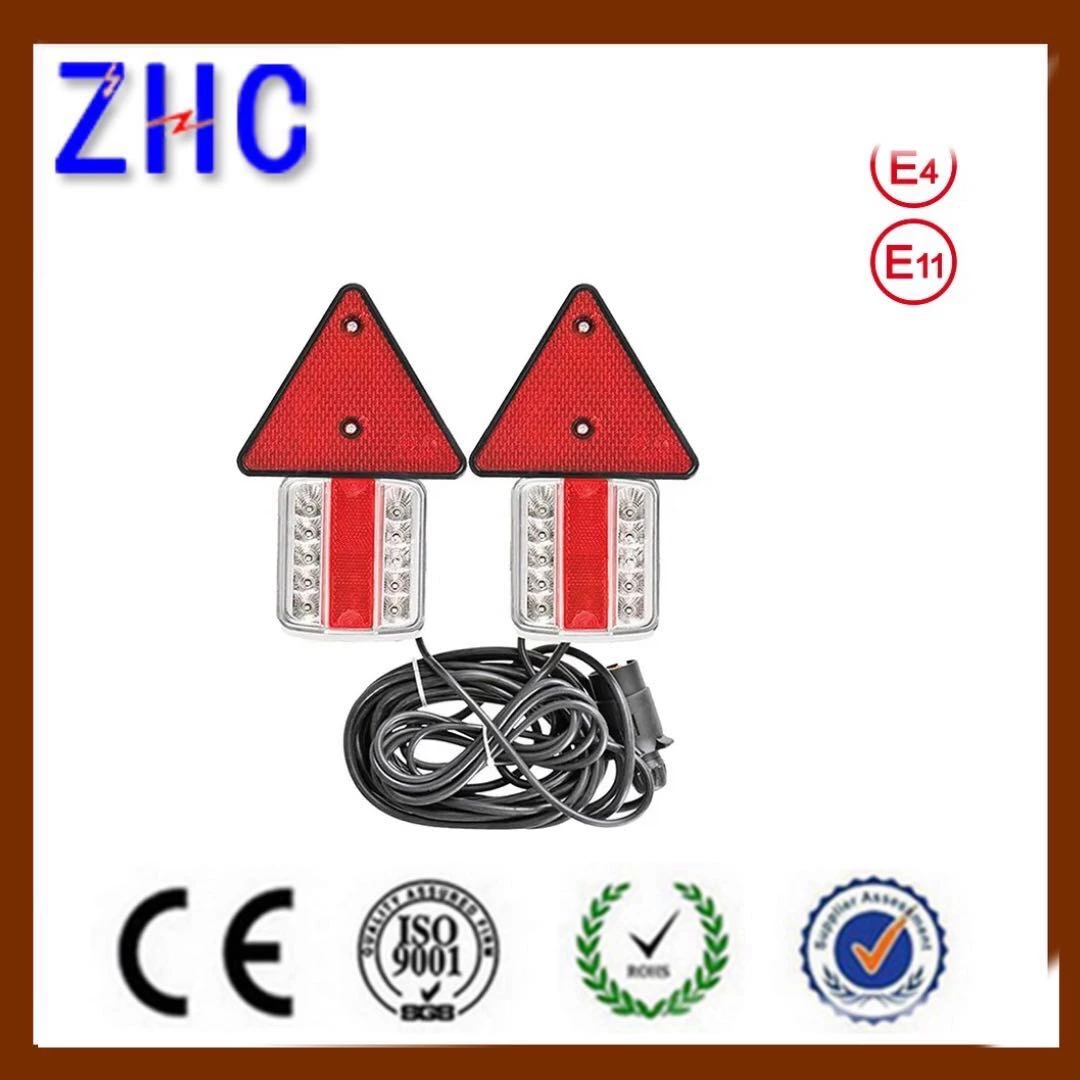

LED rear trailer lamp real trailer lamp board



European Trailer connector 7P 12V

Trailer Accesaries Five  Functions Trailer Tail  LED Lamp Kit with Triangles

Type  Trailer Lamp Kits
Model NO.  ZC4015
certification  CE, ROHS, PAHS
Aplication  Automotive,Trailer,Truck,Yacht and so on





Plastic Trailer Connector
Specifications:

7 Pin Lighting Connections - 12 N Black Cable Function

PIN 1 - Yellow Wire (Left/H Direction Indicator)
PIN 2 - Blue Wire ( Rear Fog Lamps )
PIN 3 - White Wire ( Earth Return )
PIN 4 - Green Wire (Right/H Direction Indicator)
PIN 5 - Brown Wire (Right/H Tail & No. Plate Lamp )
PIN 6 - Red Wire (Brake lights)
PIN 7 - Black Wire (Left/H Tail & No. Plate Lamp )



7P Trailer Connector
