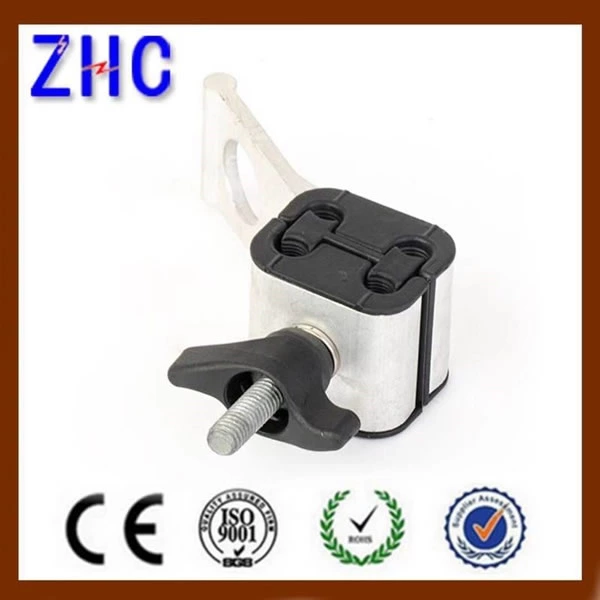

Suspension Clamp

Aluminium Alloy Suspensioning of 2 or 4-core LV ABC cables (service lines) Suspension Clamp with hook

Certification
CE
Model Number
ZC239
Packaging Details
50pcs/ctn , 45x21x41cm , 15kgs
Supply Ability
100000PCS/Month
Material
Thermoplastic Aluminum Alloy
Bolt
NFC 33-040
Contact Now
Aluminium Alloy Suspensioning of 2 or 4-core LV ABC cables (service lines) Suspension Clamp with hook
Aluminium Alloy Suspensioning of 2 or 4-core LV ABC cables (service lines) Suspension Clamp with hook Aluminium Alloy Suspensioning of 2 or 4-core LV ABC cables (service lines) Suspension Clamp with hook

Aluminium Alloy Suspensioning of 2 or 4-core LV ABC cables (service lines) Suspension Clamp with hook

Introduction

Product property: Used for the installation and suspension of LV ABC cables to poles witli standard hook attaclinient. For straight lines and angles up to 30° Thanks to the integrated construction, no extra parts are needed for the installation. The body is made of corrosion proof aluininiuin and the inserts of weather resistant plastic.

Light duty clamp for the installation and suspension of 4-core LV ABC cables to poles with standard hook attadnncnt. For straight lines and angles up to 30° . Thanks to the integrated construct ion,no extra parts are needed for the installation. The body is made of corrosion proof aluininiuin and the inserts of weather resistant plastic.

For the installation and suspension of 4-core LV ABC cables to poles with standard hook attachment.

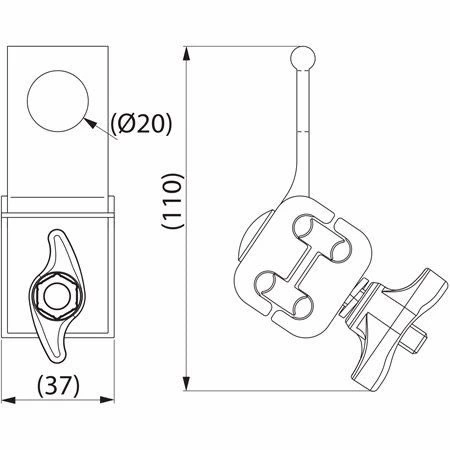

Dimensions

Item No. Cross section(mm2) Fixing Angle
ZC239 2-4x(6-25) mm² up to 30°
