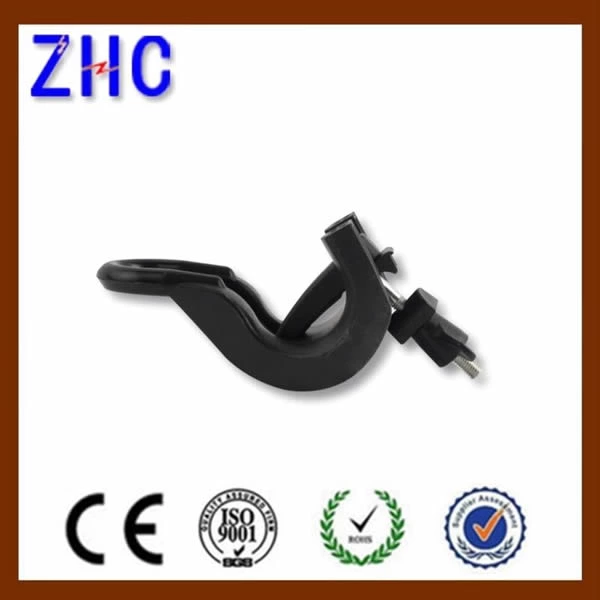

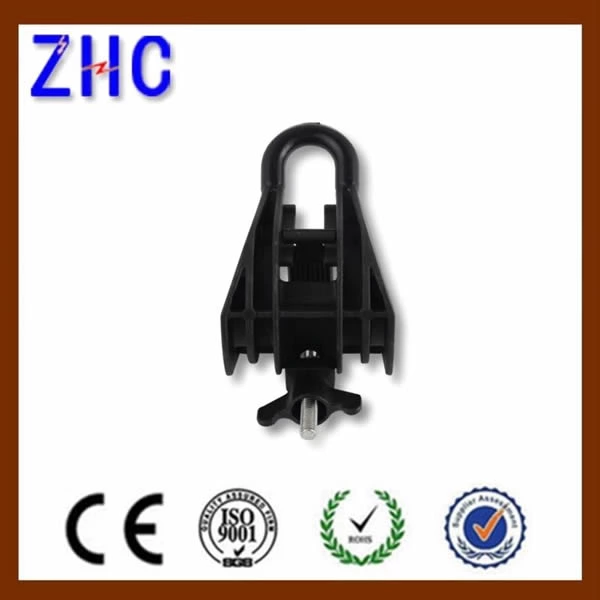

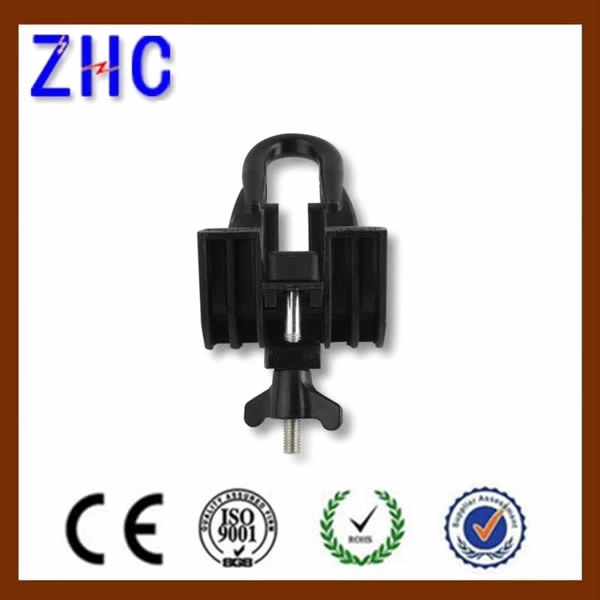

Suspension Clamp

UV Resistant Plastic Hanging Suspension Clamp For Suspension of 4 cores ABC cables from poles

Certification
CE
Model Number
ZCPB
Packaging Details
50pcs/ctn , 50x21x21cm , 15kgs
Supply Ability
100000PCS/Month
Material
Thermoplastic Aluminum Alloy Hook
IEC Standard
NFC 33-040
Contact Now
UV Resistant Plastic Hanging Suspension Clamp For Suspension of 4 cores ABC cables from poles
UV Resistant Plastic Hanging Suspension Clamp For Suspension of 4 cores ABC cables from poles1 UV Resistant Plastic Hanging Suspension Clamp For Suspension of 4 cores ABC cables from poles2 UV Resistant Plastic Hanging Suspension Clamp For Suspension of 4 cores ABC cables from poles3 UV Resistant Plastic Hanging Suspension Clamp For Suspension of 4 cores ABC cables from poles4

UV Resistant Plastic Hanging Suspension Clamp For Suspension of 4 cores ABC cables from poles

Applicaiton:

ZCPB Suspension Clamp is suitable for connection or suspension between the two-core and four-core self-supporting insulated wire.For the installation and suspension of 4- core ABC cables from poles with standard hook attachment. For straight lines and depending on cross section, angles up to 15/30 degrees.Structure itself provide installation without any tools. Clamp including composite parts is protected form wearing in hook attachmentpoint

Features:

  1. The clamp complete the transformation between anchoring clamps and supporting clamps by adjusting bolt.
  2. The surface is special which can guarantee fastness, skid resistance and insulation.
  3. The body materials are UV-resistant.

UV Resistant Plastic Hanging Suspension Clamp For Suspension of 4 cores ABC cables from poles

Item No. Cross section(mm2) Material Conductor(mm) Breaking load
ZCPB 2x(25-35)-4x(16-120) Nylon,Steel 12-42 8KN
