Suspension Clamp

Self-supporting Thermoplastic Body Aluminum Bracket Suspension Clamp Set for Insulated Overhead Conductors 25-95 mm²

Certification
CE
Model Number
ES1500A
Packaging Details
50pcs/ctn , 50x21x21cm , 15kgs
Supply Ability
100000PCS/Month
Material
Thermoplastic Aluminum Alloy Hook
IEC Standard
NFC 33-040
Contact Now
Self-supporting Thermoplastic Body Aluminum Bracket Suspension Clamp Set for Insulated Overhead Conductors 25-95 mm²

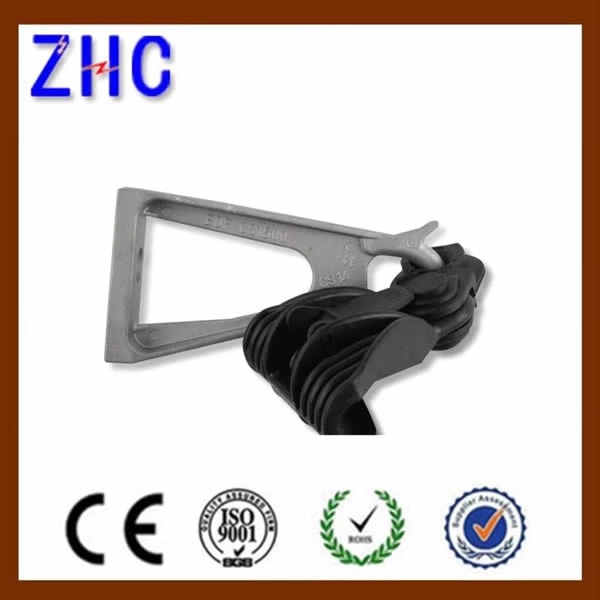

Self-supporting Thermoplastic Body Aluminum Bracket Suspension Clamp Set for Insulated Overhead Conductors 25-95 mm²1 Self-supporting Thermoplastic Body Aluminum Bracket Suspension Clamp Set for Insulated Overhead Conductors 25-95 mm²2

Self-supporting Thermoplastic Body Aluminum Bracket Suspension Clamp Set for Insulated Overhead Conductors 25-95 mm²

Application:

The ES1500A  Suspension Set is used to hang LV-ABC cables on poles with the insulated neutral messenger.

Features:

  1. It can be paired with all hooks and brackets, which are not affected by UV, weather and climate.
  2. The anchoring bracket is made of corrosion resistant aluminium alloy.
  3. The clamp and movable link is made of weather resistant and mechanically reliable insulated polymer.
  4. Hang the self-supporting insulated wire on the bracket with maximum angle of 60 degrees.
  5. Standard:NFC 33-040,EN 50483-3

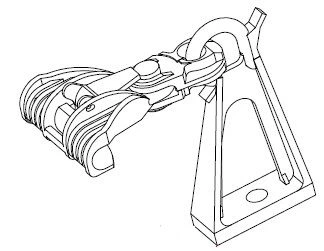

Self-supporting thermoplastic body aluminum bracket suspension clip kit for 25-95mm² insulated overhead conductor Details Image1

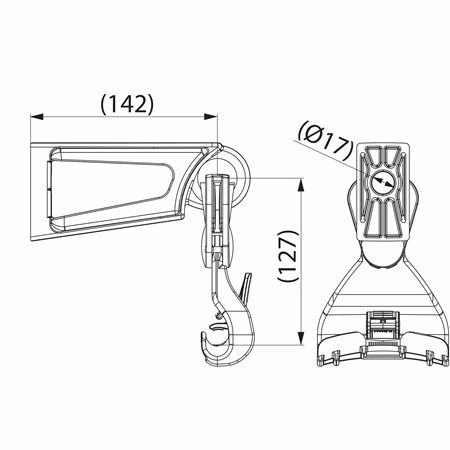

Self-supporting thermoplastic body aluminum bracket suspension clip kit for 25-95mm² insulated overhead conductor Details Image2

Item No. Cross section (mm2) Conductor(mm) Breaking load
ES1500 25-95 5-14 12KN
