Suspension Clamp

High strength aluminum alloy electrical insulated ABC cable Suspension clamp bracket

Certification
CE
Model Number
ES54-14
Packaging Details
50pcs/ctn, 54*31*32cm, 20kgs
Supply Ability
100000PCS/MONTH
Material
Anti UV Thermoplastic Fibre Glass Reinforced
IEC Standard
Nfc33-040
Contact Now
High strength aluminum alloy electrical insulated ABC cable Suspension clamp bracket

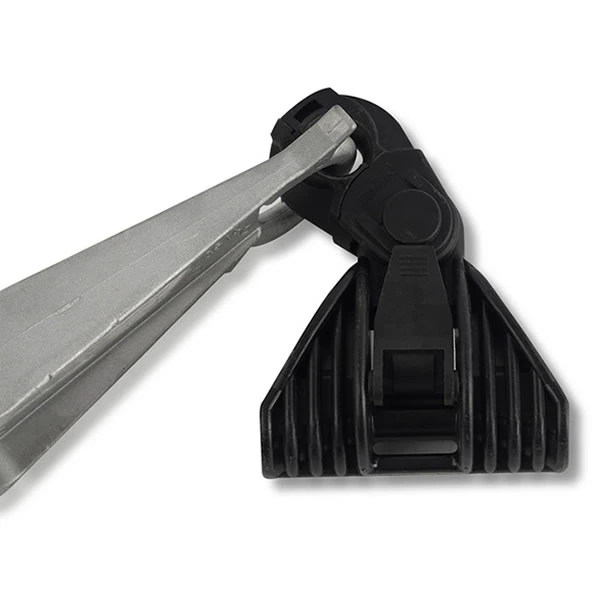

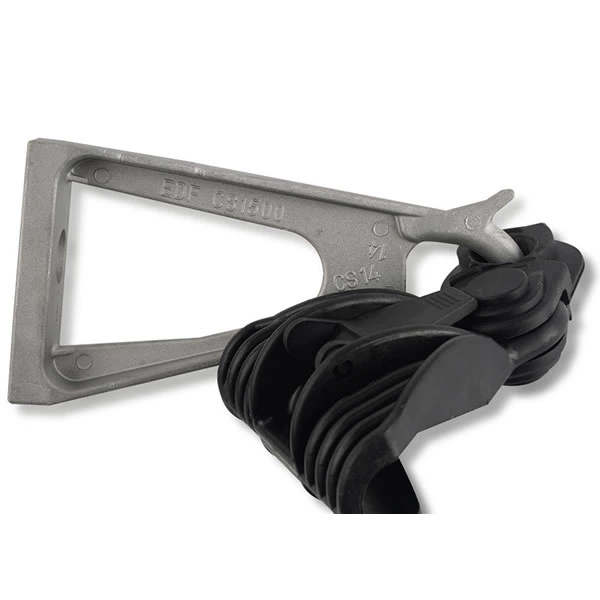

High strength aluminum alloy electrical insulated ABC cable Suspension clamp bracket1 High strength aluminum alloy electrical insulated ABC cable Suspension clamp bracket2 High strength aluminum alloy electrical insulated ABC cable Suspension clamp bracket3

High strength aluminum alloy electrical insulated ABC cable Suspension clamp bracket

Product property:

The clamps are designed to hang self supporting LV-ABC lines with insulated neutral messagers.The neutral messager is fixed by an adjustable grip device,A movable link allows longitudinal and transersal movement of the clamp body.

Standard clamp version ES is supplied with preinstalled bracket.The upper bulge of the bracket prevents the clamp from turning over the bracket.

Clamps are also available without bracket and with a fuse link.These clamp are fixed to a pole or facade with a pig tail hook or bracket

Features:

  1. Toolfree installation
  2. No losable parts

Materials:

  1. Clamp and link: made of polymer giving an additional insulation between the cable and the pole. or made of weather and UV resistant glass fibre reinforced polymer
  2. Bracket: Made of corrosion resistant aluminum alloy.
CODE CONDUCTORRANGE(MM2) STANDARD
ZC94 16-95MM2 NFC33-040
ZC95 16-95MM2 NFC33-040
1.1A 16-95MM2 NFC33-040
1.1B 16-95MM2 NFC33-040
ES54-14 16-95MM2 NFC33-040
PS1500 16-95MM2 NFC33-040
SHC-1 4X16-35 NFC33-040
SHC-2 4X120+50 NFC33-040
SHC-3 4X50-70 NFC33-040
SHC-4 4X50-70 NFC33-040
SHC-5 4X70-95 NFC33-040
SHC-6 4X70-95 NFC33-040

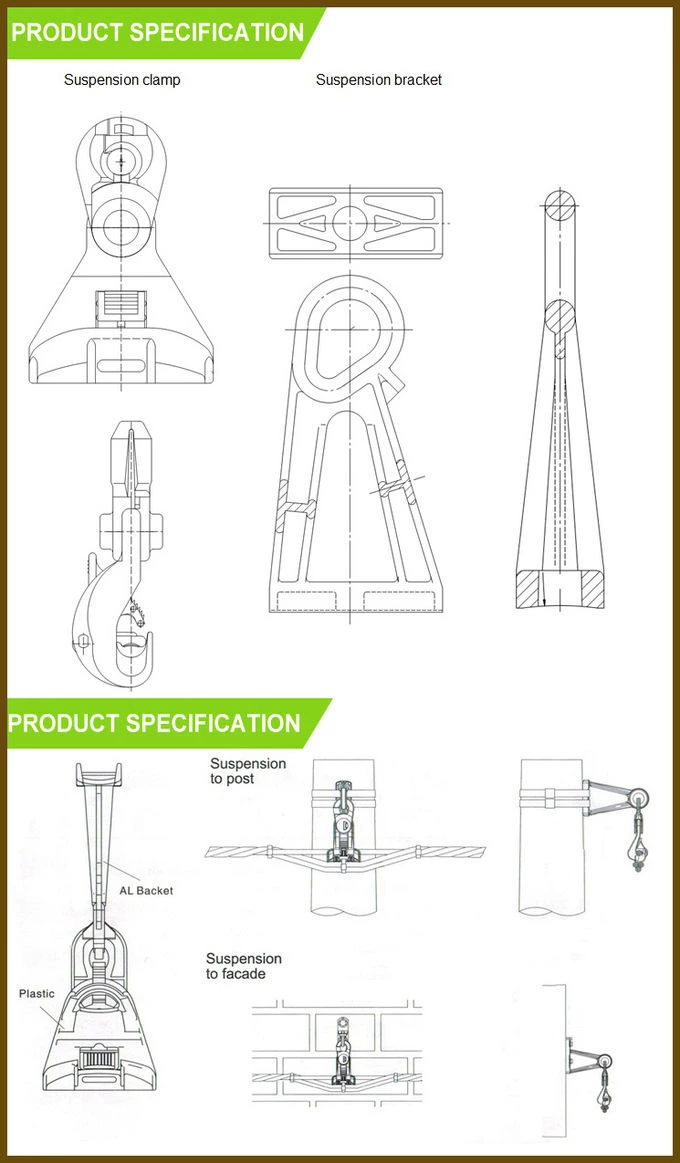

High-strength aluminum alloy electrical insulation ABC cable suspension clamp bracket Details Picture

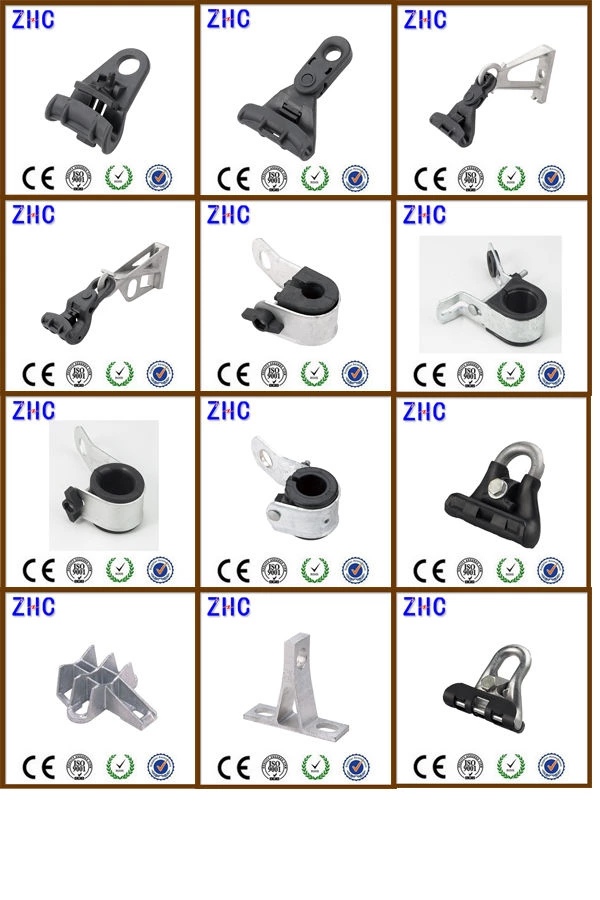

High-strength aluminum alloy electrical insulation ABC cable suspension clamp bracket Other products Picture
