Suspension Clamp

Dielectric Voltage 4kv in Air High Resistant Thermoplastic Suspension Clamp Assembly for ABC Cable 16-95mm2

Certification
CE
Model Number
ZC95
Packaging Details
50pcs/ctn , 50x21x21cm , 15kgs
Supply Ability
100000PCS/Month
Material
Thermoplastic Aluminum Alloy
IEC Standard
NFC 33-040
Contact Now
Dielectric Voltage 4kv in Air High Resistant Thermoplastic Suspension Clamp Assembly for ABC Cable 16-95mm2
Dielectric Voltage 4kv in Air High Resistant Thermoplastic Suspension Clamp Assembly for ABC Cable 16-95mm21 Dielectric Voltage 4kv in Air High Resistant Thermoplastic Suspension Clamp Assembly for ABC Cable 16-95mm22 Dielectric Voltage 4kv in Air High Resistant Thermoplastic Suspension Clamp Assembly for ABC Cable 16-95mm23 Dielectric Voltage 4kv in Air High Resistant Thermoplastic Suspension Clamp Assembly for ABC Cable 16-95mm24 Dielectric Voltage 4kv in Air High Resistant Thermoplastic Suspension Clamp Assembly for ABC Cable 16-95mm25

Dielectric Voltage 4kv in Air High Resistant Thermoplastic Suspension Clamp Assembly for ABC Cable 16-95mm2

Application

These products are designed to hang the LV ABC insulated lines using an insulated neutral messenger

Description

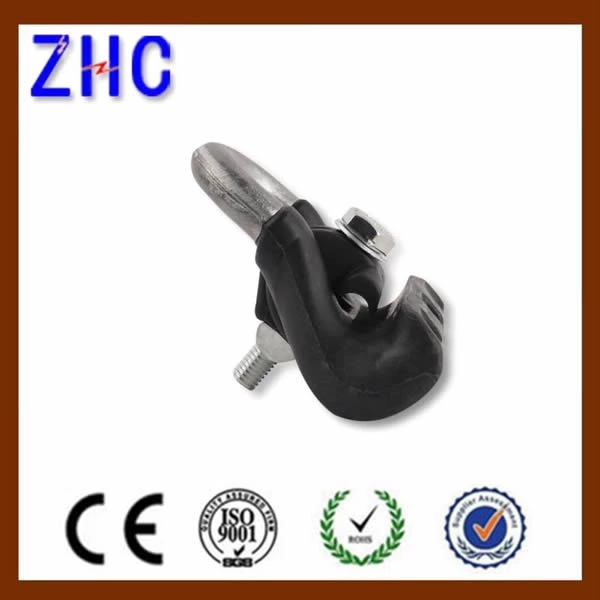

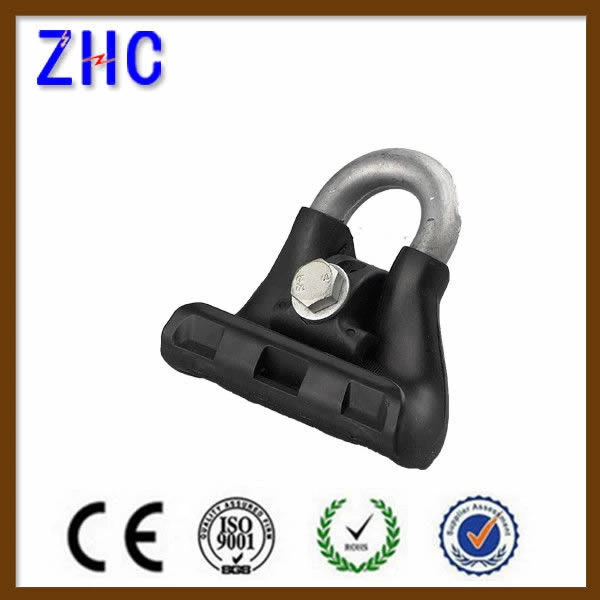

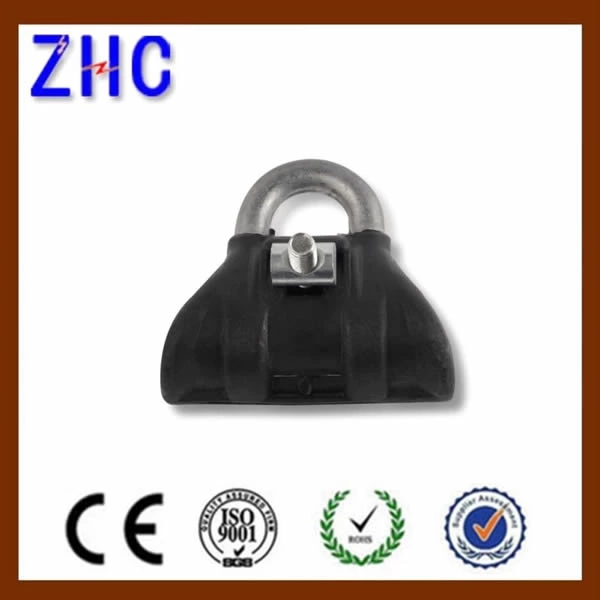

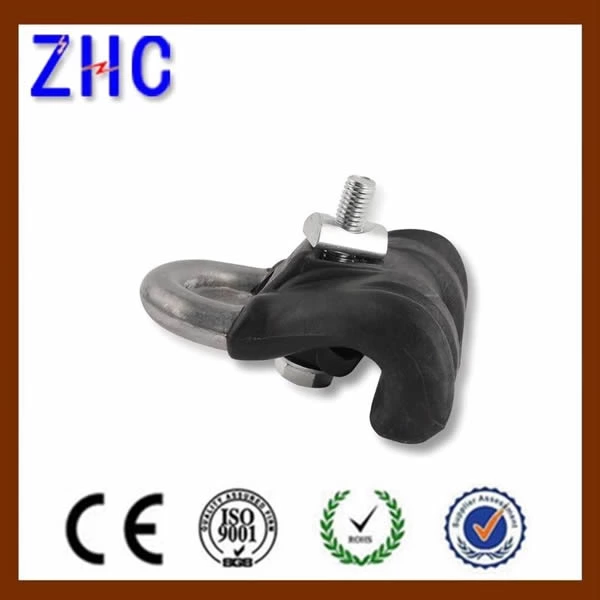

The assembly is made of the suspension clamp itself equipped with an adjustable grip device, the body is linked to the aluminium alloy die casted bracket by a movable link Suspension clamp and movable link are made of anti UV stabilized black thermoplastic fiber glass reinforced.

This assembly is ready to be installed on the pole using either one bolt M16 or 2stainless steel straps 20x0.7mm

Features & Benefits

Range taking 16-95 mm²

Delivered as one assembly

No tool needed for the installation thanks to the adjustable grip device

Equipped with a movable link which allows articulation between the clamp and the bracket

End stops on the bracket to ensure movement limitation of the clamp

Bracket is specially designed to install directly the pulley on it during LV ABC lines erection

All the components are not losable Perfomances

This suspension assembly is in line with the French standard NF C 33 040 and the new European standard EN 50483-3

Mechanical tests (breaking load of 12kN)

Slip tests on cables (no slippage below 300N)

Dielectric voltage test (4kV in air)

Environmental tests (climatic and corrosion)

Dielectric Voltage 4kv in Air High Resistant Thermoplastic Suspension Clamp Assembly for ABC Cable 16-95mm2

Item No. Cross section (mm2) Conductor(mm) Breaking load
ZC95 16-95 7.5-16.5 10KN
