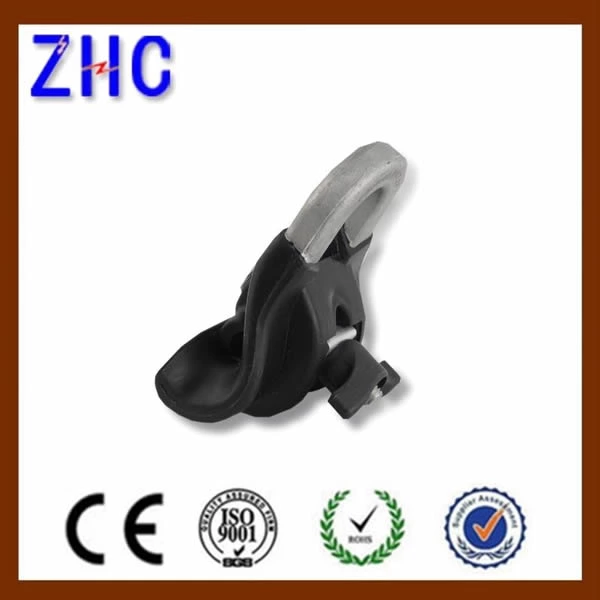

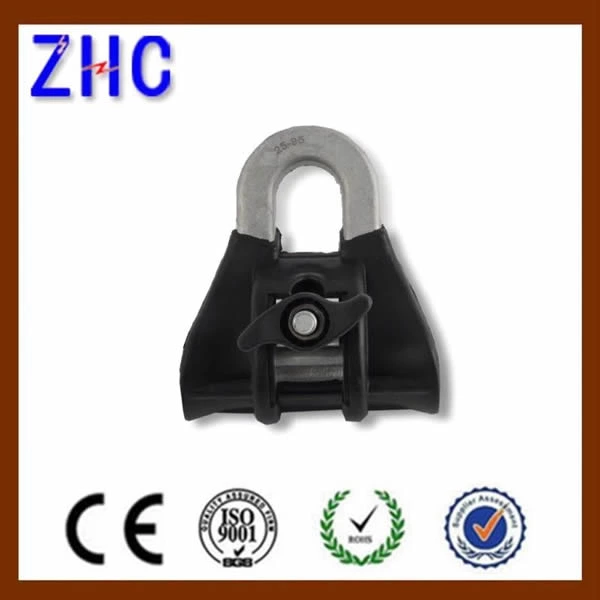

25-95mm2 ABC UV Black Thermoplastic Material Cable Suspension Clamp Assembly for LV Insulated Neutral Messenger

25-95mm2 ABC UV Black Thermoplastic Material Cable Suspension Clamp Assembly for LV Insulated Neutral Messenger

Application

These products are designed to hang the LV ABC insulated lines using an insulated neutral messenger

Description

The assembly is made of the suspension clamp itself equipped with an adjustable grip device, the body is linked to the aluminium alloy die casted bracket by a movable linkSuspension clamp and movable link are made of anti UV stabilized black thermoplastic fiber glass reinforced.

This assembly is ready to be installed on the pole using either one bolt M16 or 2stainless steel straps 20x0.7mm

Features & Benefits

Range taking 25-95 mm²

Delivered as one assembly

No tool needed for the installation thanks to the adjustable grip device

Equipped with a movable link which allows articulation between the clamp and the bracket

End stops on the bracket to ensure movement limitation of the clamp

Bracket is specially designed to install directly the pulley on it during LV ABC lines erection

All the components are not losable Perfomances

This suspension assembly is in line with the French standard NF C 33 040 and the new European standard EN 50483-3

Mechanical tests (breaking load of 12kN)

Slip tests on cables (no slippage below 300N)

Dielectric voltage test (4kV in air)

Environmental tests (climatic and corrosion)
