Pre-Insulated Connector

70mm2 Standard Pre-Insulated Sleeves for Insulated Overhead Line Aluminum Phase

Certification
CE
Model Number
MJPT70
Packaging Details
200pcs/ctn , 50x21x21cm , 15kgs
Supply Ability
100000PCS/Month
Material
Aluminum Alloy

70mm2 Standard Pre-Insulated Sleeves for Insulated Overhead Line Aluminum Phase Application: These Pre-Insulated Sleeves are used to link together LV insulated overhead lines. Descriptions: The sl

Contact Now

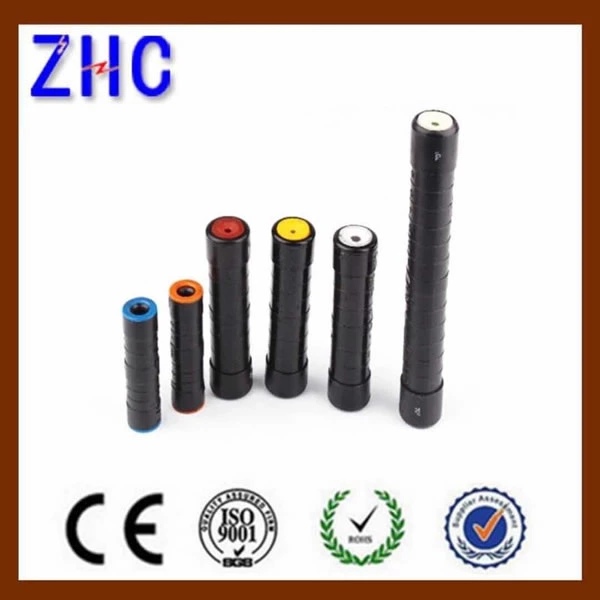

70mm2 Standard Pre-Insulated Sleeves for Insulated Overhead Line Aluminum Phase

Application:

These Pre-Insulated Sleeves are used to link together LV insulated overhead lines.

Descriptions:

The sleeve is composed of:

  • An aluminium (phase) or aluminium alloy (neutral) sleeve with a stop in the middle.
  • A black thermoplastic sealed with a flexible elastomer ring.
  • A neutral contact grease in the tube which improve the contact area and protect
  • The aluminium against oxydation.
  • The crimping is realized on the plastic part
  • According to the marks on the body of the sleeves.

Features

They are water resistant and pass the dieletric test of 6 kV in water.

They withstand:

  • 50% of the mechanical phase breaking load.
  • 100 % of the mechanical neutral messenger breaking load.
  • 80% of the conductor load in the self
  • Supporting version (M type Alus)
  • A color code permits to check easily
  • Test voltage 6 kV / 50 Hz / 1 min in water.
Type Cable Size(mm²) Plastic Sleeve Diameter(mm) Length
A B C L
MJPT 16/16 16 16 16 70.5
MJPT 25/25 25 25 16 70.5
MJPT 35/35 35 35 20 98.5
MJPT 50/50 50 50 20 98.5
MJPT 70/70 70 70 20 98.5
MJPT 95/95 95 95 20 98.5

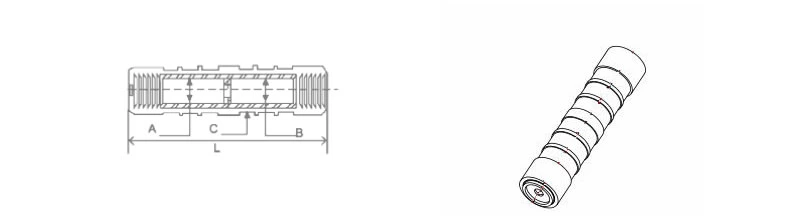

70mm2 Standard Pre-Insulated Sleeves for Insulated Overhead Line Aluminum Phase Dimensions
