Pole Fuse Switch Disconnector

630A 3P Three Phase Pole Mounted Fuse Switch Disconnector For NH fuse

Model Number
ZC630A 3P
Packaging Details
8pcs/Ctn, 52X36X35cm, 22KGS
Supply Ability

Contact Now

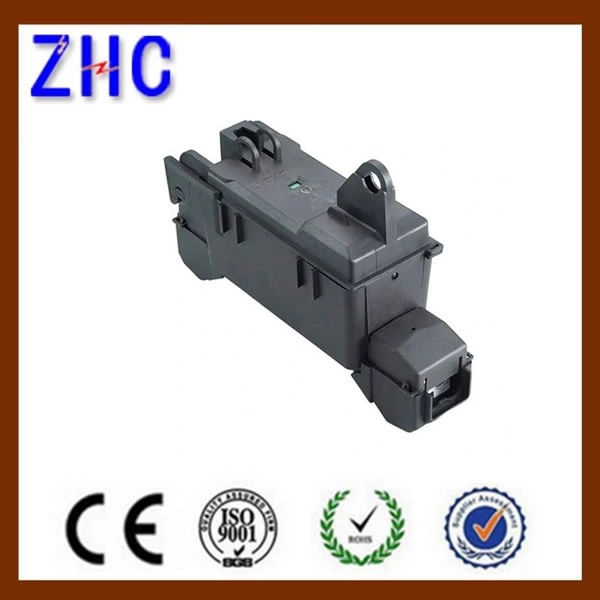

630A 3P Three  Phase Pole Mounted Fuse Switch Disconnector For NH fuse

Usage :

The basic function of 630A Fuse Switch Disconnector is to protect and disconnector a network during faults and is specially designed for on-load switch. The switch offers a reliable medium for disconnector & protection of fully insulated open wire network. The fuse switch is versatile and is ideally suited for mountion directly to poles, transformer & cross arms.


  1. Designed for full load switching with fuse links of disconnector blades upto a rated current.
  2. Mounting facility and unique modular design allowing one, two, three or more switches to be installed together to meet SP. TP or TPN system requirements.
  3. Fully insulated made from corrosion proof, impact resistant, weather & UV resistant glass fiber reinforced polymide compound with high gladd content suitable for consistent performance under adverse climatic conditions.
  4. The upper housing of the switch is hinged to the lower body and can be withdrawn by the insulated operation rod thereby enabling changing of fuse from ground level
  5. Flexibility of linking a series of flaps for simultaneous operation.
  6. The contacts, made up of ETP grade copper -duy plated are rigidly mounted in the housing independentof the terminal bolts. Single incoming & Double outgoing termination is provided in standard version.
  7. Electrical & Mechanical fuse indicators are provided to show status of blown fuse.
Body/ Carrier Material Polyamide
Rated Operating Current 630A
Rated Operating Voltage In 440 V 50Hz
Rated Operating Voltage ue 1000V
Rated Short Time Current ui 10KA rms for 0.5with 17Peak

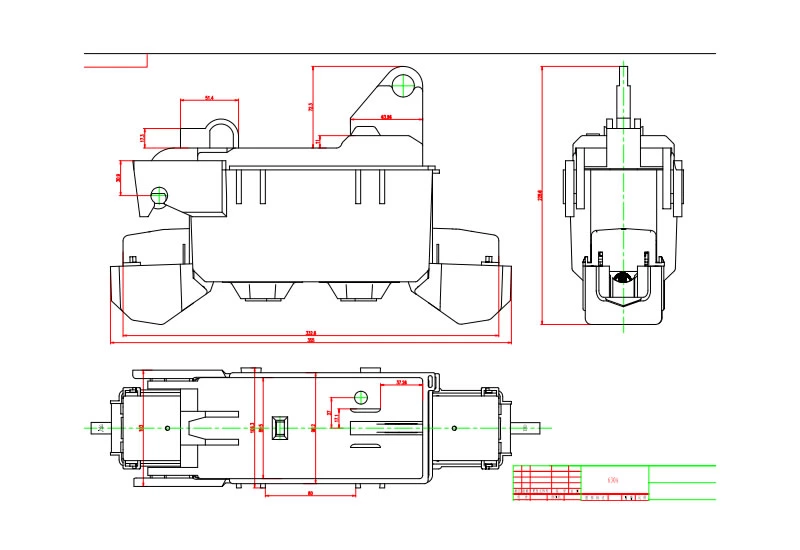

630A 3P Three  Phase Pole Mounted Fuse Switch Disconnector For NH fuse Dimensions
