Parallel Groove Clamp

CAPG Three Bolts Bimetallic Copper -Aluminium Parallel Groove Clamp For Conduct Cu 6-50mm2 AL 16-70 mm2

Certification
CE
Model Number
CAPG
Packaging Details
50pcs/ctn , 50x21x21cm , 15kgs
Supply Ability
100000PCS/Month
Material
Copper Aluminum
Bolt
Three Bolts

Contact Now

CAPG Three Bolts Bimetallic Copper -Aluminium Parallel Groove Clamp For Conduct Cu 6-50mm2 AL 16-70 mm2

Application:

The CAPG parallel groove clamps are designed to connect aluminium conductors and copper conductors.

Advantages:

  1. Advanced forging technology enhances the mechanical strength of the clamp.
  2. Special designed screw hole and arc shape of the body allow clamp to adjusts to different cable size on each side.
  3. Materials of bolt and nut are optional depend on customer request. Options including Hot-dip galvanized steel and stainless steel.
  4. Pressure pad is applied to achieve uniform pressure along the clamp.

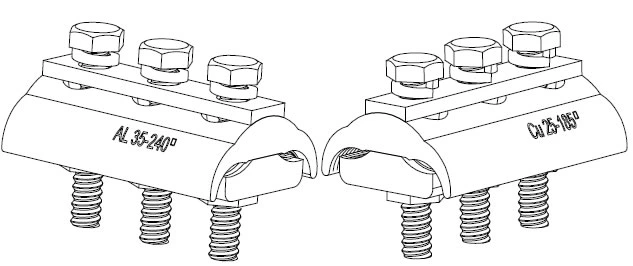

CAPG-C Series

CAPG-C Series

Item No. Size(mm²) Bolt
CAPG-C1 Cu6-50 Al16-70 Tri-bolt
CAPG-C2 Cu10-95 Al25-150 Tri-bolt
CAPG-C3 Cu25-185 Al35-240 Tri-bolt
CAPG-C4 Cu35-240 Al35-300 Tri-bolt
