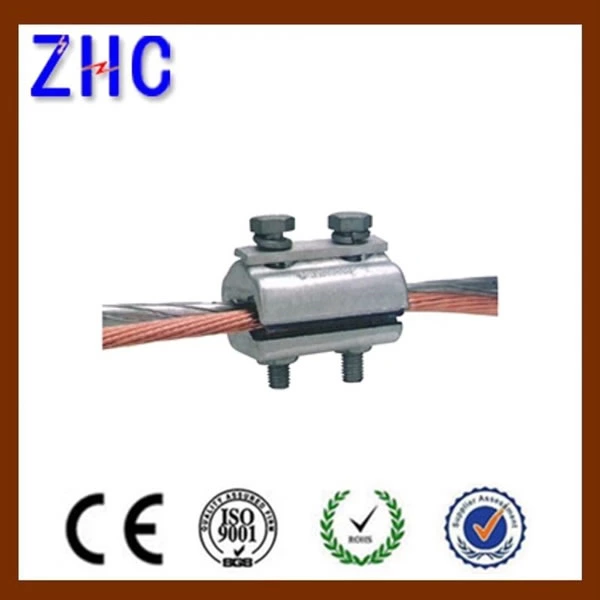

CAPG Single Bolt Bimetallic Copper -Aluminium Parallel Groove Clamp For Conductor Cu 6-50mm2 Al 16-70mm2
- Certification
- CE
- Model Number
- CAPG-A
- Packaging Details
- 50pcs/ctn , 50x21x21cm , 15kgs
- Supply Ability
- 100000PCS/Month
- Material
- Copper Aluminum
- Bolt
- Single Bolt
CAPG Single Bolt Bimetallic Copper -Aluminium Parallel Groove Clamp For Conductor Cu 6-50mm2 Al 16-70mm2
Application:
The CAPG parallel groove clamps are designed to connect aluminium conductors and copper conductors.
Advantages:
- Advanced forging technology enhances the mechanical strength of the clamp.
- Special designed screw hole and arc shape of the body allow clamp to adjusts to different cable size on each side.
- Materials of bolt and nut are optional depend on customer request. Options including Hot-dip galvanized steel and stainless steel.
- Pressure pad is applied to achieve uniform pressure along the clamp.
CAPG-A Series
| Item No. | Size(mm²) | Bolt |
| CAPG-A1 | Cu 6-50 Al16-70 | Single bolt |
| CAPG-A2 | Cu 10-95 Al25-150 | Single bolt |
