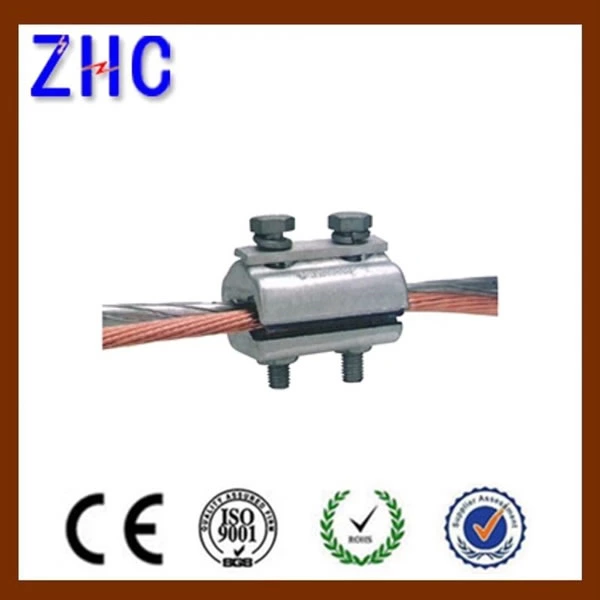

CAPG Series Bimetallic Copper -Aluminium Parallel Groove Clamp For Electrical Powerfittings
- Certification:
- CE
- Model Number:
- CAPG
- Packaging Details:
- 50pcs/ctn , 50x21x21cm , 15kgs
- Supply Ability:
- 100000PCS/Month
- Material:
- Copper Aluminum
- Bolt:
- Single Bolt , Two Bolts, Three Bolts
CAPG Series Bimetallic Copper -Aluminium Parallel Groove Clamp For Electrical Powerfittings
Application:
The CAPG parallel groove clamps are designed to connect aluminium conductors and copper conductors.
Advantages:
- Advanced forging technology enhances the mechanical strength of the clamp.
- Special designed screw hole and arc shape of the body allow clamp to adjusts to different cable size on each side.
- Materials of bolt and nut are optional depend on customer request. Options including Hot-dip galvanized steel and stainless steel.
- Pressure pad is applied to achieve uniform pressure along the clamp.

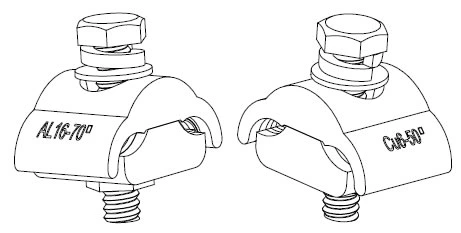

CAPG-A Series
| Item No. | Size(mm²) | Bolt |
| CAPG-A1 | Cu 6-50 Al16-70 | Single bolt |
| CAPG-A2 | Cu 10-95 Al25-150 | Single bolt |
CAPG-B Series
| Item No. | Size(mm²) | Bolt |
| CAPG-B1 | Cu6-50 Al16-70 | Double bolt |
| CAPG-B2 | Cu10-95 Al25-150 | Double bolt |
| CAPG-B3 | Cu25-185 Al35-240 | Double bolt |
CAPG-C Series
| Item No. | Size(mm²) | Bolt |
| CAPG-C1 | Cu6-50 Al16-70 | Tri-bolt |
| CAPG-C2 | Cu10-95 Al25-150 | Tri-bolt |
| CAPG-C3 | Cu25-185 Al35-240 | Tri-bolt |
| CAPG-C4 | Cu35-240 Al35-300 | Tri-bolt |
