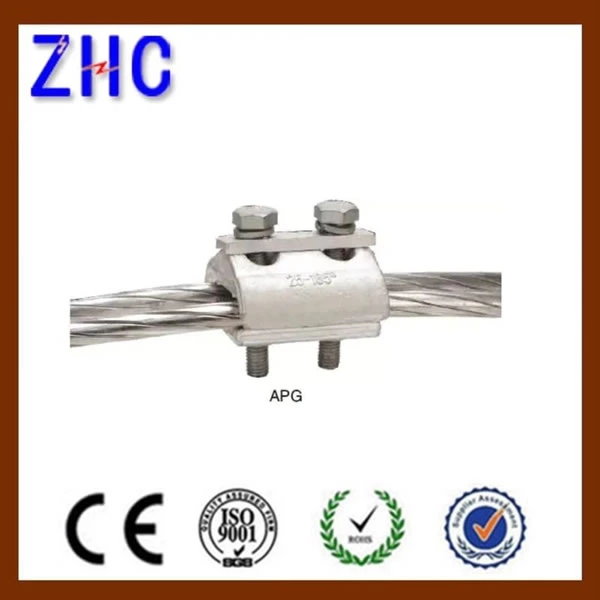

APG Bimetallic Parallel Groove Connector Aluminum PG clamp For Electrical Powerfittings
- Certification:
- CE
- Model Number:
- APG
- Packaging Details:
- 50pcs/ctn , 50x21x21cm , 15kgs
- Supply Ability:
- 100000PCS/Month
- Material:
- Aluminum Alloy
- Bolt:
- Single Bolt , Two Bolts, Three Bolts
APG Bimetallic Parallel Groove Connector Aluminum PG clamp For Electrical Powerfittings
Application:
The APG parallel groove clamps are designed to connect two aluminium conductors.
Advantages:
- Advanced forging technology enhances the mechanical strength of the clamp.
- Special designed screw hole and arc shape of the body allow clamp to adjusts to different cable size on each side.
- Clamp body is made of aluminium with excellent electrical conductivity.
- Gross-grooved clamp channels enhance both mechanical pullout strength and electrical conductivity.
- Materials of bolt and nut are optional depend on customer request. Options including Hot-dip galvanized steel and Stainless steel
- Pressure pad is applied to achieve uniform pressure along the clamp.
APG-A Series
| Item No. | Size(mm²) | Bolt |
| APG-A1 | AL16-70 | Single bolt |
| APG-A2 | AL16-150 | Single bolt |
APG-B Series
| Item No. | Size(mm²) | Bolt |
| APG-B1 | AL 6-35 | Double bolt |
| APG-B2 | AL16-70 | Double bolt |
| APG-B3 | AL16-150 | Double bolt |
| APG-B4 | AL25-240 | Double bolt |
APG-C Series
| Item No. | Size(mm²) | Bolt |
| APG-C1 | AL16-70 | Tri-bolt |
| APG-C2 | AL16-150 | Tri-bolt |
| APG-C3 | AL25-240 | Tri-bolt |
| APG-C4 | AL35-300 | Tri-bolt |
