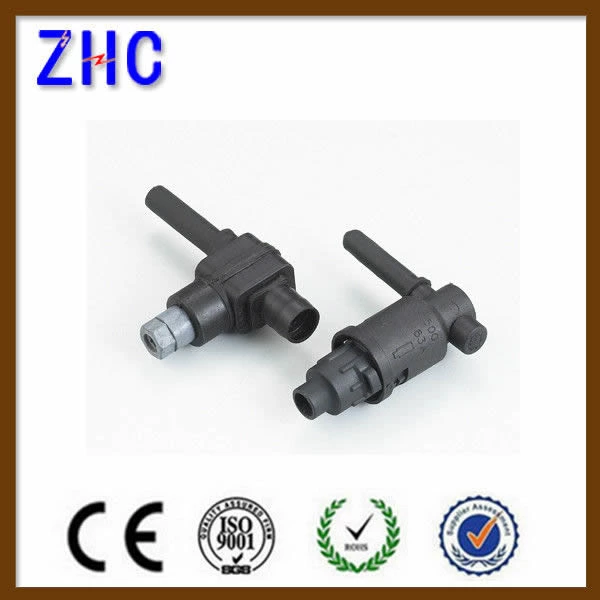

Waterproof Tin Plated Aluminum Teeth Corrosion Resistant Aluminium Alloy Multitap Insulated Piercing Connector ZCP-1
- Certification
- CE
- Model Number
- ZCP-1
- Packaging Details
- 150PCS/CTN, 54X28X32CM, 24KGS
- Supply Ability
- 300000PCS/Month
- Material
- Anti UV Thermoplastic Fibre Glass Reinforced, Aluminum Alloy
- Tap Line
- 2.5-95mm2
- IEC Standard
- NFC33-041
- Suitable Cable Use
- Aerial Bundle Cable
- Main Line
- 25-95mm2
- Tightening Torque
- 18NM
- Operating Temperature
- -55degree Up To + 55degree
Waterproof Tin Plated Aluminum Teeth Corrosion Resistant Aluminium Alloy Multitap Insulated Piercing Connector ZCP-1 Application A broad Usage in the low voltage insuation line, leading the branch c
Waterproof Tin Plated Aluminum Teeth Corrosion Resistant Aluminium Alloy Multitap Insulated Piercing Connector ZCP-1
Application
A broad Usage in the low voltage insuation line, leading the branch connection to the main conductor.
T- connection of low voltage insulation wire service and cable branch connection for building distrubtion system. The material for the inside body is high strenghth aluminum alloy, and the insulation cover is used Anti UV black PVC. The connectors with specially desinged contact teeth, are suitable for the connection of aluminum .
Put the main conductor and branch conductr parallel into the teeth grooves of the clamp, tighten the bolts, pierce the insulation of two conductors to make the conductors connect.
Features
- These connectors withstand the tests described in the French standard
- NFC 33 020 and British standard EATS 43-14.
- Resistant to 6 kV 1 minute after 30 minutes immersion in water.
- All components are secured.
- The metallic shear head is fixed and allows a reliable installation process thanks to its design.
- The flexible end cap permits to check the correct insertion of the conductors.
| Item No. | Main wire section | Branch wire section |
| ZCP-1 | Al 25-95 | Al 2.5-95 |
| ZCP-2 | 35 | 2.5-35 |
| ZCP-3 | 70 | 2X(6-35) |
