Insulated Piercing Connector

Aerial Powerfitting Insulation Piercing Cable Connector For ABC Cable Size 150 square meter

Certification
CE
Model Number
JBC-2
Packaging Details
150PCS/CTN, 54X31X22CM, 23KGS
Supply Ability
300000PCS/Month
Material
Anti UV Thermoplastic Fibre Glass Reinforced
IEC Standard
NFC33-041
Suitable Cable Use
Aerial Bundle Cable
Main Line
35-150mm2
Tightening Torque
18NM
Operating Temperature
-55degree Up To + 55degree
Bolt
1

Aerial Powerfitting Insulation Piercing Cable Connector For ABC Cable Size 150 square meter Application This insulation piercing connector is suitable for all types of LV ABC conductors This connec

Contact Now

Aerial Powerfitting Insulation Piercing Cable Connector For ABC Cable Size 150 square meter

Application

This insulation piercing connector is suitable for all types of LV ABC conductors

This connector has been designed for service connections in LV ABC lines.

Ease of installation has been combined with excellent mechanical, electrical and environmental characteristics to provide a connector capable of terminating Aluminium or Copper stranded conductors.

Description

Aluminium alloy blades imbedded in moulded plastic and surrounded with a sealing compound insure electrical contact in LV overhead distribution networks. A single torque control nut draws the two parts of the connector together and shears off when the teeth have pierced the insulation and made contact with the conductor strands.

Performances

This connector is fully in line with the French standard NFC 33 020 and the new European standard EN 50483 (connector class1):

  • Mechanical tests on connector
  • Mechanical test on cables
  • Voltage test under water (6 kV for 1 min)
  • Electrical ageing test
  • Environmental test (climatic and corrosion)

Features and benefits

  • Range taking - Equipped with shear head to ensure a reliable tightening torque
  • Accepts copper conductor - Operating temperature -55°C to +55°C
  • Waterproof - Installation temperature -20°C to +55°C
  • Captive end flexible end caps - Can be installed on energized main if tap is not under load
  • All the components are un-loosable It is not recommended to re-use IPC when removed.

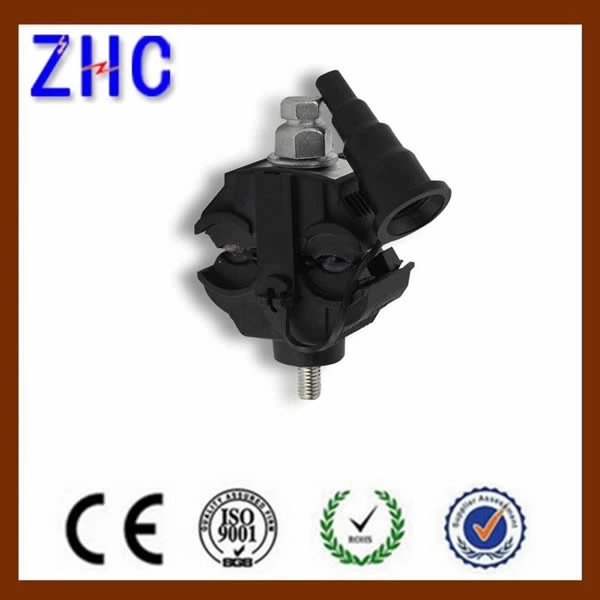

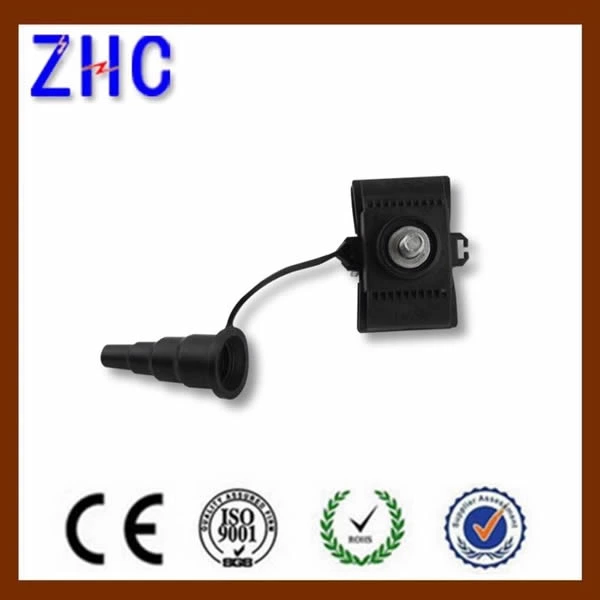

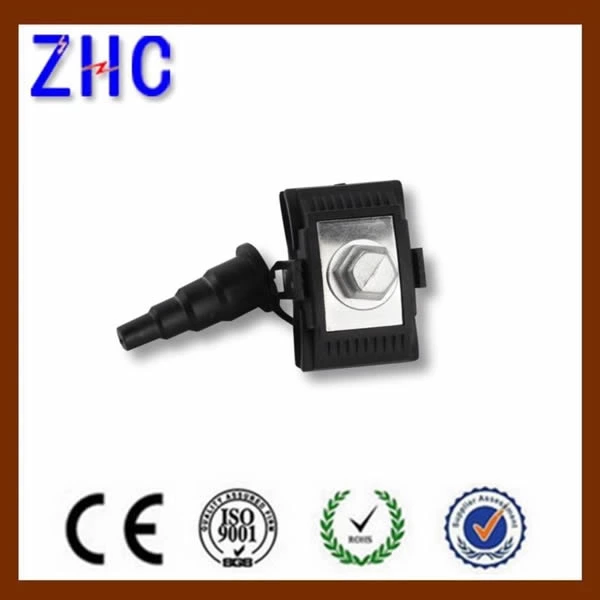

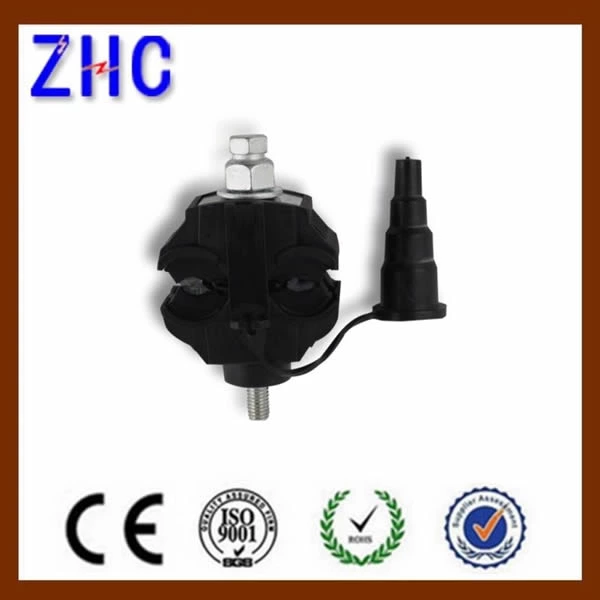

150 square meters of ABC cable overhead insulation puncture cable connector Other product pictures1150 square meters of ABC cable overhead insulation puncture cable connector Other product pictures2

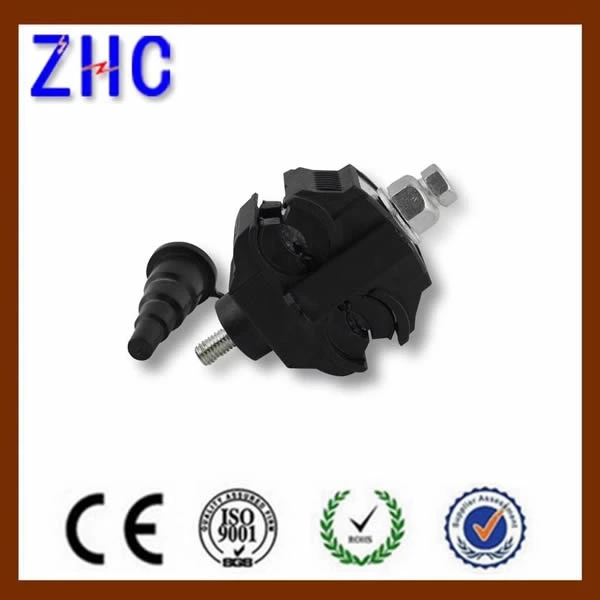

150 square meters of ABC cable overhead insulation puncture cable connector Other product pictures3150 square meters of ABC cable overhead insulation puncture cable connector Other product pictures4

Item No. Main wire section Branch wire section Bolt
JBC-0 25-70 6-35 1
JBC-1 35-70 6-35 1
JBC-2 35-150 35-150 1
JBC-3 50-240 50-150 2

150 square meters of ABC cable overhead insulation puncture cable connector Other product pictures5
