Insulated Piercing Connector

6KV Unerswater Test Top Quality Full Sealed high weatherproof UV Black Thermoplastic Insulated Piercing Connector

Certification
CE
Model Number
CBS /CT95
Packaging Details
200PCS/CTN, 54X28X32CM, 28KGS
Supply Ability
300000PCS/Month
Material
Anti UV Thermoplastic Fibre Glass Reinforced
Tap Line
2.5-35mm2
IEC Standard
NFC33-041
Suitable Cable Use
Aerial Bundle Cable
Main Line
16-95mm2
Tightening Torque
18NM
Operating Temperature
-55degree Up To + 55degree
Bolt
1
Contact Now
6KV Unerswater Test Top Quality Full Sealed high weatherproof UV Black Thermoplastic Insulated Piercing Connector

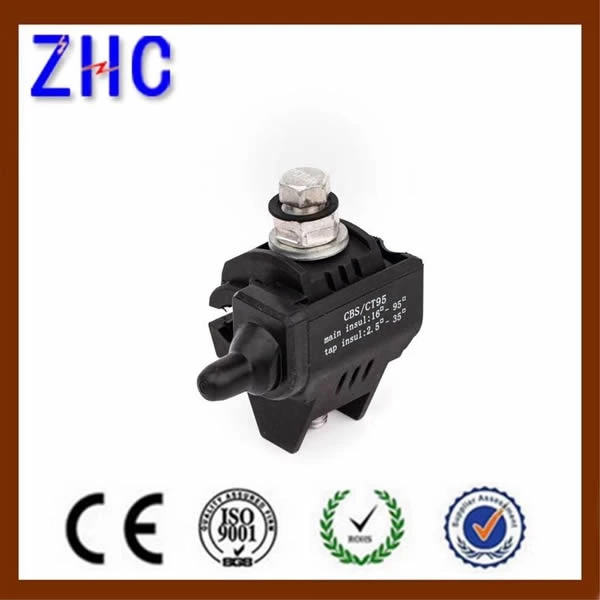

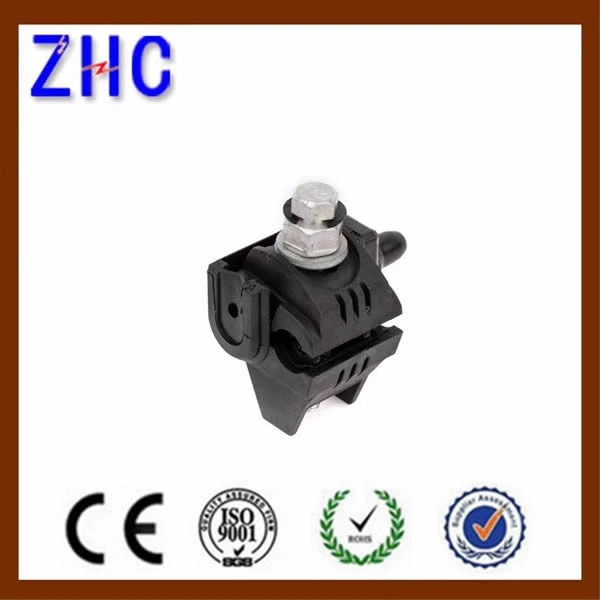

6KV Unerswater Test Top Quality Full Sealed high weatherproof UV Black Thermoplastic Insulated Piercing Connector1 6KV Unerswater Test Top Quality Full Sealed high weatherproof UV Black Thermoplastic Insulated Piercing Connector2 6KV Unerswater Test Top Quality Full Sealed high weatherproof UV Black Thermoplastic Insulated Piercing Connector3

6KV Unerswater Test Top Quality Full Sealed high weatherproof UV Black Thermoplastic Insulated Piercing Connector

Application

This insulation piercing connector is suitable for all types of LV ABC conductors

This connector has been designed for service connections in LV ABC lines.

Ease of installation has been combined with excellent mechanical, electrical and environmental characteristics to provide a connector capable of terminating Aluminium or Copper stranded conductors.

Description

Aluminium alloy blades imbedded in moulded plastic and surrounded with a sealing compound insure electrical contact in LV overhead distribution networks. A single torque control nut draws the two parts of the connector together and shears off when the teeth have pierced the insulation and made contact with the conductor strands.

Performances

This connector is fully in line with the French standard NFC 33 020 and the new European standard EN 50483 (connector class1):

  • Mechanical tests on connector
  • Mechanical test on cables
  • Voltage test under water (6 kV for 1 min)
  • Electrical ageing test
  • Environmental test (climatic and corrosion)

Features and benefits

  • Range taking - Equipped with shear head to ensure a reliable tightening torque
  • Accepts copper conductor - Operating temperature -55°C to +55°C
  • Waterproof - Installation temperature -20°C to +55°C
  • Captive end flexible end caps - Can be installed on energized main if tap is not under load
  • All the components are un-loosable It is not recommended to re-use IPC when removed.
Item No. Main wire section Branch wire section Bolt
CBS/CT95 16-95mm2 2.5-35mm2 1
