Insulated Piercing Connector

35-95mm2 2P 3P CT70 Insulated Piercing Connector with Rubber Cover Insulation

Certification
NFC
Model Number
CT35-70
MOQ
500
Packaging Details
180PCS/CTN
Supply Ability
500000/Month
Material
Aluminum Clamp Rubber cover
Tap Line
2×2.5-35mm2
IEC Standard
IEC
Suitable Cable Use
ABC cable
Main Line
35-70mm2
Bolt
2p 3p
Color
black
Contact Now
35-95mm2 2P 3P CT70  Insulated Piercing Connector with Rubber Cover Insulation
overhead fitting 70mm2 IPC 70mm2 insulated piercing connector

35-95mm2 2P 3P CT35-70  Insulated Piercing Connector with Rubber Cover Insulation

Application:
1. The CT35-70 insulation piercing connectors are applicable for all types of LV-ABC.
2. Had passed 6KV test under water for 1 Min.

Feature:
1. Simple installation, small contact resistance and low temperaturerise of the clamp. The body materials are UV-resistant.
2. Its self-seam frame is wet proof, water proof, and anti-corrosive,which can prolong the using life of insulated lead and connector.
3. Standard: EN 50483-4, NFC 33-020, NFC 33-004

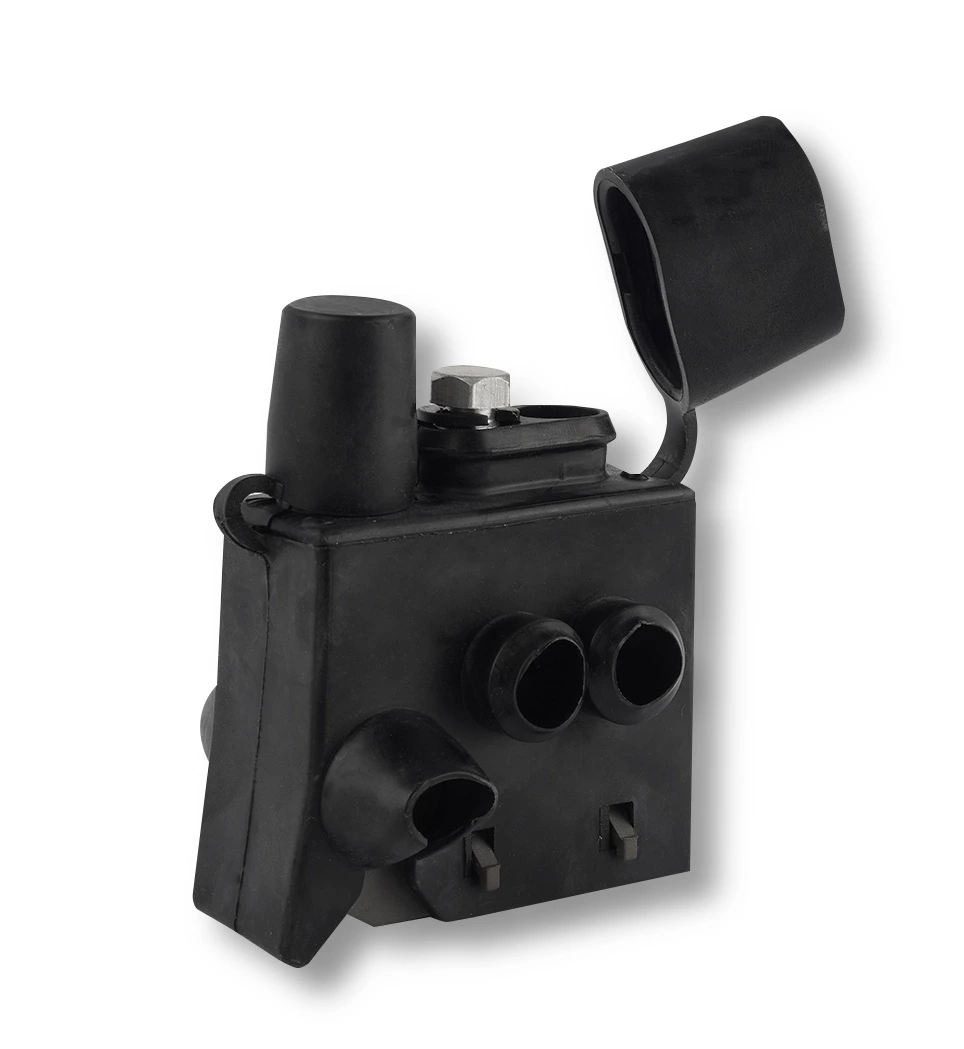

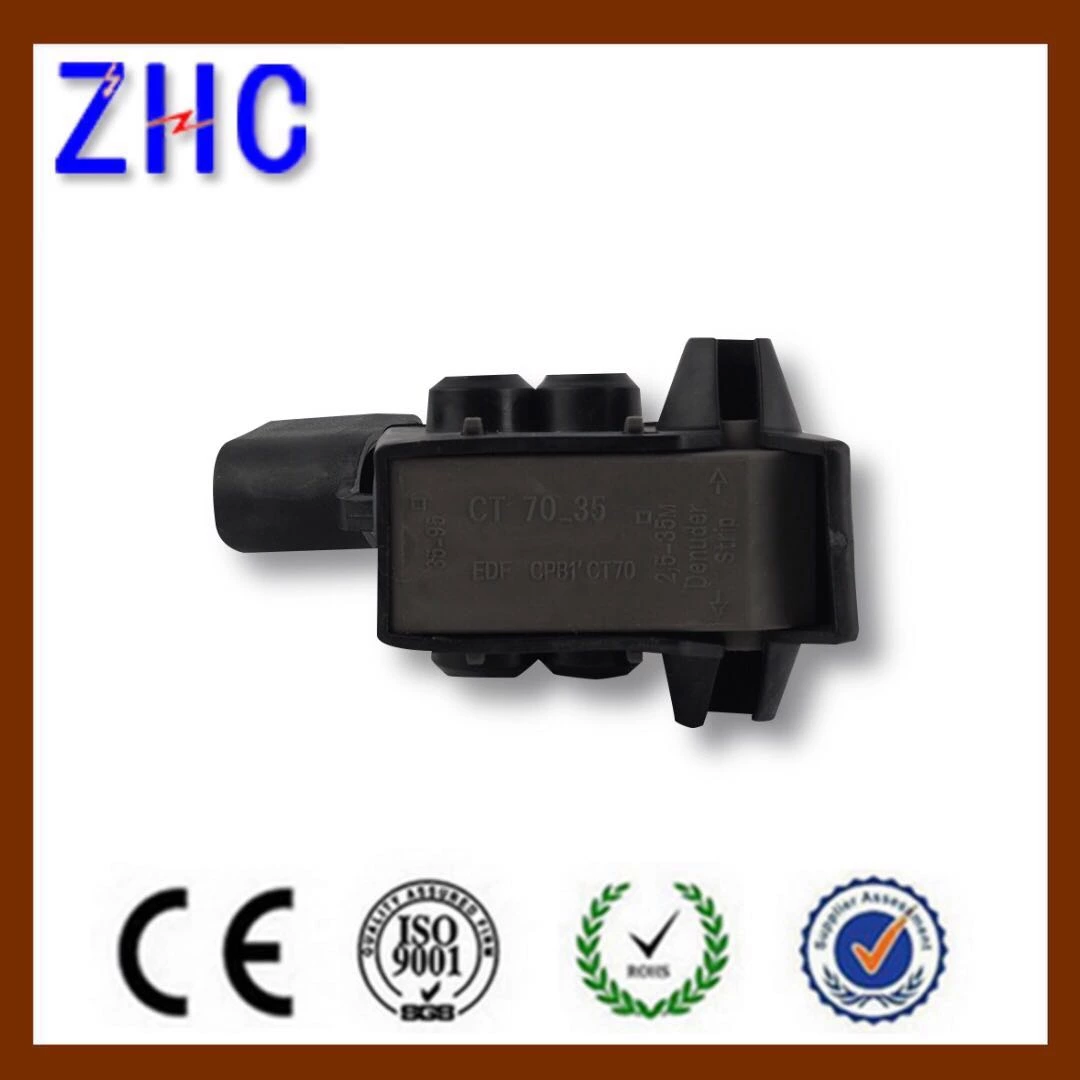

70mm2 insulated piercing connector

Item No. Main wire section Branch wire section
CT35=70 35-95 2×2.5-35
