Insulated Piercing Connector

1KVA LV Voltage Electrical Aerial Bundle Cable Used insulation piercing connector IPC3.2 with Plastic Shear Screw

Certification
CE
Model Number
IPC3. 2
Packaging Details
200PCS/CTN, 54X28X32CM, 24KGS
Supply Ability
300000PCS/Month
Material
Anti UV Thermoplastic Fibre Glass Reinforced
Tap Line
75-90mm2
IEC Standard
NFC33-041
Suitable Cable Use
Aerial Bundle Cable
Main Line
75-90mm2
Tightening Torque
15NM
Operating Temperature
-55degree Up To + 55degree
Bolt
1
Contact Now
1KVA LV Voltage Electrical Aerial Bundle Cable Used insulation piercing connector IPC3.2 with Plastic Shear Screw
1KVA LV Voltage Electrical Aerial Bundle Cable Used insulation piercing connector IPC3.2 with Plastic Shear Screw1 1KVA LV Voltage Electrical Aerial Bundle Cable Used insulation piercing connector IPC3.2 with Plastic Shear Screw2 1KVA LV Voltage Electrical Aerial Bundle Cable Used insulation piercing connector IPC3.2 with Plastic Shear Screw3 1KVA LV Voltage Electrical Aerial Bundle Cable Used insulation piercing connector IPC3.2 with Plastic Shear Screw4

1KVA LV Voltage Electrical Aerial Bundle Cable Used insulation piercing connector IPC3.2 with Plastic Shear Screw

Application

This insulation piercing connector is suitable for all types of LV ABC conductors

This connector has been designed for service connections in LV ABC lines.

Ease of installation has been combined with excellent mechanical, electrical and environmental characteristics to provide a connector capable of terminating Aluminium or Copper stranded conductors.

Description

Aluminium alloy blades imbedded in moulded plastic and surrounded with a sealing compound insure electrical contact in LV overhead distribution networks. A single torque control nut draws the two parts of the connector together and shears off when the teeth have pierced the insulation and made contact with theconductor strands.

Performances

This connector is fully in line with the French standard NFC 33 020 and the new European standard EN 50483 (connector class1):

  • Mechanical tests on connector
  • Mechanical test on cables
  • Voltage test under water (6 kV for 1 min)
  • Electrical ageing test
  • Environmental test (climatic and corrosion)

Features and benefits

  • Range taking - Equipped with shear head to ensure a reliable tightening torque
  • Accepts copper conductor - Operating temperature -55°C to +55°C
  • Waterproof - Installation temperature -20°C to +55°C
  • Captive end flexible end caps - Can be installed on energized main if tap is not under load
  • All the components are un-loosable It is not recommended to re-use IPC when removed.

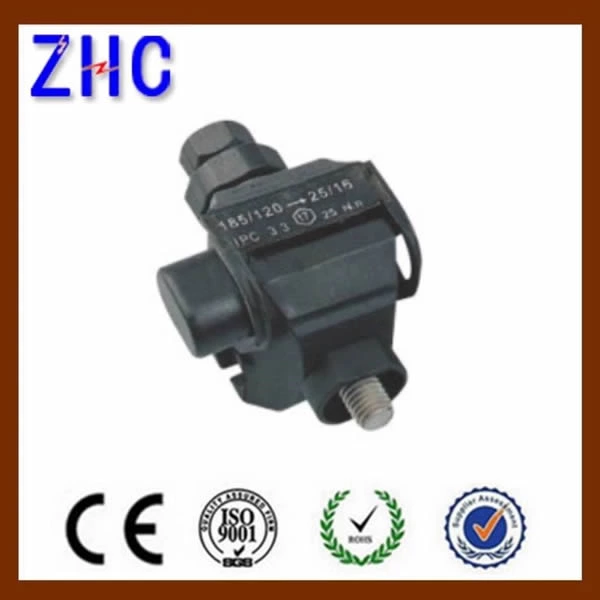

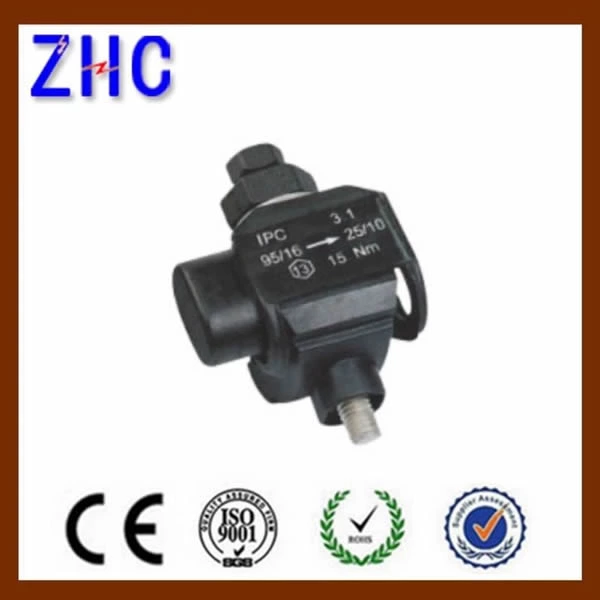

1KVA low-voltage low-voltage aviation overhead cable insulation puncture connector IPC3.2, with plastic shear screw Other product pictures1

Item No. Main wire section Branch wire section Bolt
IPC 3.1 16-95mm2 10-25mm2 1
IPC 3.2 70-95mm2 70-95mm2 1
IPC 3.3 120-185mm2 16-25mm2 1
IPC3.4 70-185mm2 70-185mm2 2

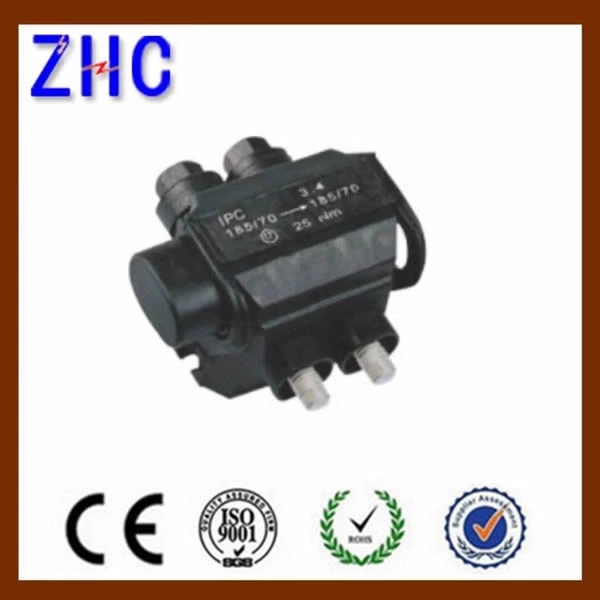

 1KVA low-voltage low-voltage aviation overhead cable insulation puncture connector IPC3.2, with plastic shear screw Other product pictures2
