Insulated Piercing Connector

1kV Anti UV Thermoplastic Aerial Powerfitting Overhead Line Clamp for ABC Cable (JBC-1)

Certification
CE
Model Number
JBC-1
Packaging Details
2000PCS/CTN, 54X31X22CM, 23KGS
Supply Ability
300000PCS/Month
Material
Anti UV Thermoplastic Fibre Glass Reinforced
IEC Standard
NFC33-041
Suitable Cable Use
Aerial Bundle Cable
Main Line
35-70mm2
Tightening Torque
7NM
Operating Temperature
-55degree Up To + 55degree
Bolt
1

1kV Anti UV Thermoplastic Aerial Powerfitting Overhead Line Clamp for ABC Cable (JBC-1) Application This insulation piercing connector is suitable for all types of LV ABC conductors This connector

Contact Now

1kV Anti UV Thermoplastic Aerial Powerfitting Overhead Line Clamp for ABC Cable (JBC-1)

Application

This insulation piercing connector is suitable for all types of LV ABC conductors

This connector has been designed for service connections in LV ABC lines.

Ease of installation has been combined with excellent mechanical, electrical and environmental characteristics to provide a connector capable of terminating Aluminium or Copper stranded conductors.

Description

Aluminium alloy blades imbedded in moulded plastic and surrounded with a sealing compound insure electrical contact in LV overhead distribution networks. A single torque control nut draws the two parts of the connector together and shears off when the teeth have pierced the insulation and made contact with the conductor strands.

Performances

This connector is fully in line with the French standard NFC 33 020 and the new European standard EN 50483 (connector class1):

  • Mechanical tests on connector
  • Mechanical test on cables
  • Voltage test under water (6 kV for 1 min)
  • Electrical ageing test
  • Environmental test (climatic and corrosion)

Features and benefits

  • Range taking - Equipped with shear head to ensure a reliable tightening torque
  • Accepts copper conductor - Operating temperature -55°C to +55°C
  • Waterproof - Installation temperature -20°C to +55°C
  • Captive end flexible end caps - Can be installed on energized main if tap is not under load
  • All the components are un-loosable It is not recommended to re-use IPC when removed.

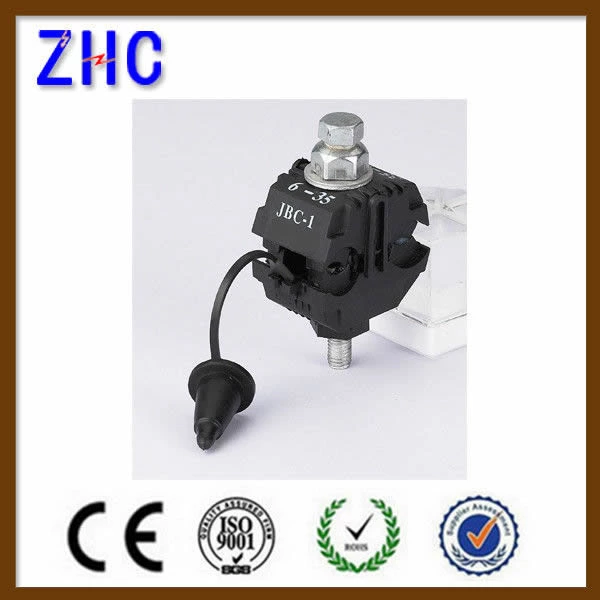

1kV UV Resistant Thermoplastic Aviation Power Overhead Overhead Clamp for ABC Cable (JBC-1) Other product pictures11kV UV Resistant Thermoplastic Aviation Power Overhead Overhead Clamp for ABC Cable (JBC-1) Other product pictures2

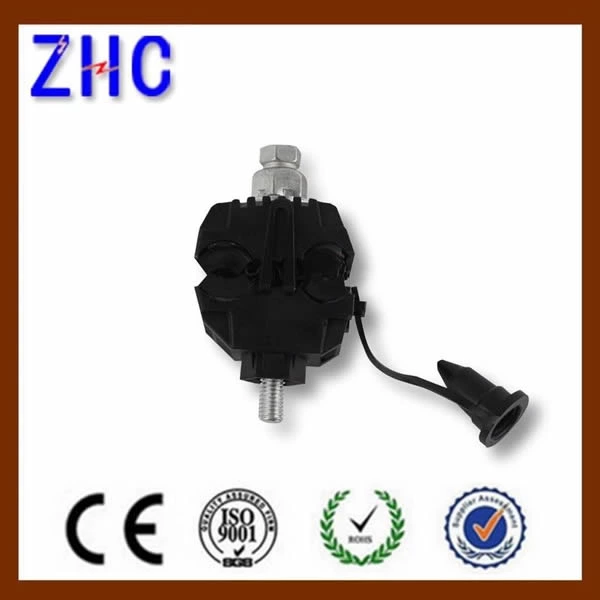

1kV UV Resistant Thermoplastic Aviation Power Overhead Overhead Clamp for ABC Cable (JBC-1) Other product pictures31kV UV Resistant Thermoplastic Aviation Power Overhead Overhead Clamp for ABC Cable (JBC-1) Other product pictures4

Item No. Main wire section Branch wire section Bolt
JBC-0 25-70 6-35 1
JBC-1 35-70 6-35 1
JBC-2 35-150 35-150 1
JBC-3 50-240 50-150 2

1kV UV Resistant Thermoplastic Aviation Power Overhead Overhead Clamp for ABC Cable (JBC-1) Other product pictures5
