Heavy Duty Connector

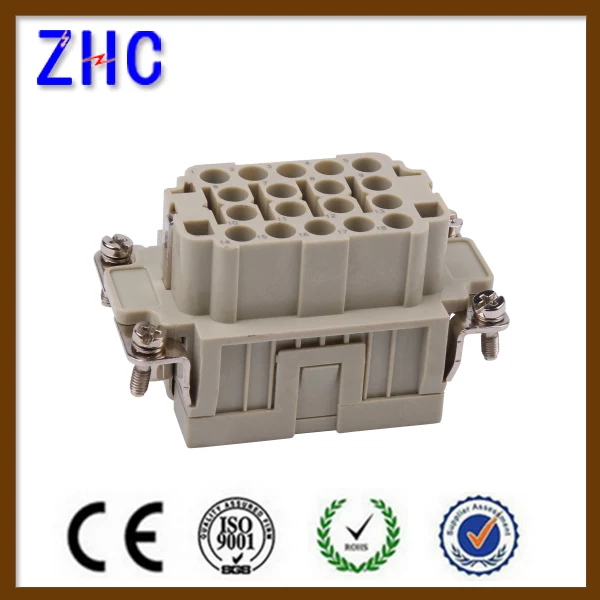

HEE018F IP67 500V 18P 16A Female Insert Heavy Duty Connector With Wire gauge 0.14-4mm2 AWG26-12

Certification
CE ROHS
Model Number
HEE018F
MOQ
50
Packaging Details
100PCS/CTN
Supply Ability
300000PCS
Material
Polycarbonate, copper alloy , surface hard-silver plated
Tightening Torque
0.5Nm
Operating Temperature
-40℃...+125℃
Voltage
500V
Type
Insert
Gender
Female
Wire
0.14-4mm2 AWG26-12
Number of Contact
18P
Flame Resistant Degree
V0
Pollution degree
3
IP degree
IP67
Rated Impulse voltage
6KV

Contact Now

Heavy duty connector

HEE018F  IP67 500V 18P 16A Female  Insert Heavy Duty Connector  With Wire gauge 0.14-4mm2  AWG26-12

Usage

1.Heavy duty connectors are specifically designed for applications in extremely rough environments.Their modular design makes the distribution of power and signals simple.

2.They are used wherever there is a need foe a secure, simple and timesaving assembly of machinery and facilities. The connector housings are made of diecast aluminum and offer excellent protection against dirt, moisture and mechanical stress.Special modular connectors make it posslble to integrate signals, power supply,pneumatics, and data connections into a single connector.

3.The connector's housing, sealing and locking mechanism pcotect the connection from external influence such as mechanical shocks, foreign bodies, humidity, dust, water, or other fluides such as cleaning and cooling agents, oils, ect.

3P heavy duty connector

Products Details

Heavy duty connector
