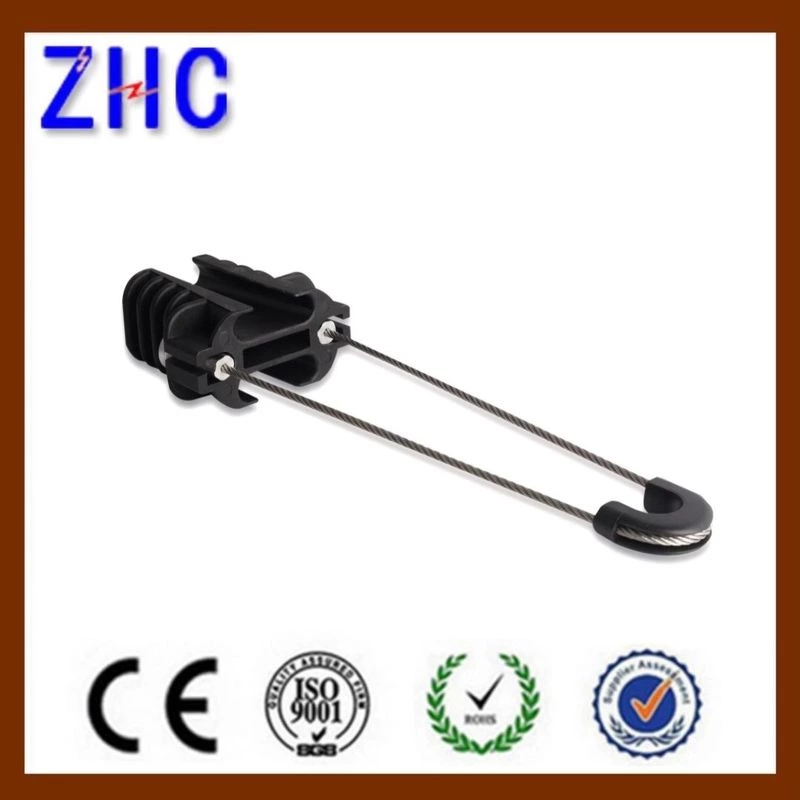

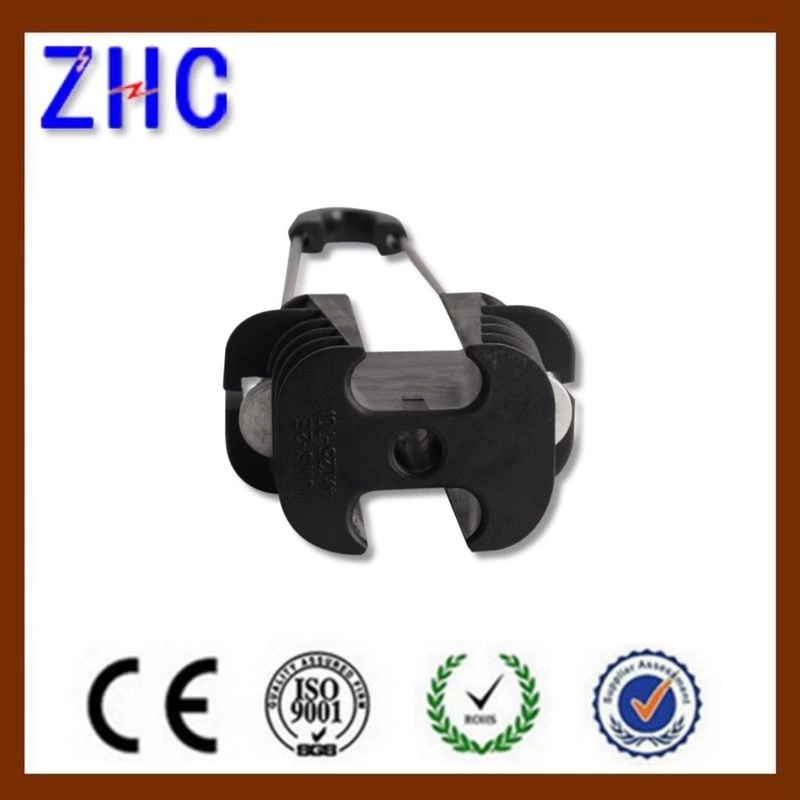

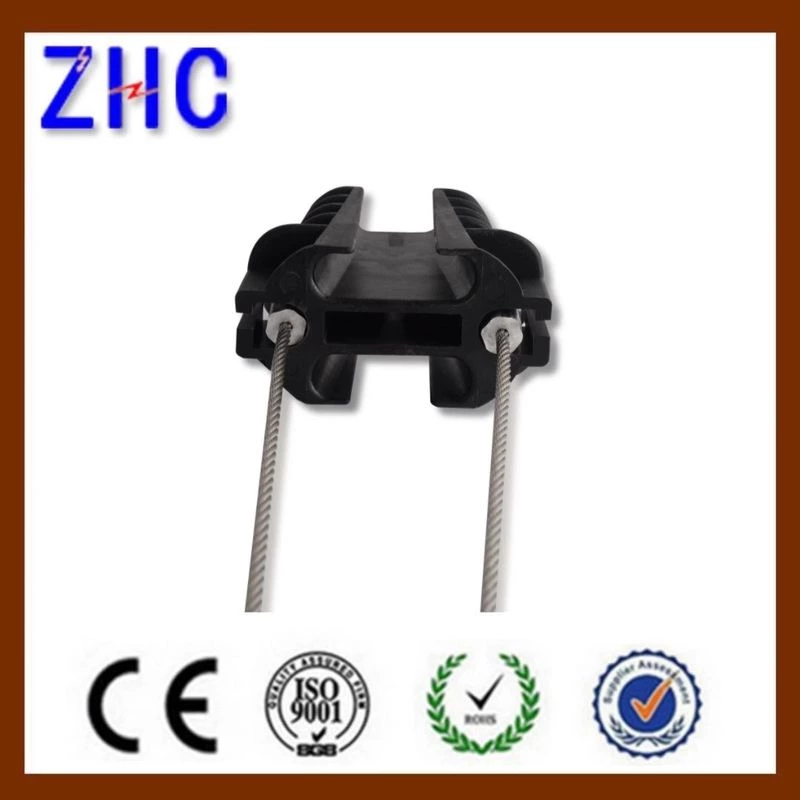

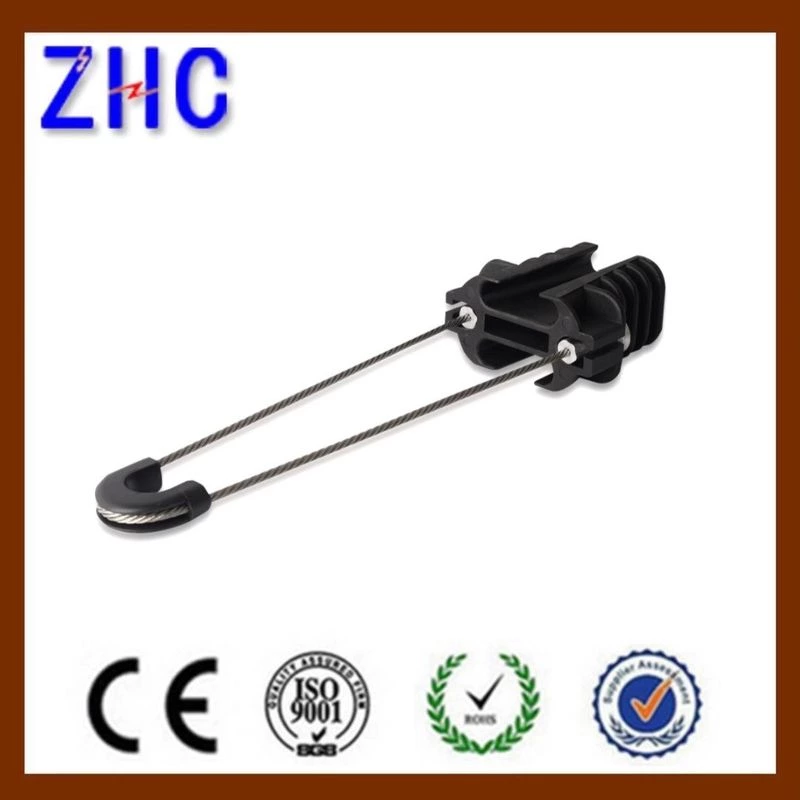

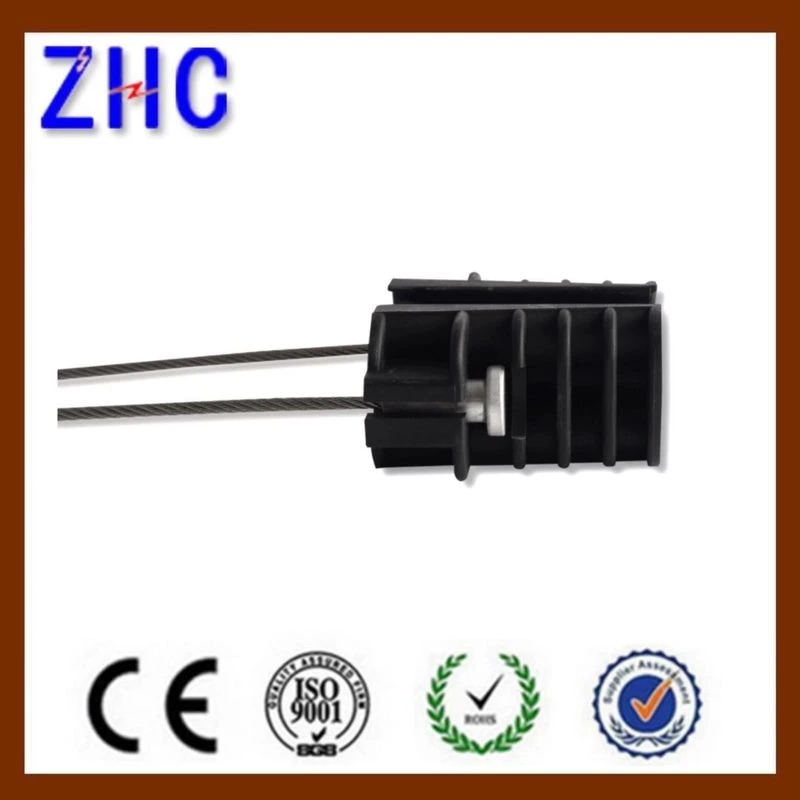

UV Black PA66 Self Support ABC Cable Insulated Plastic Tension Strain Dead End Clamp PA25
- Certification
- CE
- Model Number
- PA25N
- Packaging Details
- 200PCS/CTN, 41x28x32CM , 13KGS
- Supply Ability
- 500000PCS one month
- Material
- Anti UV Thermoplastic
- Suitable Cable Use
- Aerial Bundle Cable
UV Black PA66 Self Support ABC Cable Insulated Plastic Tension Strain Dead End Clamp PA25 Product property: The plastic anchor clamp is suitable for low-voltage ABC cable.Wedge-type anchoring clamps
UV Black PA66 Self Support ABC Cable Insulated Plastic Tension Strain Dead End Clamp PA25
Product property:
The plastic anchor clamp is suitable for low-voltage ABC cable.Wedge-type anchoring clamps are intended for fastening of aerial bundle cables on trunk lines or their branches. The clamps provide the required tension of the cable over the span length. The clamp made of weather and UV resistant polymer which clamp the neutral messenger without damaging the insulation.
Features:
- According to NF C 33 042
- Easy to open bail permits fixing to brackets and pigtails
- Tool free installation with wedges sliding inside the body
| Item No. | Cross section(mm2) | Material | Conductor(mm) | Breaking load |
| PA25N | 4X(25-70) | Nylon,Steel | 4-8 | 2KN |
