Dead End Clamp

UV Black 16-25mm2 Overhead Line 4 Cores Anchoring Tension Clamp For ABC Cable

Certification
CE
Model Number
DN123
Packaging Details
100PCS/CTN, 41x28x32CM , 13KGS
Supply Ability
500000PCS one month
Material
Anti UV Thermoplastic
Suitable Cable Use
Aerial Bundle Cable
Contact Now
UV Black 16-25mm2 Overhead Line 4 Cores Anchoring Tension Clamp For ABC Cable
UV Black 16-25mm2 Overhead Line 4 Cores Anchoring Tension Clamp For ABC Cable1 UV Black 16-25mm2 Overhead Line 4 Cores Anchoring Tension Clamp For ABC Cable2 UV Black 16-25mm2 Overhead Line 4 Cores Anchoring Tension Clamp For ABC Cable3 UV Black 16-25mm2 Overhead Line 4 Cores Anchoring Tension Clamp For ABC Cable4 UV Black 16-25mm2 Overhead Line 4 Cores Anchoring Tension Clamp For ABC Cable5

UV Black 16-25mm2 Overhead Line 4 Cores Anchoring Tension Clamp For ABC Cable

Product property:

The plastic anchor clamp is suitable for low-voltage ABC cable.Wedge-type anchoring clamps are intended for fastening of aerial bundle cables on trunk lines or their branches. The clamps provide the required tension of the cable over the span length. The clamp made of weather and UV resistant polymer which clamp the neutral messenger without damaging the insulation.

Features:

  1. According to NF C 33 042
  2. Easy to open bail permits fixing to brackets and pigtails
  3. Tool free installation with wedges sliding inside the body

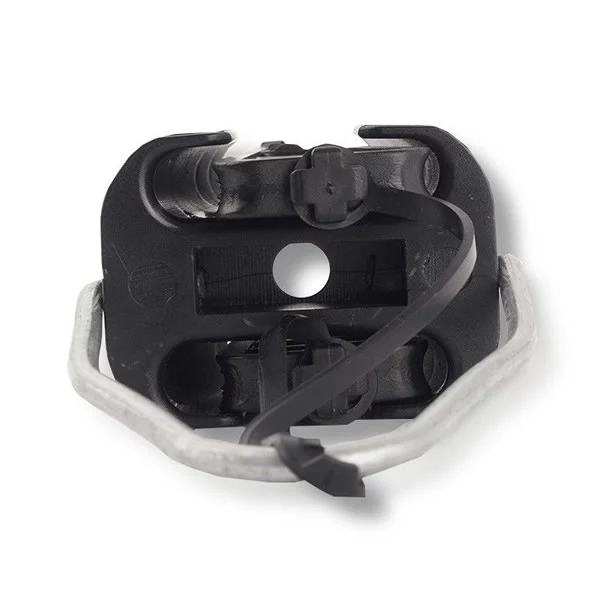

UV black 16-25mm2 overhead line 4-core ABC cable anchor tension clamp detail picture

Item No. Cross section (mm2) Material Conductor(mm) Breaking load
DN123 4X(16-25) Nylon,steel 4-8 2KN

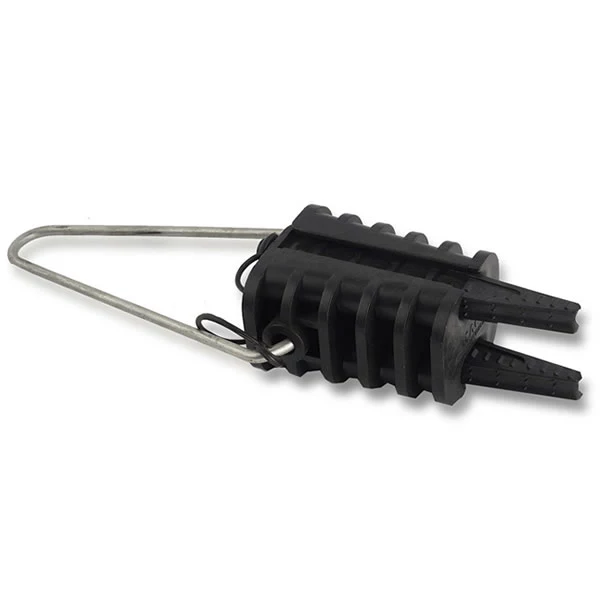

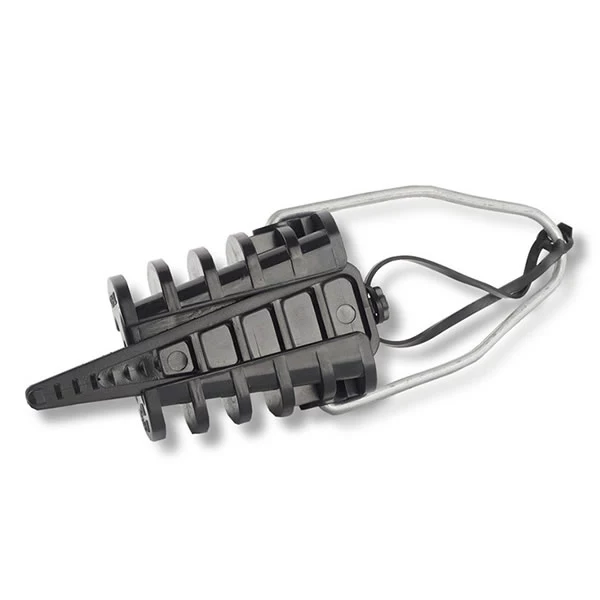

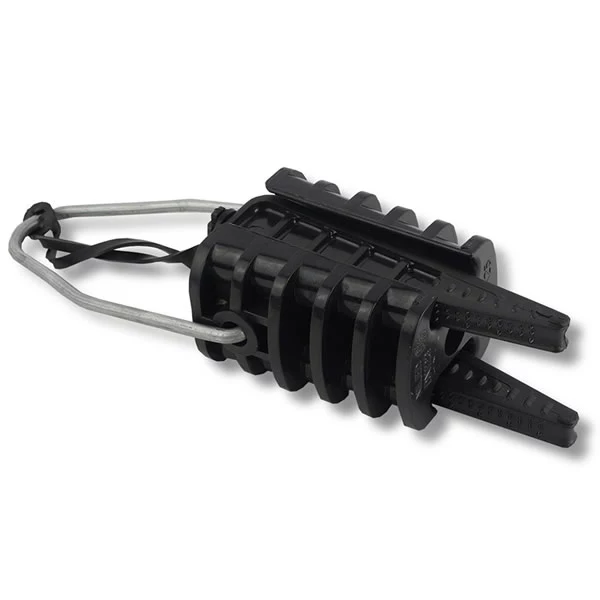

UV black 16-25mm2 overhead line 4-core ABC cable anchor tension clamp Other product pictures
