Dead End Clamp

Hop Dip Aluminum Body Preformed Guy Grip Dead Tension Clamp Strain Clamp For 4 Cores ABC Cable Conductor 50mm2

Certification
CE
Model Number
PAT50H PAT95H
Packaging Details
100PCS/CTN, 41x28x32CM , 18KGS
Supply Ability
500000PCS one month
Material
Anti UV Thermoplastic +Aluminum Alloy Body
Suitable Cable Use
Aerial Bundle Cable
Contact Now

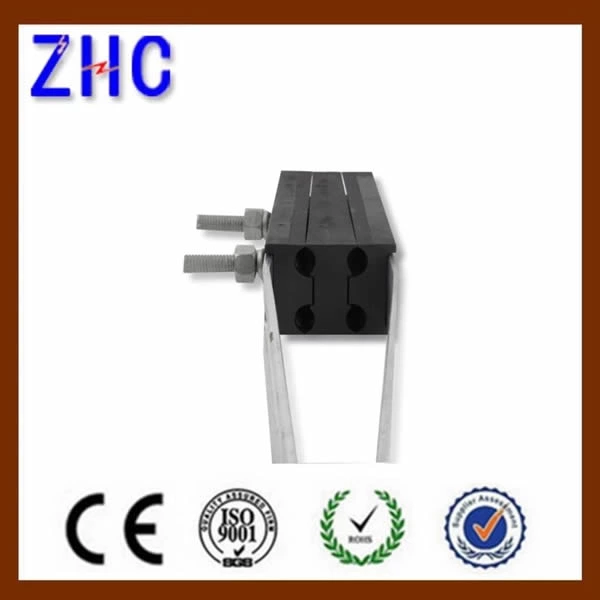

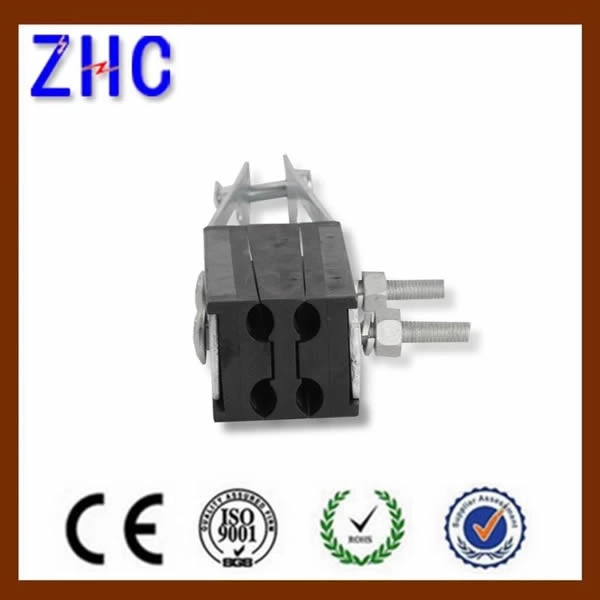

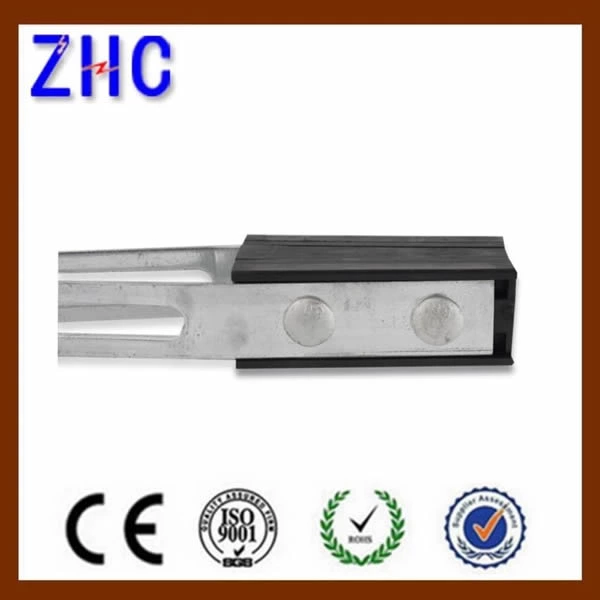

Hop Dip Aluminum Body Preformed Guy Grip Dead Tension Clamp Strain Clamp For 4 Cores ABC Cable Conductor 50mm2
Hop Dip Aluminum Body Preformed Guy Grip Dead Tension Clamp Strain Clamp For 4 Cores ABC Cable Conductor 50mm21 Hop Dip Aluminum Body Preformed Guy Grip Dead Tension Clamp Strain Clamp For 4 Cores ABC Cable Conductor 50mm22 Hop Dip Aluminum Body Preformed Guy Grip Dead Tension Clamp Strain Clamp For 4 Cores ABC Cable Conductor 50mm23 Hop Dip Aluminum Body Preformed Guy Grip Dead Tension Clamp Strain Clamp For 4 Cores ABC Cable Conductor 50mm24

Hop Dip Aluminum Body Preformed Guy Grip Dead Tension Clamp Strain Clamp For 4 Cores ABC Cable Conductor 50mm2

Product property:

The aluminum alloy body  anchor clamp is suitable for low-voltage ABC cable.Wedge-type anchoring clamps are intended for fastening of aerial bundle cables on trunk lines or their branches. The clamps provide the required tension of the cable over the span length. The clamp made of high strength aluminum alloy  which clamp the neutral messenger without damaging the insulation.

Features:

  1. According to NF C 33 042
  2. Easy to open bail permits fixing to brackets and pigtails
  3. Tool free installation with wedges sliding inside the body

Hop Dip Aluminum Body Preformed Guy Grip Dead Tension Clamp Strain Clamp For 4 Cores ABC Cable Conductor 50mm2

Iteam No. Cross section(mm²) Conductor(mm) Breaking load
PAT-50H 4X(16-50) 11-14 20KN
PAT-95H  4X(70-95) 14-16 30KN
