Dead End Clamp

Aluminium Preformed Tension Clamp For Aerial Bundle Cable Four Cores 35mm2

Contact Now

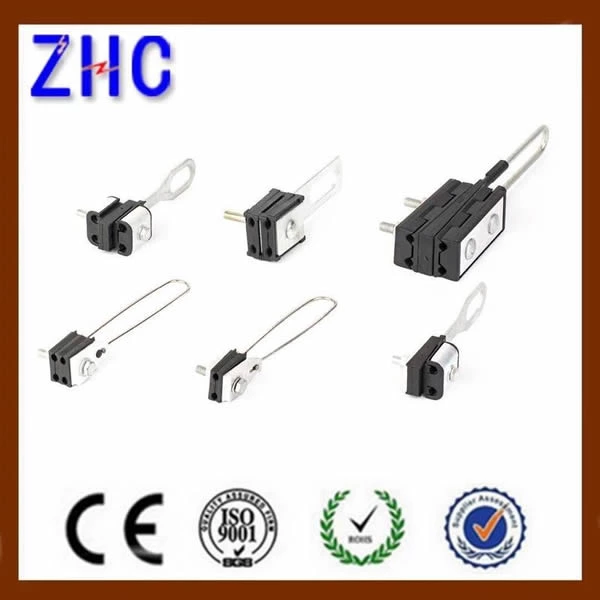

Aluminium Preformed Tension Clamp For Aerial Bundle Cable Four Cores 35mm2
Aluminium Preformed Tension Clamp For Aerial Bundle Cable Four Cores 35mm23 Aluminium Preformed Tension Clamp For Aerial Bundle Cable Four Cores 35mm22 Aluminium Preformed Tension Clamp For Aerial Bundle Cable Four Cores 35mm21

Aluminium Preformed Tension Clamp For Aerial Bundle Cable Four Cores 35mm2

Product property:

The aluminum alloy body  anchor clamp is suitable for low-voltage ABC cable.Wedge-type anchoring clamps are intended for fastening of aerial bundle cables on trunk lines or their branches. The clamps provide the required tension of the cable over the span length. The clamp made of high strength aluminum alloy  which clamp the neutral messenger without damaging the insulation.

Features:

  1. According to NF C 33 042
  2. Easy to open bail permits fixing to brackets and pigtails
  3. Tool free installation with wedges sliding inside the body

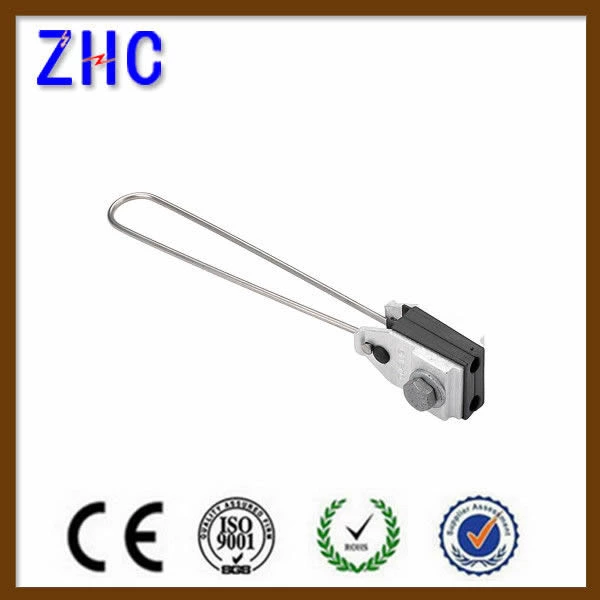

Aluminum stranded wire four core 35mm2 aluminum tension clamp Details Picture1

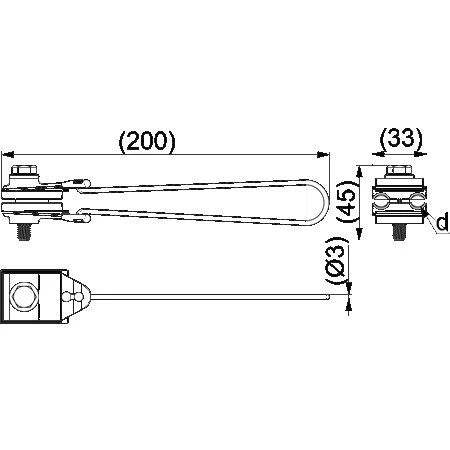

Aluminum stranded wire four core 35mm2 aluminum tension clamp Details Picture2

Item No. Cross section (mm2) Material Conductor(mm) Breaking load
ZC157 2X(16-35) Nylon,Steel 3-6 6.5KN
ZC158 4X(16-35) Nylon,Steel 3-6 8KN
