WCJB Bolt Brass Jointing Clamp
- Certification:
- CE
- Model Number:
- WCJB
- MOQ:
- 1000pcs
- Supply Ability:
- 500000PCS/Month
- Material:
- Brass

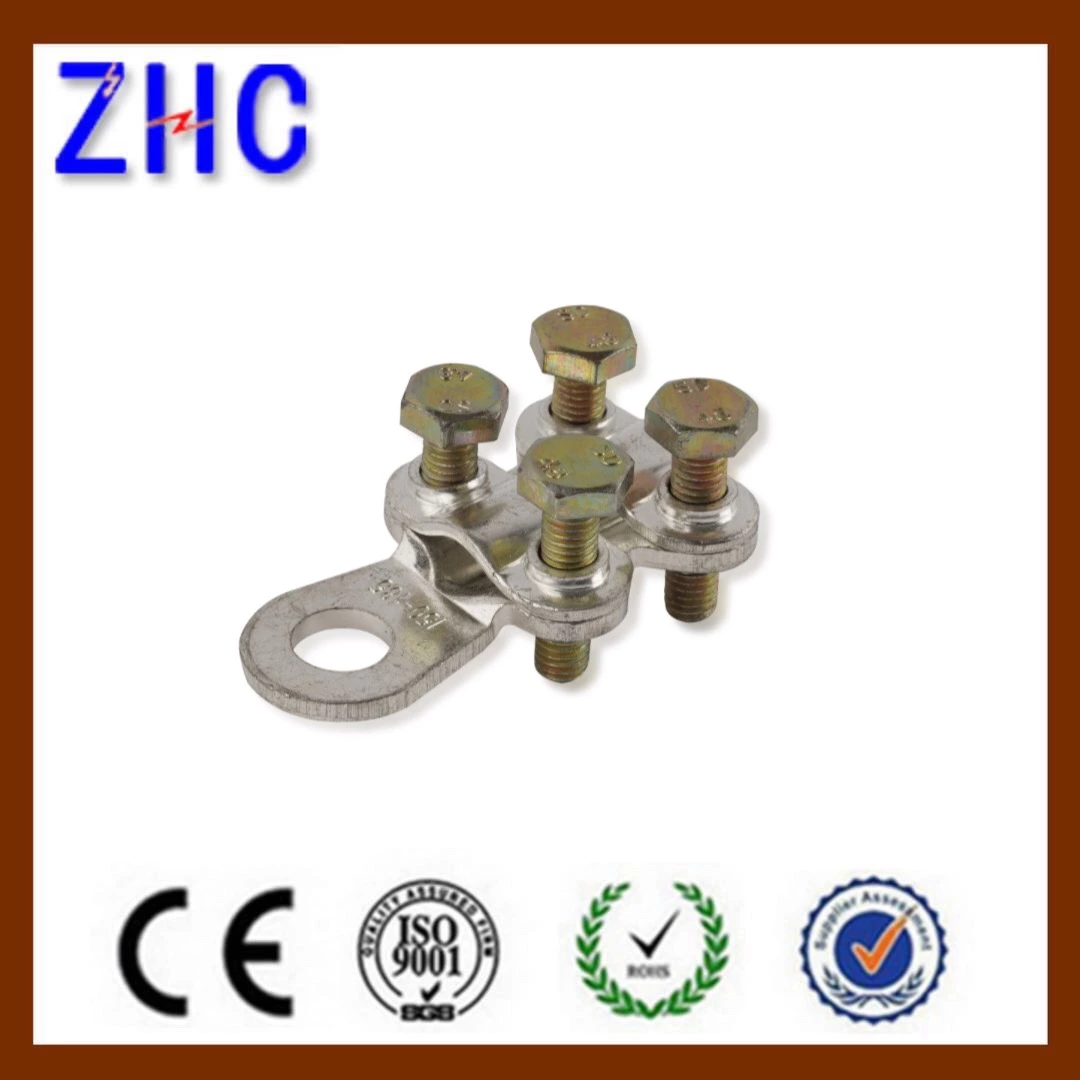

WCJB Bolt Brass Jointing Clamp
Application:
WCJB Brass Jointing Clamp is fixed by bolts and used in the connections between the electrical equipment with cable and the indoor distribution equipment.
Advantages：
1)They can be reused many times.
2)Various kinds of size, meet with the customers’requirements.
3)Surface: tin plated
|

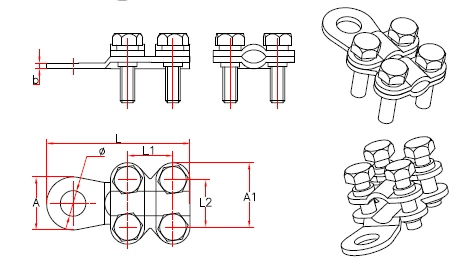

Code |
Cable Size (mm²) |
Dimensions(mm) |
||||
|
L |
A |
B |
D |
M |
||
|
WCJB-1 |
16-25 |
39 |
16 |
25 |
8.5 |
5 |
|
WCJB-2 |
16-25 |
45 |
18 |
22 |
8.5 |
5 |
|
WCJB-3 |
25-35 |
52 |
21 |
24 |
10.5 |
5 |
|
WCJB-4 |
50-70 |
61 |
23 |
31 |
10.5 |
6 |
|
WCJB-5 |
70-95 |
69 |
23 |
35 |
10.5 |
6 |
|
WCJB-6 |
95-120 |
73 |
27 |
41 |
13.5 |
8 |
|
WCJB-7 |
120-150 |
74 |
28 |
42 |
13.5 |
8 |
|
WCJB-8 |
150-185 |
76 |
28 |
42 |
13.5 |
8 |
|
WCJB-9 |
185-240 |
80 |
30 |
44 |
13.5 |
8 |
