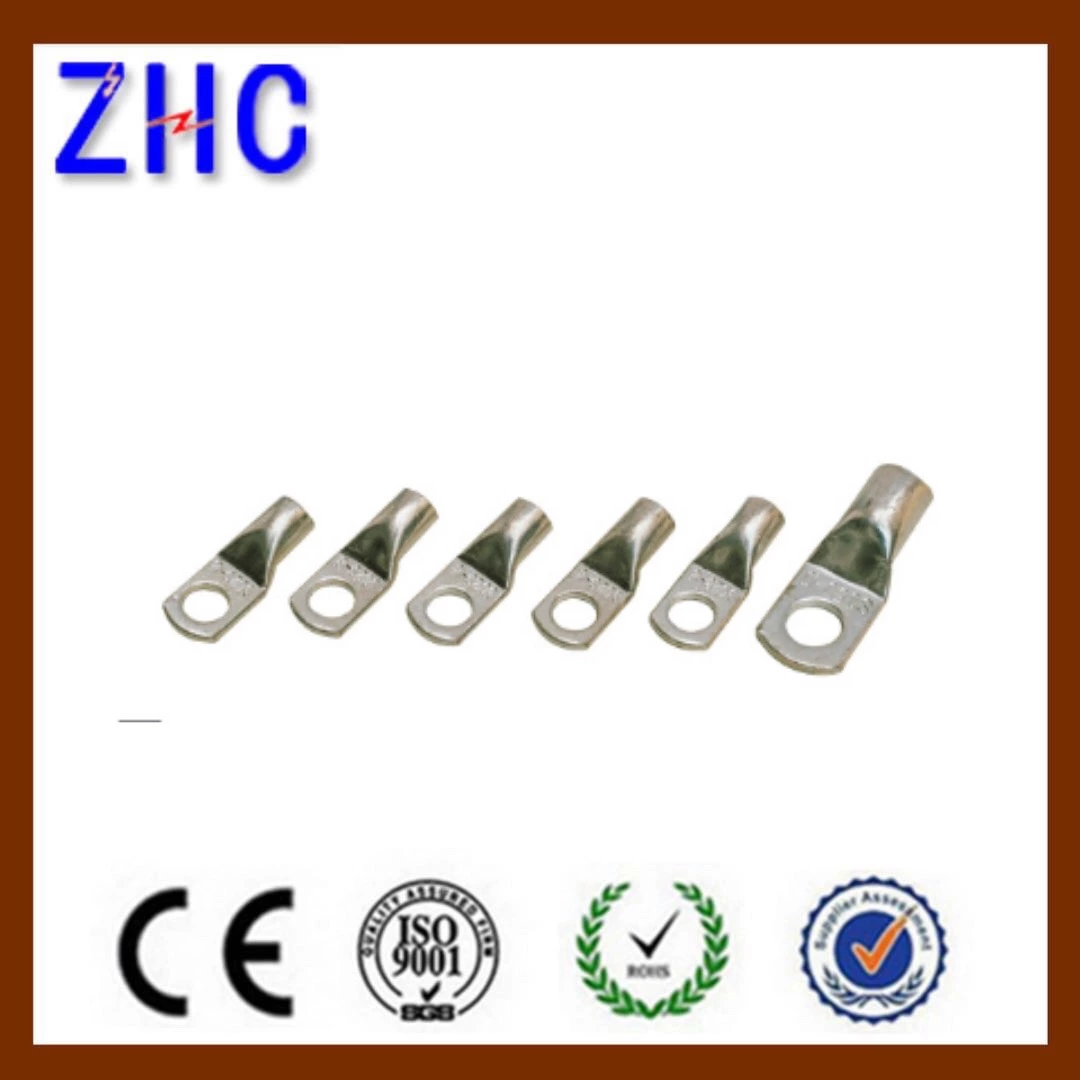

SC(JGA) Copper Cable Crimp Lug
- Certification
- CE
- Model Number
- SC(JGA)
- MOQ
- 1000pcs
- Supply Ability
- 500000PCS/Month
- Material
- Copper
SC(JGA) Copper Cable Crimp Lug
Application:
SC(JGA) Copper Compression Lugs are suitable for stranded round shaped conductors and pre-rounded sector shaped conductors.
Features:
1) Have a viewing window to check the location of the conductor.
2) Material: CU≥99.9%
3)Surface: electro tin plated.

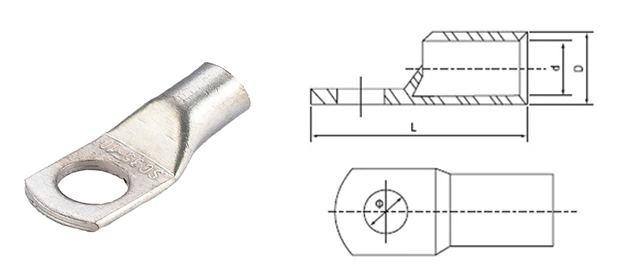

| Item No | Dimension(mm) | |||
| φ | D | d | L | |
| SC(JGA)-1.5 | φ4.2,φ5.2 | 3.5 | 1.8 | 18 |
| SC(JGA)-2.5 | φ4.2,φ5.2,φ6.2, | 4 | 2.5 | 19 |
| SC(JGA)-4 | φ5.2,φ6.2 | 4.8 | 3.1 | 21 |
| SC(JGA)-6 | φ5.2,φ6.2,φ8.2 | 5.5 | 3.8 | 24 |
| SC(JGA)-10 | φ6.2,φ8.2 | 6.8 | 4.8 | 25.5 |
| SC(JGA)-16 | φ6.2,φ8.2,φ10.5 | 7.5 | 5.5 | 30.5 |
| SC(JGA)-25 | φ6.2,φ8.2,φ10.5 | 9 | 7 | 34 |
| SC(JGA)-35 | φ6.2,φ8.2,φ10.5,φ12.5 | 10.5 | 8.2 | 38 |
| SC(JGA)-50 | φ8.2,φ10.5,φ12.5 | 12.5 | 9.8 | 45 |
| SC(JGA)-70 | φ8.2,φ10.5,φ12.5 | 14.5 | 11.5 | 50 |
| SC(JGA)-95 | φ10.5,φ12.5 | 17.5 | 13.8 | 55.5 |
| SC(JGA)-120 | φ12.5,φ16.5 | 19.5 | 15.5 | 63 |
| SC(JGA)-150 | φ12.5,φ16.5 | 21 | 16.5 | 71 |
| SC(JGA)-185 | φ16.5 | 23.5 | 18.8 | 78 |
| SC(JGA)-240 | φ16.5 | 26.5 | 21 | 92 |
| SC(JGA)-300 | φ16.5,φ20.5 | 30 | 24 | 102 |
| SC(JGA)-400 | φ16.5,φ20.5 | 34 | 26.5 | 113 |
| SC(JGA)-500 | φ16.5,φ20.5 | 38 | 30 | 123 |
| SC(JGA)-630 | φ20.5 | 45 | 35 | 135 |
| SC(JGA)-800 | φ22.5 | 50 | 39 | 170 |
| SC(JGA)-1000 | φ22.5 | 56 | 44 | 200 |
