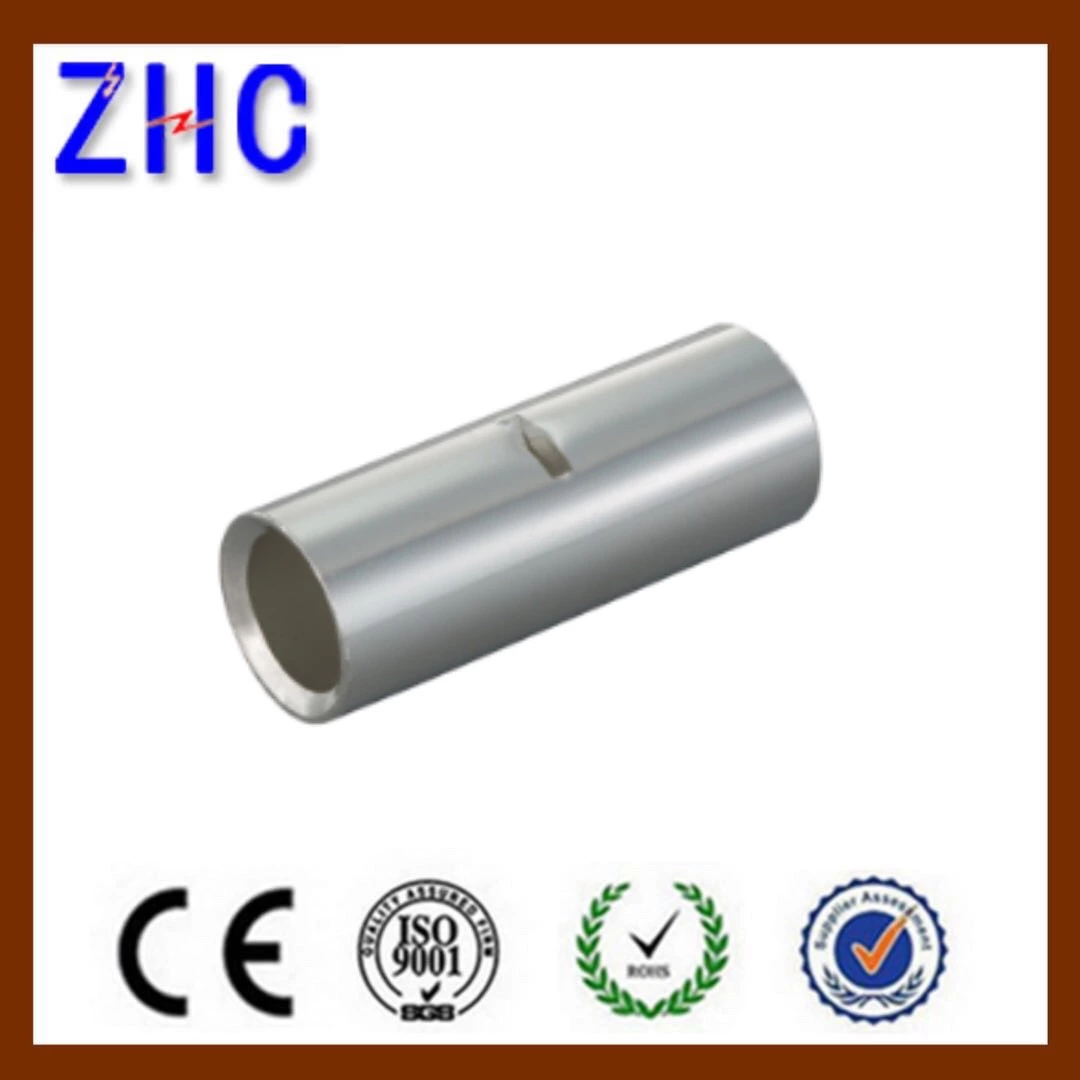

GTY Copper Connecting Tube
- Certification:
- CE
- Model Number:
- GTY
- MOQ:
- 1000pcs
- Supply Ability:
- 500000PCS/Month
- Material:
- Copper
GTY Copper Connecting Tube
Application:
GTY Copper Connecting Tube are suitable for stranded round shaped conductors and pre-rounded sector shaped conductors.
Features:
1) Have a viewing window to check the location of the conductor.
2) Material: CU≥99.9%
3)Surface: electro tin plated.

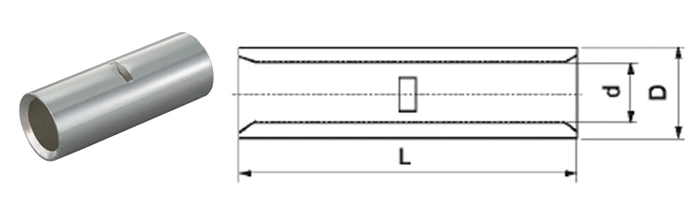

| Model | Dimension(mm) | ||
| D | d | L | |
| GTY1.5 | 3.7 | 1.8 | 20 |
| GTY2.5 | 4 | 2.4 | 20 |
| GTY4 | 4.8 | 3.1 | 20 |
| GTY6 | 5.5 | 3.8 | 20 |
| GTY10 | 6.2 | 4.5 | 20 |
| GTY16 | 7.1 | 5.4 | 40 |
| GTY25 | 8.8 | 6.8 | 45 |
| GTY35 | 10.6 | 8.2 | 45 |
| GTY50 | 12.4 | 9.5 | 45 |
| GTY70 | 14.7 | 11.2 | 50 |
| GTY95 | 17.5 | 13.5 | 50 |
| GTY120 | 19.4 | 15 | 55 |
| GTY150 | 21.2 | 16.5 | 60 |
| GTY185 | 23.5 | 18.5 | 65 |
| GTY240 | 26.5 | 21 | 80 |
| GTY300 | 30 | 23.5 | 85 |
| GTY400 | 36.5 | 28.5 | 90 |
