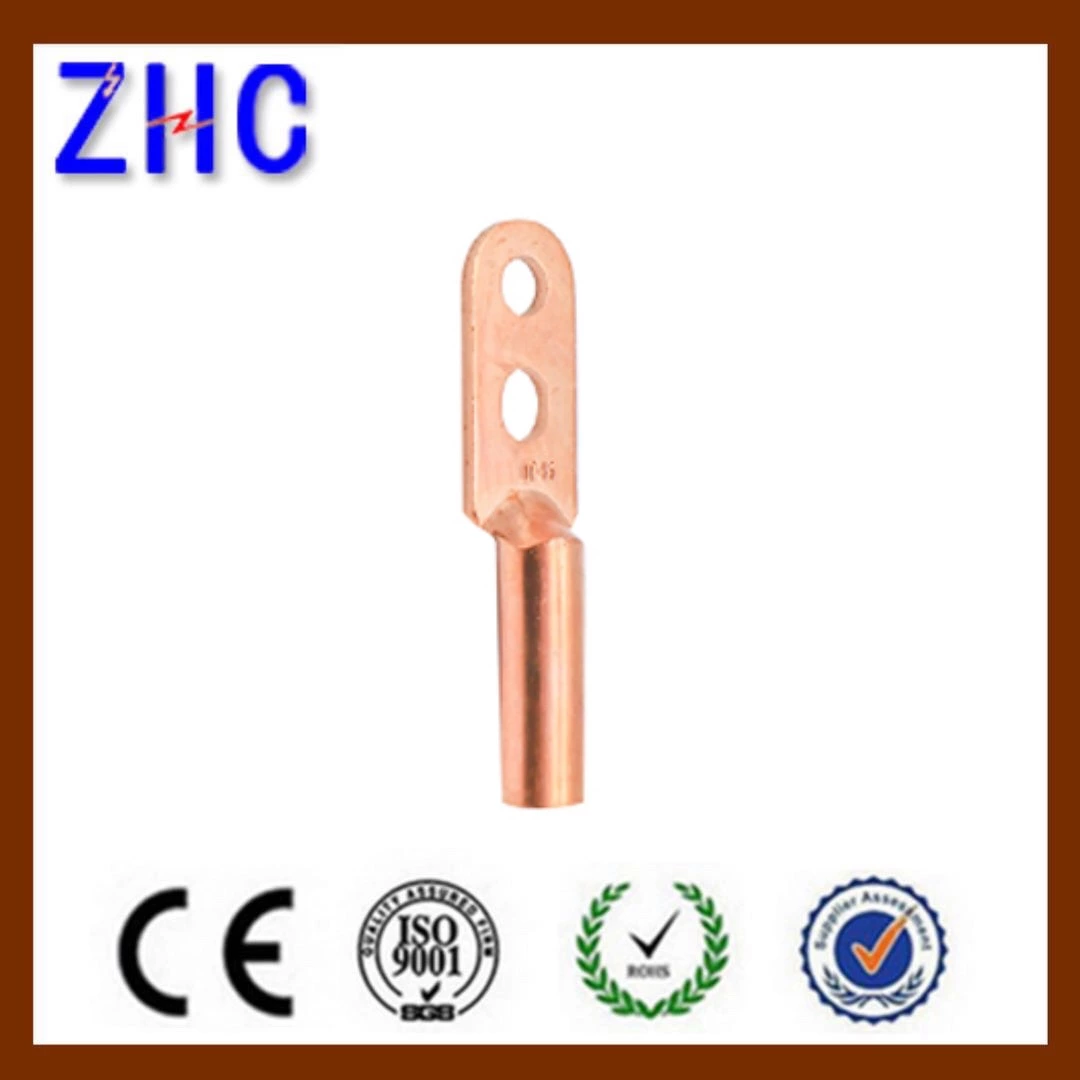

DT-S Double Holes Pure Copper Cable Lug
- Certification
- CE
- Model Number
- DT-S
- MOQ
- 1000pcs
- Supply Ability
- 500000PCS/Month
- Material
- Copper
DT-S Double Holes Pure Copper Cable Lug
Application:
DT-S Double Holes Pure Copper Cable Lug is suitable for copper conductor, made of Seamless copper tube and finished electro tinned.
Features:

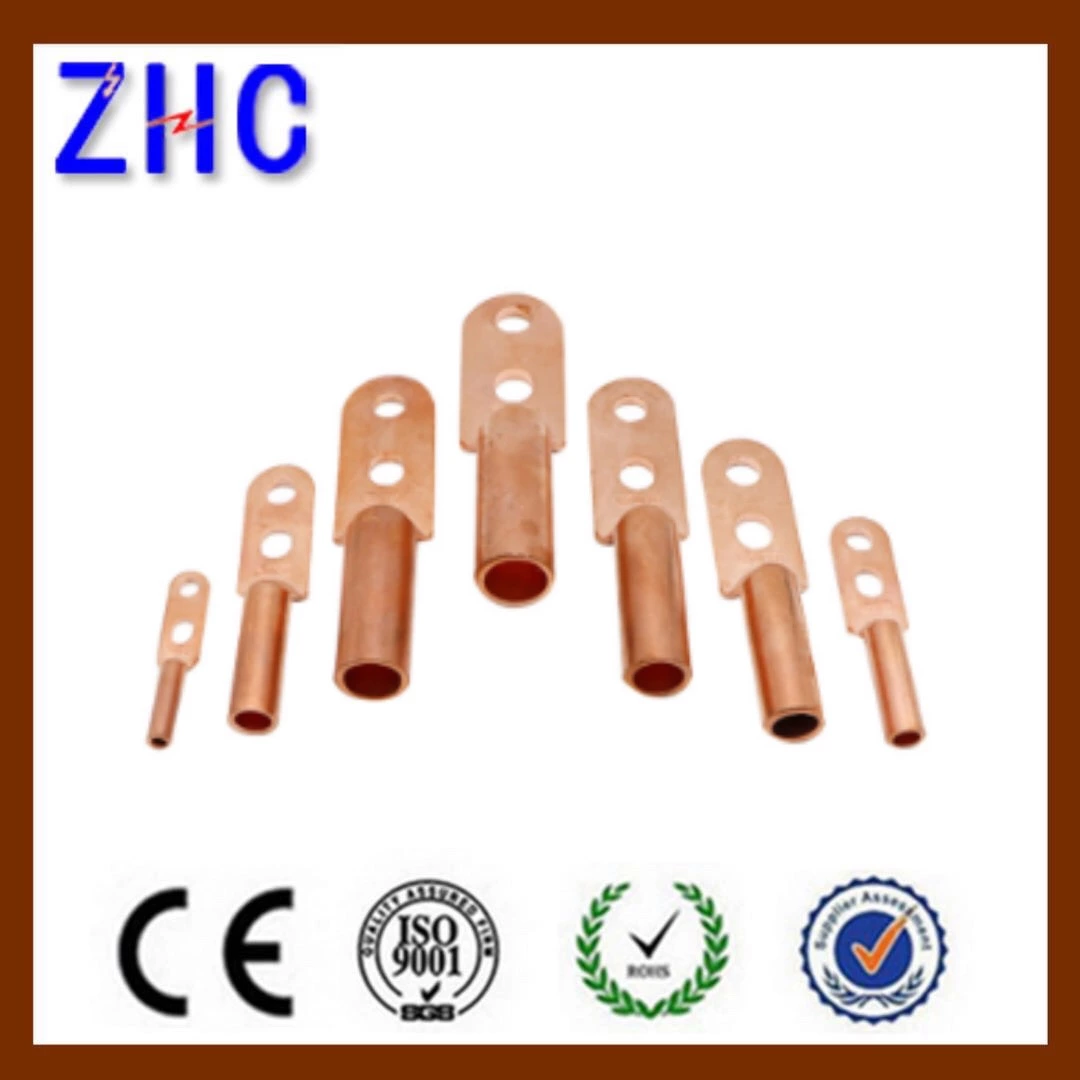

1. DT-S Copper Lugs come in sizes to fit cables ranging from 10 mm2 up to 500mm2. Eyelet sizes available are 6mm. 8mm.10mm.12mm.16mm and 20mm or according to customers requirements.
2. It is seamless copper tube guarantee good quality.
3. The cable area of DT-S copper lug is identified clearly on the lug.
4. Material: CU≥99.9%

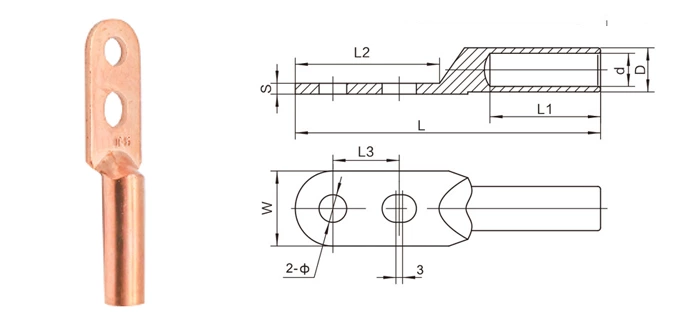

| Model | Dimension(mm) | ||||||||
| Dia | D | d | L | L1 | L2 | L3 | W | S | |
| DT-10S | 8.4 | 9 | 5.5 | 80 | 30 | 40 | 20 | 16 | 2.5 |
| DT-16S | 8.4 | 10 | 6 | 82 | 32 | 40 | 20 | 16 | 2.5 |
| DT-25S | 8.4 | 11 | 7 | 86 | 34 | 42 | 20 | 18 | 2.5 |
| DT-35S | 10.5 | 12 | 8.5 | 93 | 36 | 45 | 20 | 20 | 3 |
| DT-50S | 10.5 | 14 | 9.6 | 100 | 40 | 47 | 20 | 23 | 3 |
| DT-70S | 12.5 | 16 | 12 | 115 | 45 | 55 | 25 | 26 | 3.5 |
| DT-95S | 12.5 | 18 | 13 | 123 | 48 | 57 | 25 | 28 | 3.5 |
| DT-120S | 14.5 | 20 | 15 | 132 | 50 | 63 | 30 | 30 | 4 |
| DT-150S | 14.5 | 22 | 16 | 140 | 54 | 65 | 30 | 34 | 4.8 |
| DT-185S | 14.5 | 25 | 18 | 152 | 56 | 73 | 35 | 37 | 5.5 |
| DT-240S | 14.5 | 27 | 20 | 160 | 61 | 74 | 35 | 40 | 5.7 |
| DT-300S | 16.5 | 30 | 23 | 170 | 65 | 77 | 40 | 45 | 7 |
| DT-400S | 16.5 | 34 | 26 | 178 | 70 | 77 | 40 | 50 | 7.5 |
| DT-500S | 21 | 38 | 29 | 205 | 82 | 90 | 45 | 60 | 9 |
