CL-2H Double Holes Aluminum Cable Lug
- Certification
- CE
- Model Number
- CL-2H
- MOQ
- 1000pcs
- Supply Ability
- 500000PCS/Month
- Material
- Aluminum
CL-2H Double Holes Aluminum Cable Lug
Application:
CL-2H Double Holes Aluminum Cable Lugs are suitable for the conjunction of wires cable in the distribution equipment and the electrical equipment.
Features:
1. Clear markings on barrel to indicate correct crimping location.
2. In accordance with DIN46329.
3. The solid palm eliminates the ingress of moisture.
4. Prefilled with jointing compound and sealed with caps.
5. Material: AL≥99.5%
6. Surface: electro tin plated.

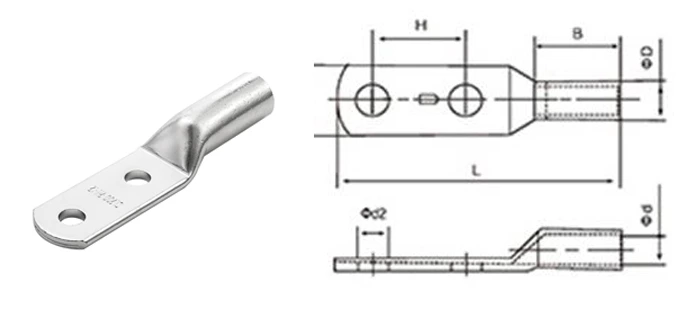

| Item No. | Dimension | ||||||
| Φd2 | B | L | ΦD | Φd | E | H | |
| CL14-2H-6 | 6.4 | 13 | 117.5 | 8.8 | 5.8 | 28.5 | 45 |
| CL22-2H-8 | 8.4 | 16 | 119.2 | 11.3 | 7.7 | ||
| CL38-2H-10 | 10.5 | 18.3 | 120 | 12.4 | 9.8 | 31.7 | |
| CL38-2H-12 | 13 | 18.3 | 120 | ||||
| CL60-2H-10 | 10.5 | 20.5 | 130 | 14 | 11 | 40 | |
| CL60-2H-12 | 13 | 20.5 | 130 | ||||
| CL70-2H-10 | 10.5 | 21.4 | 130 | 15 | 12 | ||
| CL70-2H-12 | 13 | 21.4 | 130 | ||||
| CL80-2H--12 | 13 | 23.2 | 130 | 16 | 13 | ||
| CL100-2H-12 | 13 | 26 | 132 | 18 | 14 | 42 | |
| CL125-2H-12 | 13 | 29 | 135 | 20 | 16 | ||
| CL150-2H-12 | 13 | 31 | 150 | 22 | 17 | 50 | |
| CL180-2H-12 | 13 | 33 | 150 | 23 | 18.2 | ||
| CL200-2H-12 | 13 | 37 | 150 | 26 | 20 | 52.5 | |
| CL250-2H-12 | 13 | 40 | 150 | 28 | 22 | 50 | |
| CL325-2H-12 | 13 | 46 | 180 | 32 | 25 | 68 | |
| CL400-2H-12 | 13 | 54 | 180 | 37 | 30 | 60 | |
| CL500-2H-12 | 13 | 57.5 | 180 | 40 | 31 | ||
| B-CL14-2H-6 | 6.4 | 13 | 117.5 | 8.3 | 5.8 | 28.5 | |
| B-CL22-2H-8 | 8.4 | 16 | 119.2 | 10.7 | 7.7 | ||
| B-CL38-2H-10 | 10.5 | 17.5 | 120 | 11.9 | 9.8 | 31.7 | |
| B-CL38-2H-12 | 13 | 17.5 | 120 | ||||
| B-CL60-2H-10 | 10.5 | 19.5 | 120 | 13.5 | 11 | 40 | |
| B-CL60-2H-12 | 13 | 19.5 | 130 | ||||
| B-CL70-2H-10 | 10.5 | 21.4 | 130 | 14.5 | 12 | ||
| B-CL70-2H-12 | 13 | 21.4 | 130 | ||||
| B-CL80-2H-12 | 13 | 23.2 | 130 | 15.5 | 13 | ||
| B-CL100-2H-12 | 13 | 26 | 132 | 17.3 | 14 | 42 | |
| B-CL125-2H-12 | 13 | 28 | 135 | 19.3 | 16 | 42 | |
| B-CL150-2H-12 | 13 | 31 | 150 | 21.1 | 17 | 50 | |
| B-CL180-2H-12 | 13 | 33 | 150 | 22.1 | 18.2 | ||
| B-CL200-2H-12 | 13 | 36 | 150 | 24.9 | 20 | ||
| B-CL250-2H-12 | 13 | 39 | 150 | 26.9 | 22 | ||
| B-CL325-2H-12 | 13 | 45 | 180 | 30.7 | 25 | 68 | |
| B-CL400-2H-12 | 13 | 54 | 180 | 35.7 | 30 | 60 | |
| B-CL500-2H-12 | 13 | 56 | 180 | 38.4 | 31 | ||
