Cable Lug & Cable Terminal

CCT C Type Compression Copper Wire Clamp

Certification
CE
Model Number
CCT
MOQ
1000pcs
Supply Ability
500000PCS/Month
Material
Copper

Contact Now

CCT C Type Compression Copper Wire Clamp


Application:
CCT C-Type Copper Crimp Connector is suitable for the connection of copper splicing.

Feature:
1)  Size from 14.5mm-700mm
2) Material: CU, purity 99.9%

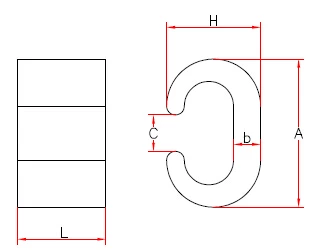

wire clamp

Item No. Suitable Conductor(mm²) A L b c
CCT-16 14.5-16 11.8 13 2 7.8
CCT-20 16.5-20 12.8 13 2.9 9.7
CCT-26 21-26 14.7 16 3.2 10.0
CCT-44 27-44 19 20 4 14.4
CCT-60 45-60 21 22 4 15.4
CCT-76 61-76 24.4 22 5 17.6
CCT-98 77-98 27.8 25 5 18.8
CCT-122 99-122 29.8 26 5.5 21.2
CCT-154 123-154 34 28 6 24.4
CCT-190 155-190 37 35 6 25.4
CCT-240 191-240 40 40 7 28.5
CCT-288 141-288 44.5 45 7 34.1
CCT-365 289-365 47.5 50 7 34
CCT-450 366-450 57 60 10 41
CCT-560 451-560 62 65 11 44
CCT-700 561-700 68 70 12 49.5
