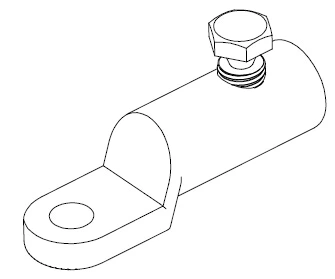

Aluminum Mechanical Cable Lug
- Certification
- CE
- Model Number
- AML
- MOQ
- 1000pcs
- Supply Ability
- 500000PCS/Month
- Material
- Aluminum
Aluminum Mechanical Cable Lug
Description:
1. Wide application range.
2. Compact design,requires little installation space.
3. Can be used with almost every type of conductor and material.
4.Torque-controlled shear-head bolts guarantee a good electrical contact.
5.Easy installation with standard socket spanner.
Characteristics:
1. Total cross-section: 25-400 mm
2.Pr-engineered design for perfect fit in medium voltage cable accessories up to 42 kV.
3.Lugs are suitable for out door and indoor applications.
4.Connector and lug bodies are made of a high-tensile,tin plated aluminium alloy.
5.Lugs are suitable for outdoor and indoorapplications and are available with different hole sizes.
TECHNICAL DATA:
|
Cable Size(mm²) |
Bolt Size |
Code |

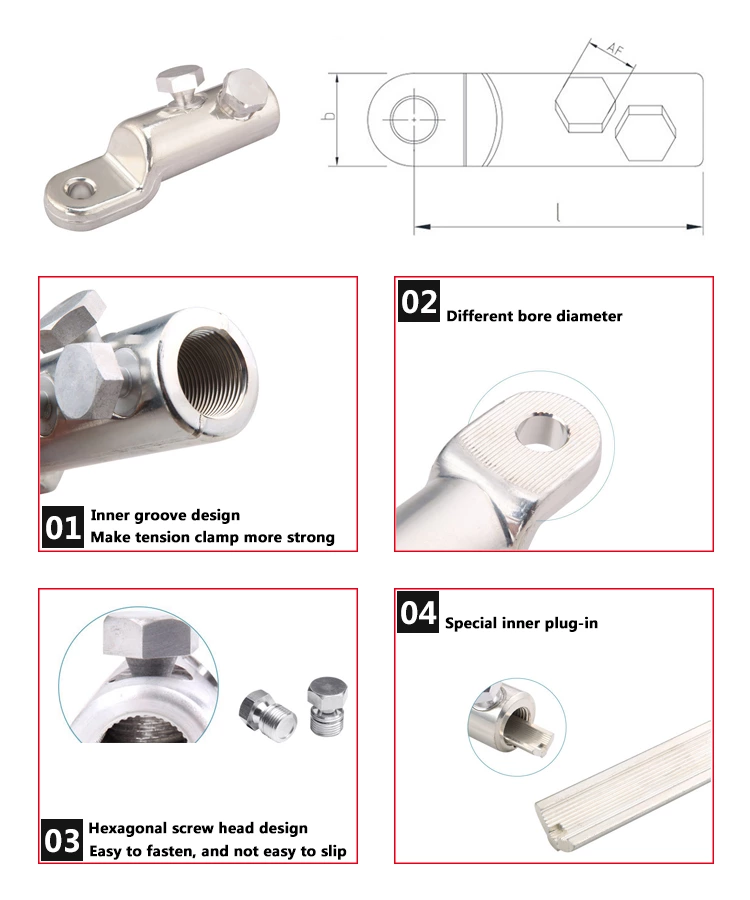

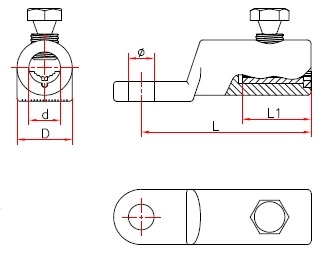

Dimension (mm) |
Bolt Quantity |
||
|
b |
l |
AF |
||||
|
25-95 |
M12 |
AML25/95-13 |
24 |
60 |
13 |
1 |
|
M16 |
AML25/95-17 |
|||||
|
35-150 |
M12 |
AML35/150-13 |
28 |
86 |
16 |
1 |
|
M16 |
AML35/150-17 |
|||||
|
95-240 |
M12 |
AML95/240-13 |
33 |
112 |
19 |
2 |
|
M16 |
AML95/240-17 |
|||||
|
M20 |
AML95/240-21 |
|||||
|
120-300 |
M12 |
AML120/300-13 |
37 |
115 |
24 |
2 |
|
M16 |
AML120/300-17 |
|||||
|
185-400 |
M12 |
AML185/240-13 |
42 |
137 |
24 |
3 |
|
M16 |
AML185/240-17 |
|||||
|
M20 |
AML185/240-21 |
|||||
