Australia Type Trailer Connector

Australian Style Male 7P Flat Plug 12V Plastic Trailer Connector For Vehicle Trailer

Certification
CE and ROHS
Model Number
ZC7001, 7001B
MOQ
1000PCS
Packaging Details
100PCS/CTN
Supply Ability
200000PCS/Month
Material
Nylon66 plastic + Brass Contact
Color
Black
Poles
7pins
Voltage
12V
Type
Australian Trailer Plug
Gender
Male
Wire
Screw Wire
Contact Now
Australian Style   Male 7P  Flat Plug  12V Plastic Trailer Connector For Vehicle Trailer

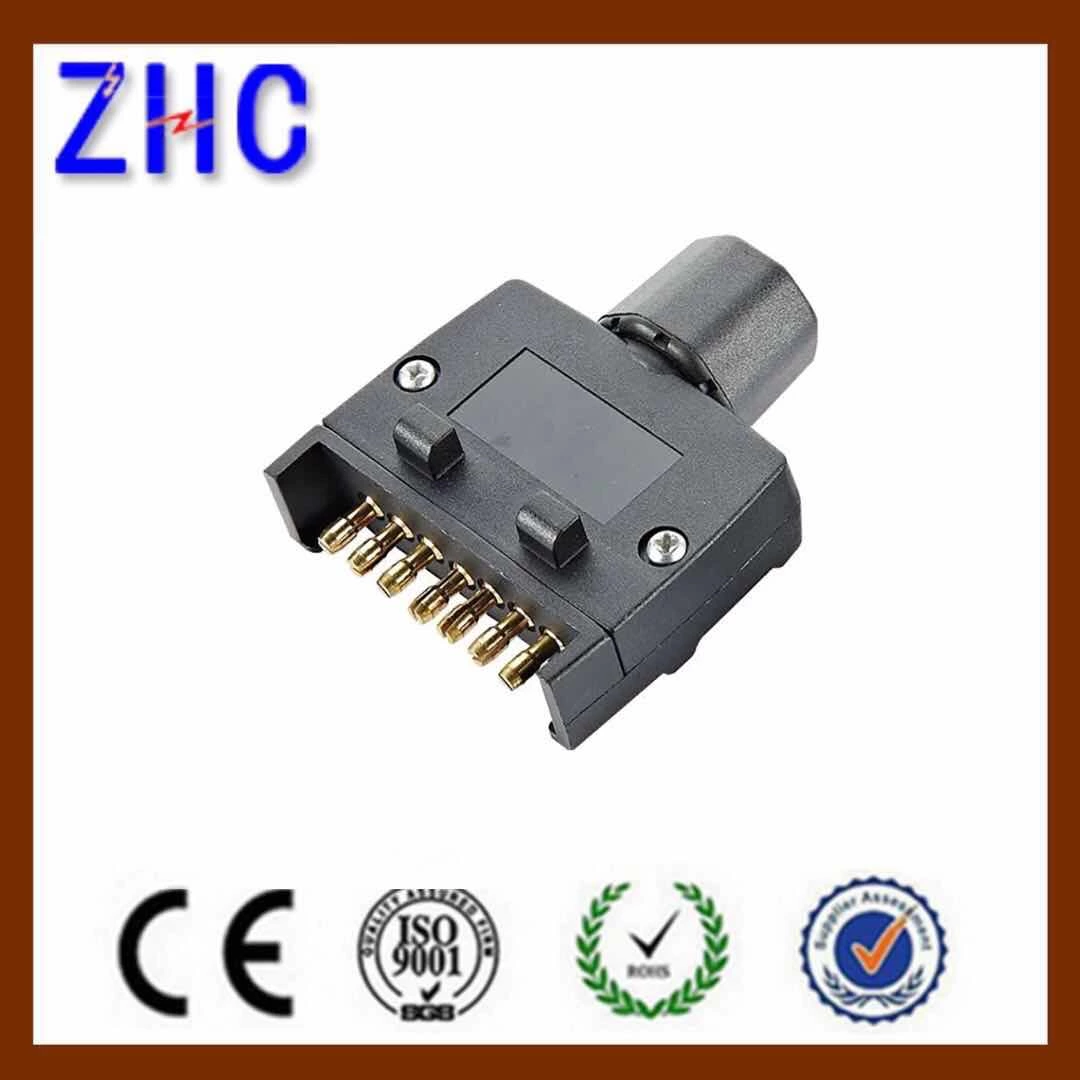

Australia Trailer connector 7P flat trailer plug



Australian trailer connector

Australian Style   Male 7P  Flat Plug  12V Plastic Trailer Connector  For Vehicle Trailer

Product Function:

1.Criss-cross of slotted brass contact, matched with female needle.

2. The surface is matte process and new material.

3. Appearance design is convenient and easy.

Type  Australian Trailer Plug
Model NO.  ZC7001 , 7001B
Gender   Male
Color   Black
Voltage  12V
Body Material  Nylon 66 Plastic
Contact materials Brass contact
Pin 7 pin
Wire Method  Screw Install
certification  CE, ROHS, PAHS
Aplication  Automotive,Trailer,Truck,Yacht and so on





Australian Trailer Connector
Specifications:

7 Pin Lighting Connections - 12 N Black Cable Function

PIN 1 - Yellow Wire (Left/H Direction Indicator)
PIN 2 - Blue Wire ( Rear Fog Lamps )
PIN 3 - White Wire ( Earth Return )
PIN 4 - Green Wire (Right/H Direction Indicator)
PIN 5 - Brown Wire (Right/H Tail & No. Plate Lamp )
PIN 6 - Red Wire (Brake lights)
PIN 7 - Black Wire (Left/H Tail & No. Plate Lamp )
