American Type Trailer Connector

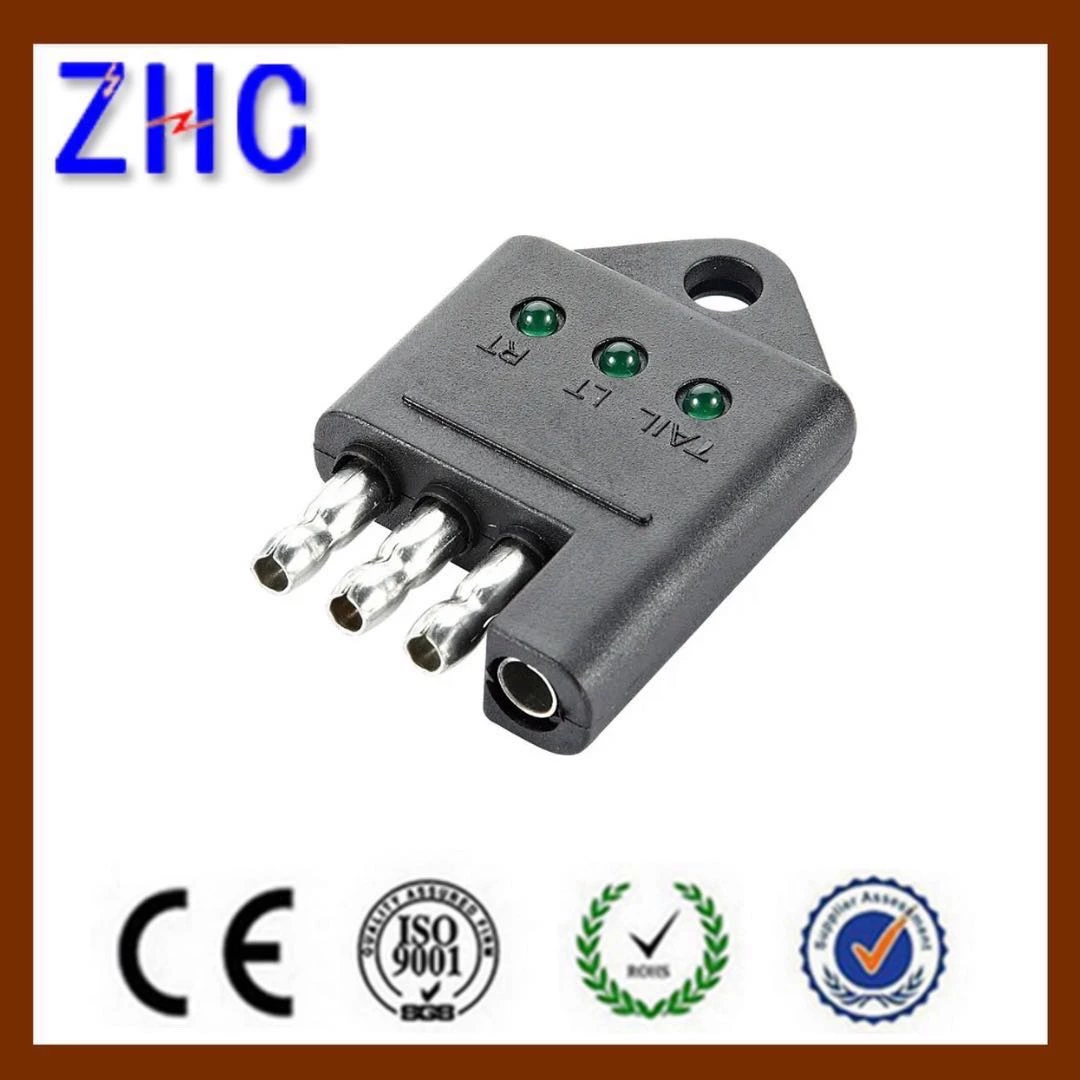

American Type 12V 24V Trailer Connector Tester

Certification
CE and ROHS
Model Number
ZC8007B
MOQ
1000PCS
Packaging Details
100PCS/CTN
Supply Ability
200000PCS/Month
Material
Nylon66 plastic + Brass Contact
Color
Black
Voltage
12V 24V
Type
American Trailer Tester
Wire
Screw Wire

Contact Now



American trailer connector

American Type  12V 24V  Trailer Connector Tester

Product Function:

1.Criss-cross of slotted brass contact, matched with female needle.

2. The surface is matte process and new material.

3. Appearance design is convenient and easy.

Type  American Trailer Tester
Model NO.  ZC8020
Color   Black
Voltage  12V 24V
Body Material  Nylon 66 Plastic
Contact materials Brass contact
Wire Method  Screw Install
certification  CE, ROHS, PAHS
Aplication  Automotive,Trailer,Truck,Yacht and so on





American 12V  Trailer Connector
Specifications:

7 Pin Lighting Connections - 12 N Black Cable Function

PIN 1 - Yellow Wire (Left/H Direction Indicator)
PIN 2 - Blue Wire ( Rear Fog Lamps )
PIN 3 - White Wire ( Earth Return )
PIN 4 - Green Wire (Right/H Direction Indicator)
PIN 5 - Brown Wire (Right/H Tail & No. Plate Lamp )
PIN 6 - Red Wire (Brake lights)
PIN 7 - Black Wire (Left/H Tail & No. Plate Lamp )
