24V Trailer Connector

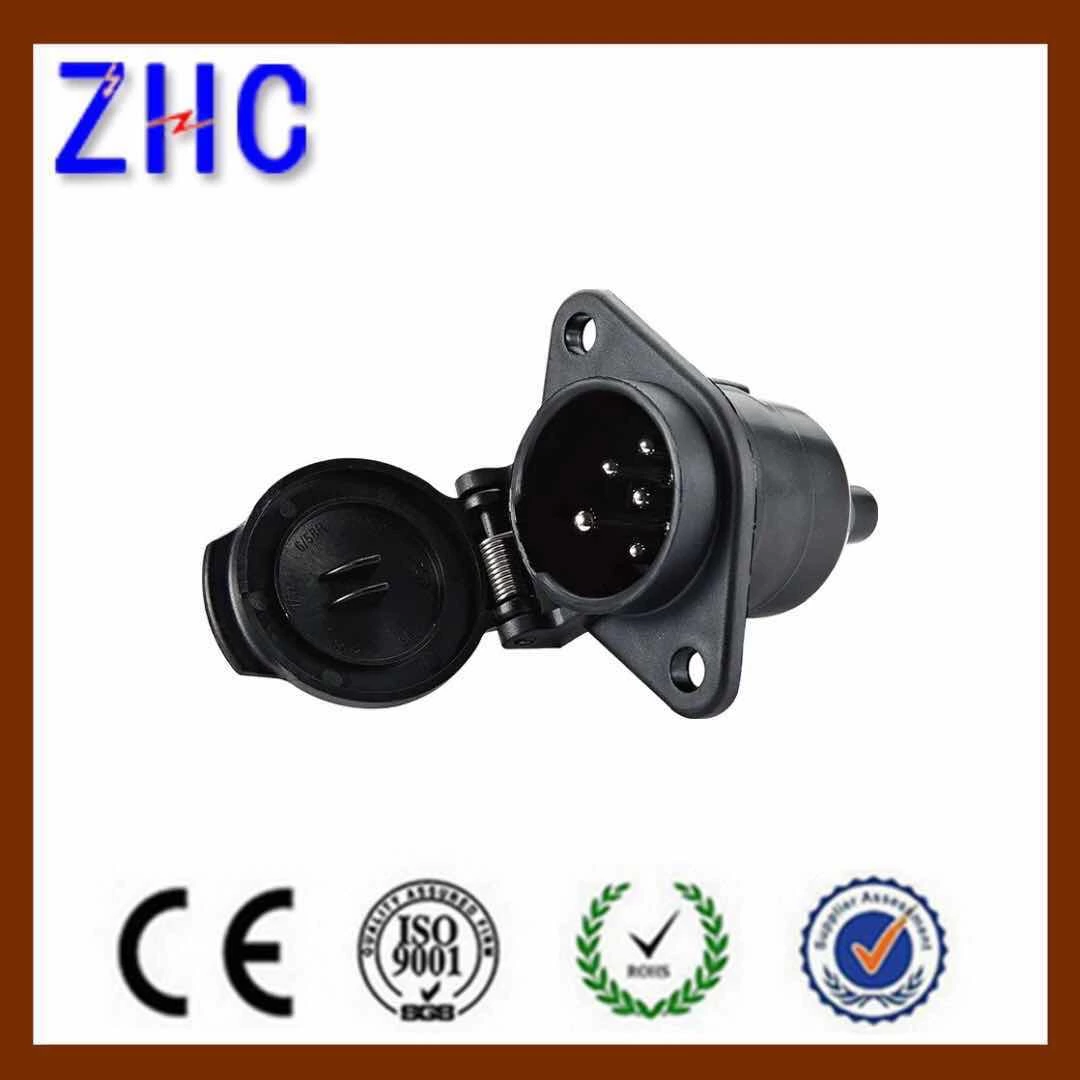

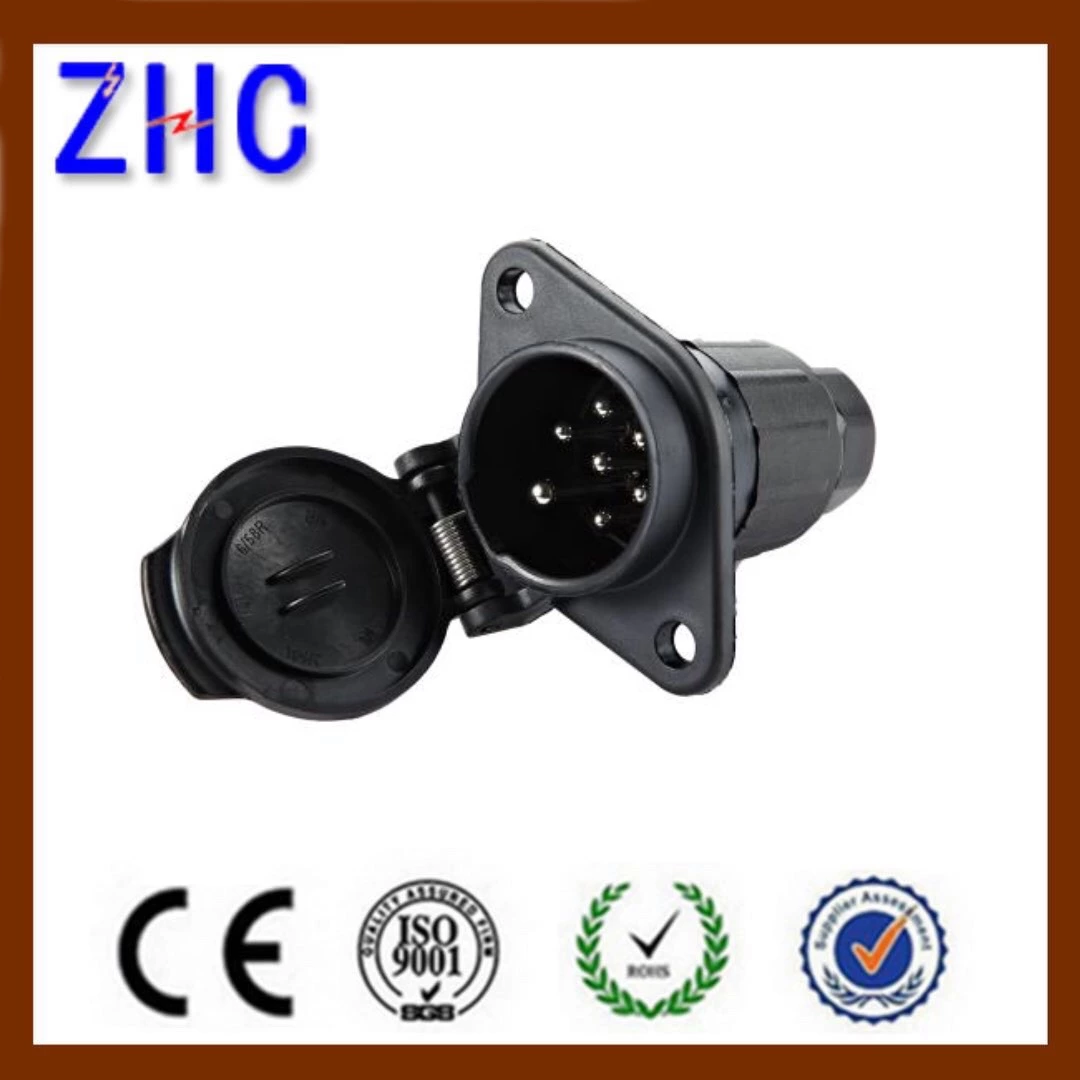

CE ROHS Waterproof 7P 24V N type Mounted Female Trailer Socket Towing Connector For Semi Car Caravan Trailer

Certification
CE and ROHS
Model Number
ZC6005, ZC6005B
MOQ
1000PCS
Packaging Details
100PCS/CTN
Supply Ability
200000PCS/Month
Material
Nylon66 plastic + Brass Contact
Color
Black
Poles
7pins
Voltage
24v
Type
European Mounted Trailer Socket
Gender
Female
Wire
Screw Wire
Contact Now
CE ROHS Waterproof  7P 24V N type Mounted Female Trailer Socket Towing Connector For Semi Car Caravan Trailer
24v trailer socket 24V trailer plug



Female trailer socket

CE ROHS Waterproof  7P 24V N type Mounted Female Trailer Socket Towing Connector For Semi Car Caravan Trailer

Trailer Socket Function:

1.Criss-cross of slotted brass contact, matched with female needle.

2. The surface is matte process and new material.

3. Appearance design is convenient and easy.

Type  European Trailer Socket
Model NO.  ZC6005
Gender   Female
Color   Black
Voltage  24V
Body Material  Nylon 66 Plastic
Contact materials Brass contact
Pin 7 pin
Wire Method  Screw Install
certification  CE, ROHS, PAHS
Aplication  Automotive,Trailer,Truck,Yacht and so on





female trailer connector
Specifications:

7 Pin Lighting Connections - 12 N Black Cable Function

PIN 1 - Yellow Wire (Left/H Direction Indicator)
PIN 2 - Blue Wire ( Rear Fog Lamps )
PIN 3 - White Wire ( Earth Return )
PIN 4 - Green Wire (Right/H Direction Indicator)
PIN 5 - Brown Wire (Right/H Tail & No. Plate Lamp )
PIN 6 - Red Wire (Brake lights)
PIN 7 - Black Wire (Left/H Tail & No. Plate Lamp )



7P Trailer Connector
