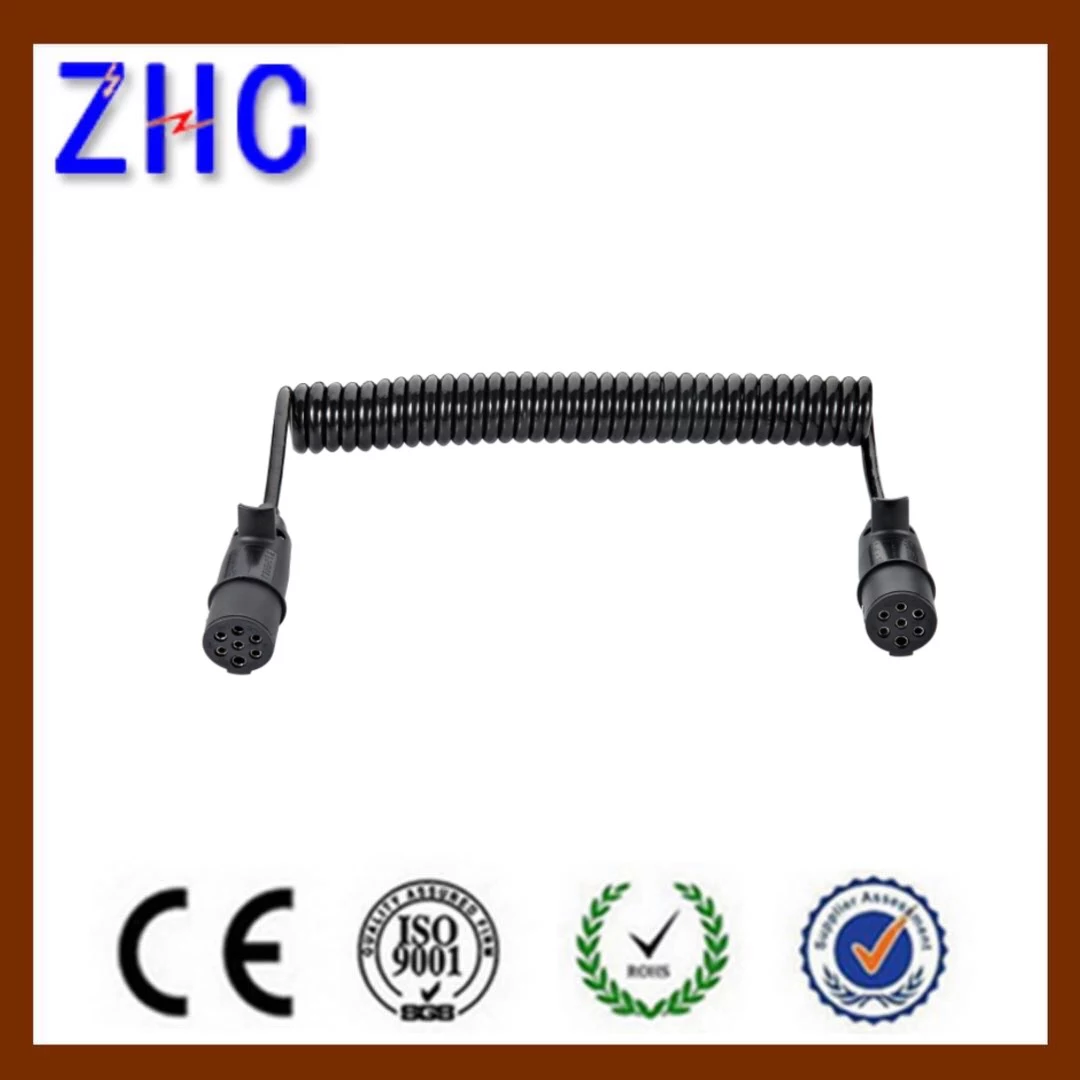

ISO 1185 24V N Type 7P Cable Extension Cord TPU Spiral Coil Cable Plastic Trailer Connector
- Certification:
- CE and ROHS
- Model Number:
- ZC1107
- MOQ:
- 1000PCS
- Packaging Details:
- 100PCS/CTN
- Supply Ability:
- 200000PCS/Month
- Material:
- Plastic + Brass Contact
- Color:
- Black
- Poles:
- 7pins
- Voltage:
- 24V
- Type:
- European Trailer Connector Cable Set
- Gender:
- Male
- Wire:
- Screw Wire
ISO 1185 24V N Type 7P Cable Extension Cord TPU Spiral Coil Cable Plastic Trailer Connector
Product Function:
1.Criss-cross of slotted brass contact, matched with female needle.
2. The surface is matte process and new material.
3. Appearance design is convenient and easy.
| Type | European Trailer Connector Cable Set |
| Model NO. | ZC1107 |
| Gender | Male |
| Color | Black |
| Voltage | 24V |
| Body Material | Plastic |
| Contact materials | Brass contact |
| Pin | 7 pin |
| Wire Method | Screw Install |
| certification | CE, ROHS, PAHS |
| Aplication | Automotive,Trailer,Truck,Yacht and so on |
Specifications:
7 Pin Lighting Connections - 12 N Black Cable Function
PIN 1 - Yellow Wire (Left/H Direction Indicator)
PIN 2 - Blue Wire ( Rear Fog Lamps )
PIN 3 - White Wire ( Earth Return )
PIN 4 - Green Wire (Right/H Direction Indicator)
PIN 5 - Brown Wire (Right/H Tail & No. Plate Lamp )
PIN 6 - Red Wire (Brake lights)
PIN 7 - Black Wire (Left/H Tail & No. Plate Lamp )
