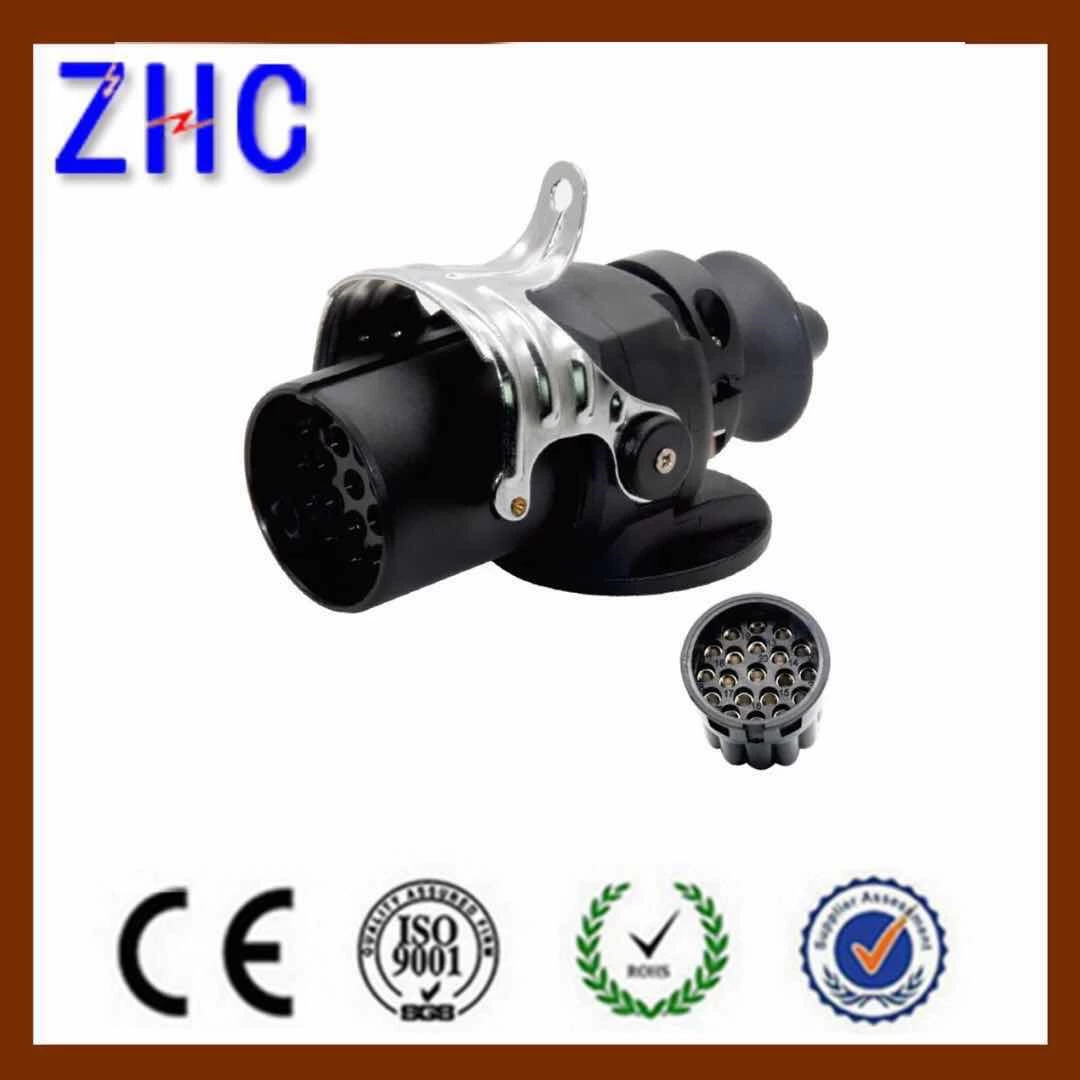

24V ABS/EBS Trailer Plug Socket Connector

Euro 20P 24V ABS / EBS Trailer Plug Connector For Auto Trailer Car

Certification
CE and ROHS
Model Number
ZC6050
MOQ
1000PCS
Packaging Details
100PCS/CTN
Supply Ability
200000PCS/Month
Material
Nylon66 plastic + Brass Contact
Color
Black
Poles
20pins
Voltage
24V
Type
European ABS EBS Trailer connector
Gender
Male
Wire
Screw Wire

Contact Now

24V Euro Trailer ABS connector



Euro 20P 24V ABS / EBS Trailer Plug Connector For Auto Trailer Car

Product Function:

1.Criss-cross of slotted brass contact, matched with female needle.

2. The surface is matte process and new material.

3. Appearance design is convenient and easy.

Type  European ABS /EBS Trailer Connector
Model NO.  ZC6050
Gender   Male
Color   Black
Voltage  24V
Body Material  Nylon 66 Plastic
Contact materials Brass contact
Pin 20pin
Wire Method  Screw Install
certification  CE, ROHS, PAHS
Aplication  Automotive,Trailer,Truck,Yacht and so on





EBS Trailer connector
Specifications:

7 Pin Lighting Connections - 12 N Black Cable Function

PIN 1 - Yellow Wire (Left/H Direction Indicator)
PIN 2 - Blue Wire ( Rear Fog Lamps )
PIN 3 - White Wire ( Earth Return )
PIN 4 - Green Wire (Right/H Direction Indicator)
PIN 5 - Brown Wire (Right/H Tail & No. Plate Lamp )
PIN 6 - Red Wire (Brake lights)
PIN 7 - Black Wire (Left/H Tail & No. Plate Lamp )



24V trailer EBS connector
