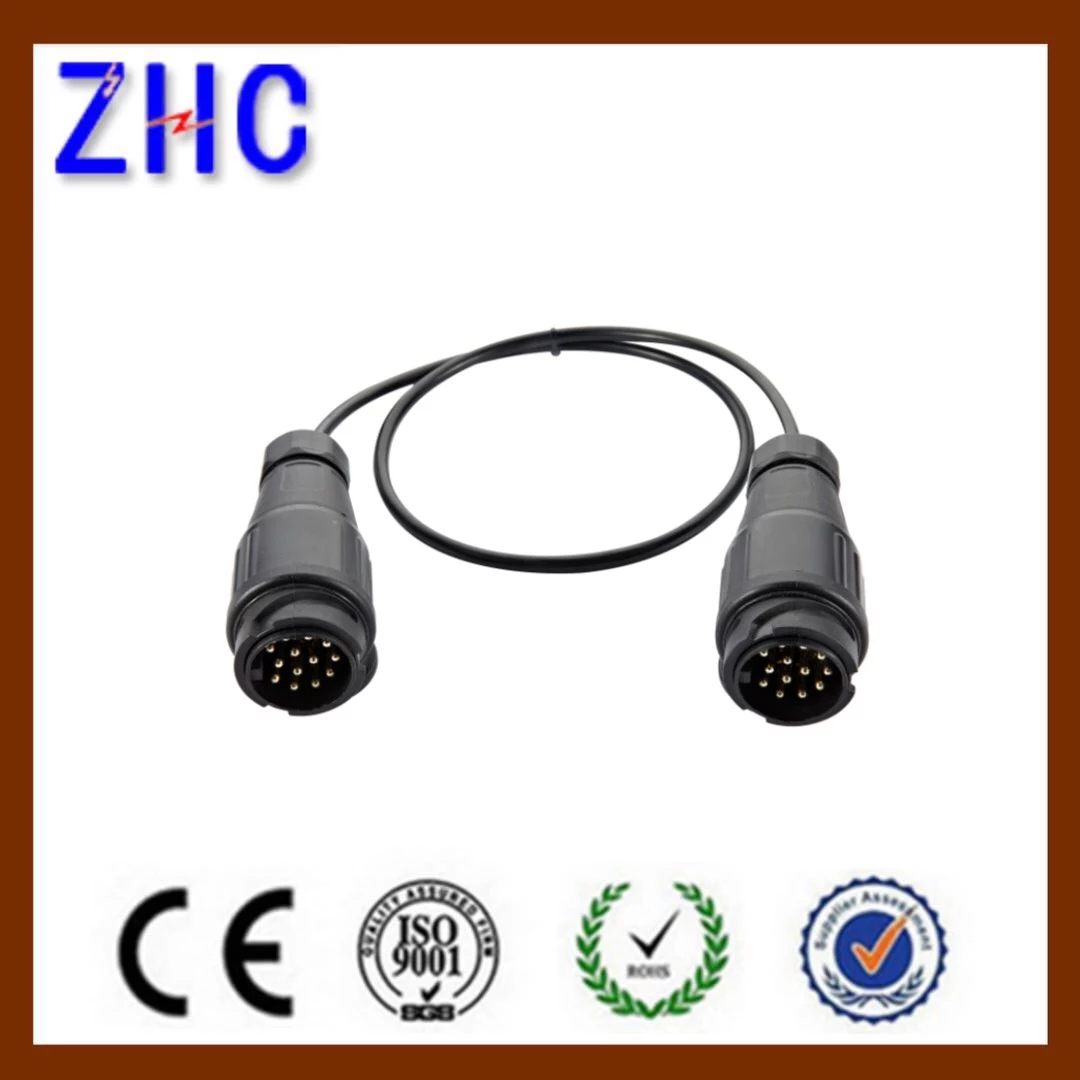

12V Trailer Connector Cable Set

RVV Cable 13Pin 12V PVC Plastic Auto Trailer Towing Connector For Car Semi Trailer Truck Caravan

Certification
CE and ROHS
Model Number
ZC1005
MOQ
1000PCS
Packaging Details
100PCS/CTN
Supply Ability
200000PCS/Month
Material
Nylon66 plastic + Brass Contact
Color
Black
Poles
13pin
Voltage
12V
Type
European Trailer Connector Cable Set
Gender
Male
Wire
Screw Wire

Contact Now



13p Cable extension socket

RVV Cable 13Pin 12V  PVC Plastic Auto Trailer Towing Connector For Car Semi Trailer Truck Caravan

Trailer Towing Connector  Function:

1.Criss-cross of slotted brass contact, matched with female needle.

2. The surface is matte process and new material.

3. Appearance design is convenient and easy.

Type  European Trailer  Connector Cable Set
Model NO.  ZC1005
Gender   Male
Color   Black
Voltage  12V
Body Material  Nylon 66 Plastic
Contact materials Brass contact
Pin 13pin
Wire Method  Screw Install
certification  CE, ROHS, PAHS
Aplication  Automotive,Trailer,Truck,Yacht and so on





multi cable trailer connector
Specifications:

13 Pin Lighting Connections - Cable Function

Pin1 - Yellow Wire ( Left Indicator )
Pin2 - Blue Wire ( Fog Light )
Pin3 - White Wire ( Earth Return )
Pin4 - Green Wire ( Right Indicator )
Pin5 - Brown Wire ( Right tail / Side Light )
Pin6 - Red Wire ( Brake / Stop Lights )
Pin7 - Black Wire ( Left tail / Side Light )
Pin8 - Pink Wire ( Reversing Light )
Pin9 - Orange Wire ( 12V Pemanent power from battery )
Pin10 - Grey Wire ( 12V Ignition on ( Battery charging or Fridge )
Pin11 - White / Black Wire ( Earth for Teminal 10 )
Pin 12 - White / Blue Wire ( NOT usually used )
Pin 13 - White / Red Wire ( Earth for Teminal 9 )
