12V Mounted Female Trailer Connector

Waterproof 13+1P 12V Square socket model Plastic Nylon66 Trailer socket connector For Towing Trailer Caravans

Certification
CE and ROHS
Model Number
ZC3010
MOQ
1000PCS
Packaging Details
100PCS/CTN
Supply Ability
200000PCS/Month
Material
Plastic + Brass Contact
Color
Black
Poles
13+1 pins
Voltage
12V
Type
European Mounted Trailer Socket
Gender
Female
Wire
Screw Wire

Contact Now

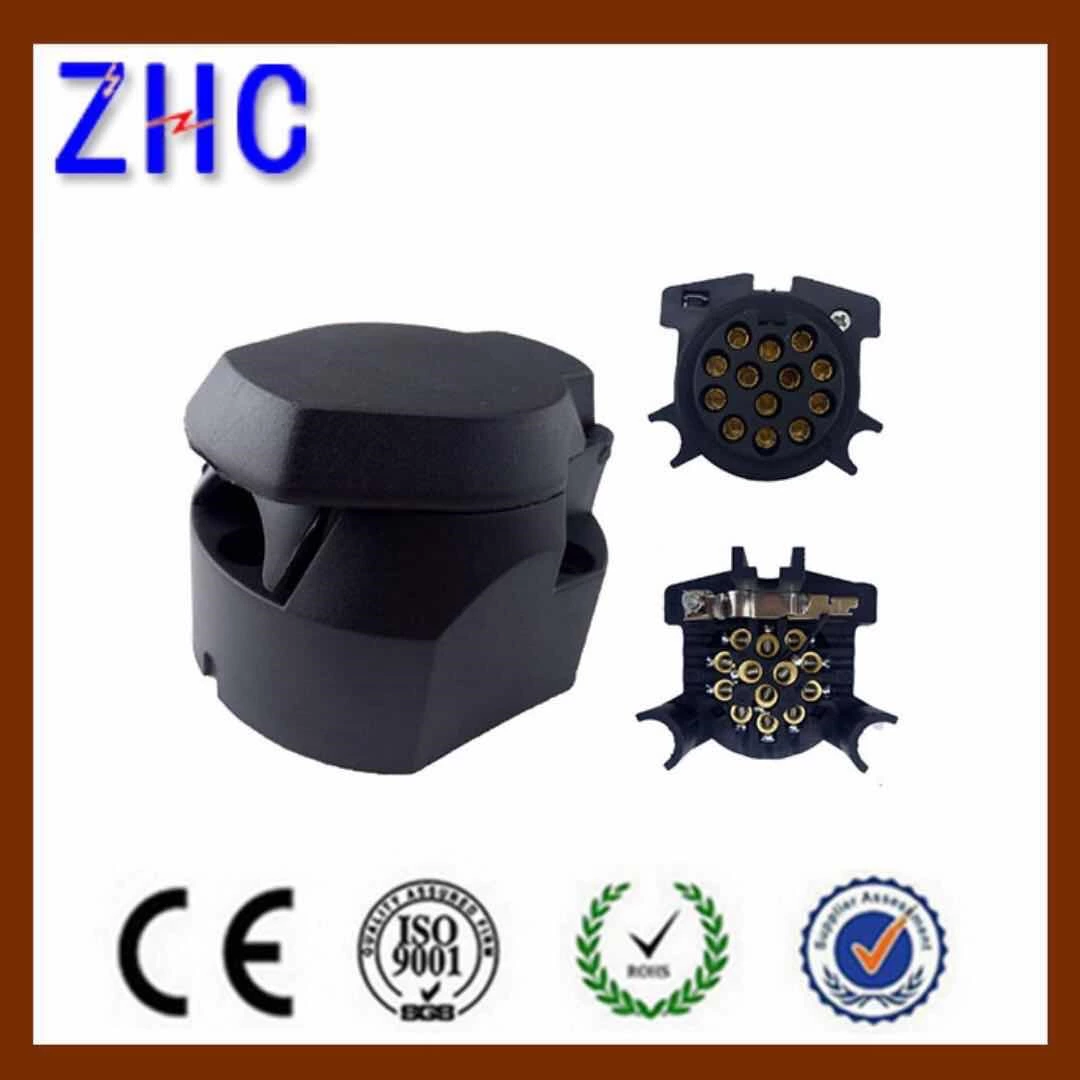

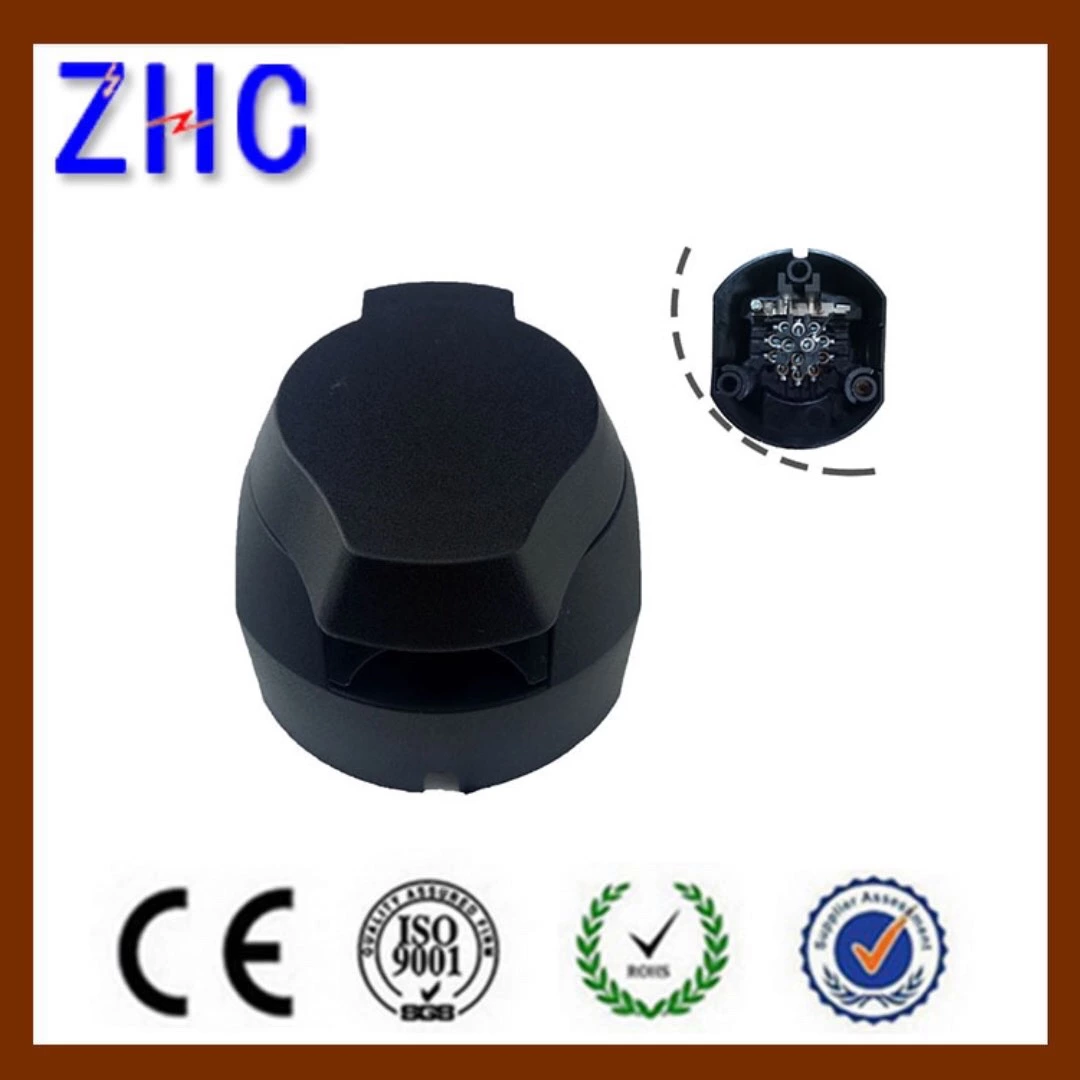

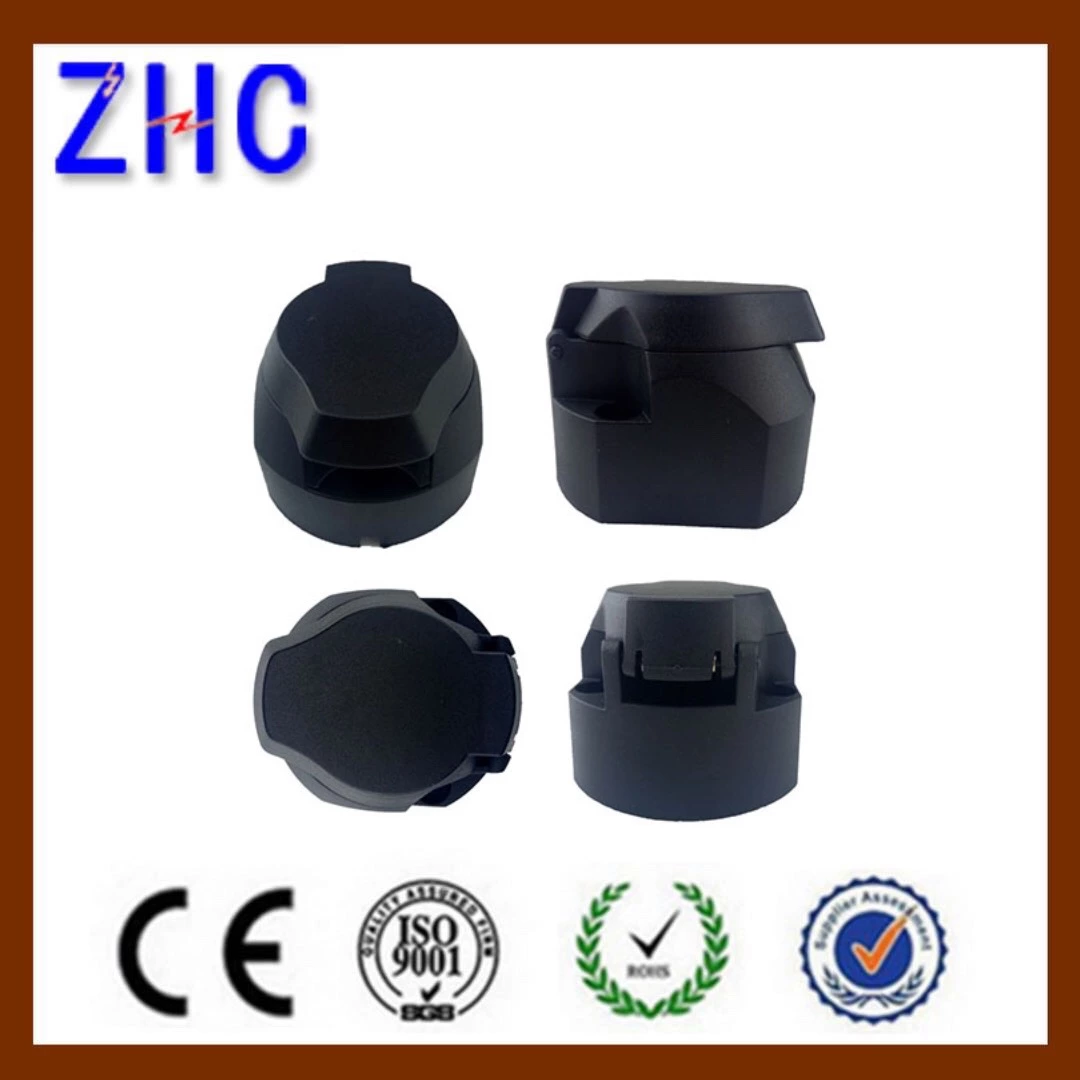

13p square trailer socket

Waterproof 13+1 P 12V Square socket model  Plastic Nylon66 Trailer socket connector  For Towing Trailer Caravans

Trailer Socket Function:

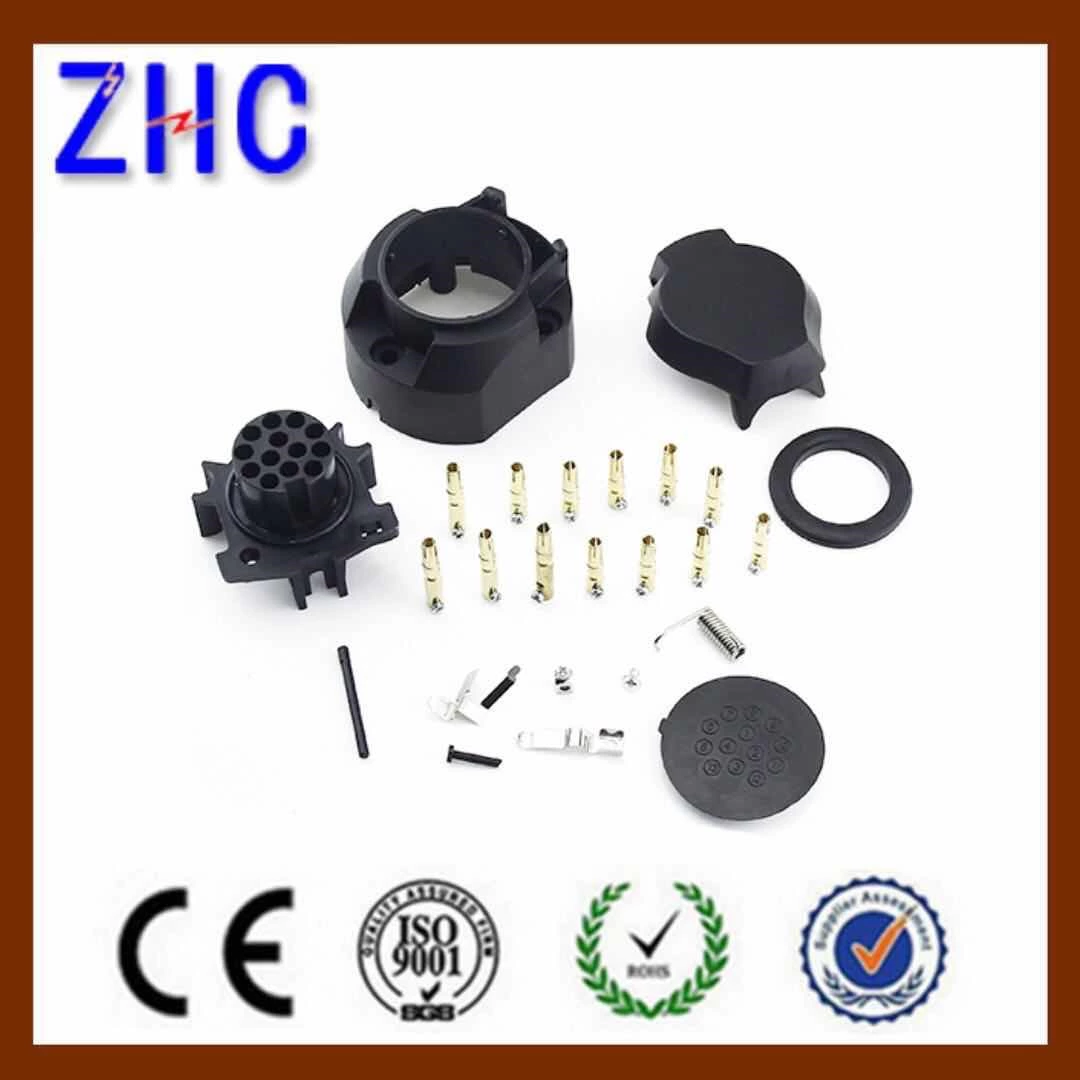

1.Criss-cross of slotted brass contact, matched with female needle.

2. The surface is matte process and new material.

3. Appearance design is convenient and easy.

Type  European Trailer Plug
Model NO.  ZC3010
Gender   Female
Color   Black
Voltage  12V
Body Material  Plastic Nylon66
Contact materials Brass contact
Pin 13+1 pin
Wire Method  Screw Install
certification  CE, ROHS, PAHS
Aplication  Automotive,Trailer,Truck,Yacht and so on





electrical socket
Specifications:

13 Pin Lighting Connections - Cable Function

Pin1 - Yellow Wire ( Left Indicator )
Pin2 - Blue Wire ( Fog Light )
Pin3 - White Wire ( Earth Return )
Pin4 - Green Wire ( Right Indicator )
Pin5 - Brown Wire ( Right tail / Side Light )
Pin6 - Red Wire ( Brake / Stop Lights )
Pin7 - Black Wire ( Left tail / Side Light )
Pin8 - Pink Wire ( Reversing Light )
Pin9 - Orange Wire ( 12V Pemanent power from battery )
Pin10 - Grey Wire ( 12V Ignition on ( Battery charging or Fridge )
Pin11 - White / Black Wire ( Earth for Teminal 10 )
Pin 12 - White / Blue Wire ( NOT usually used )
Pin 13 - White / Red Wire ( Earth for Teminal 9 )

Extra Pin: Cut off the fog light
