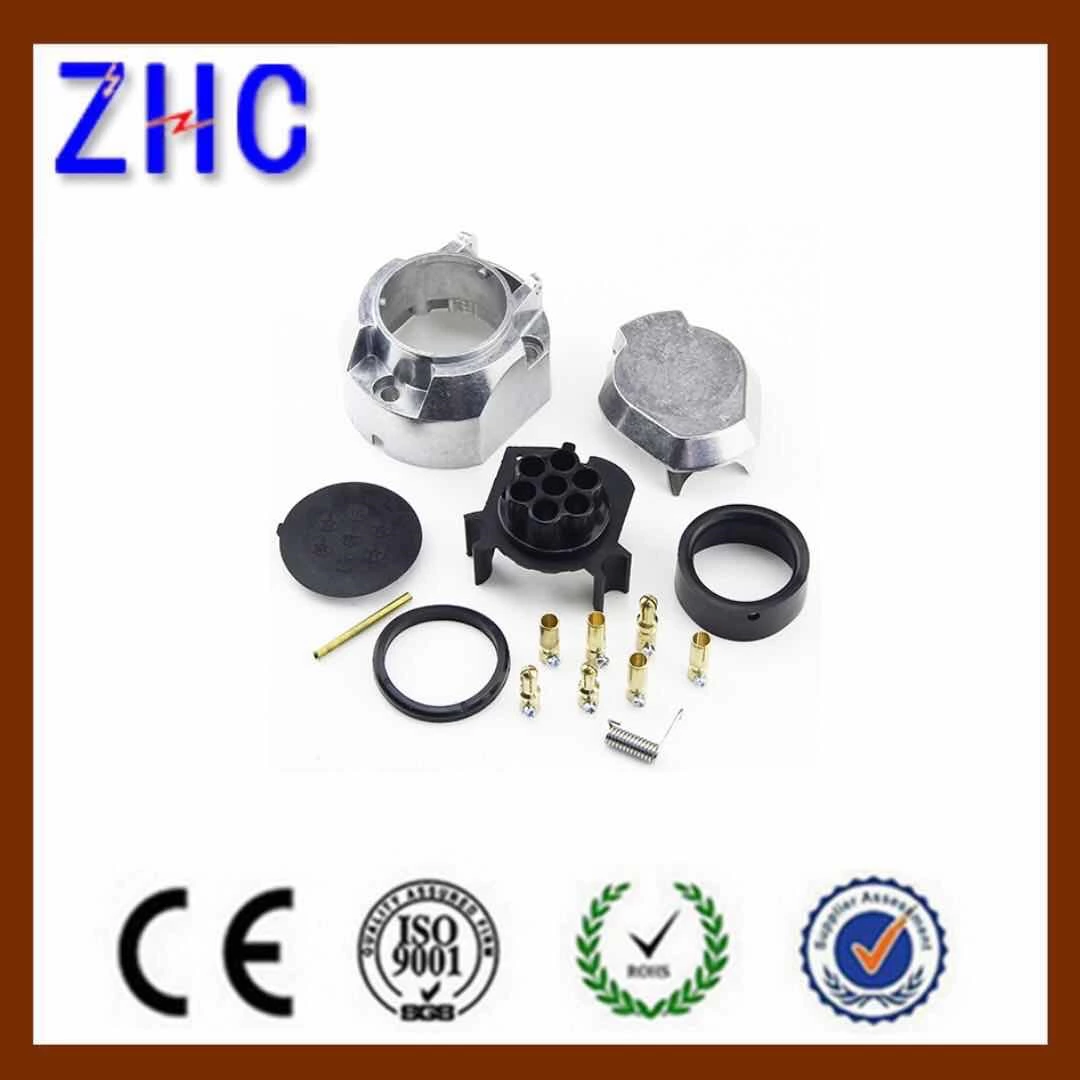

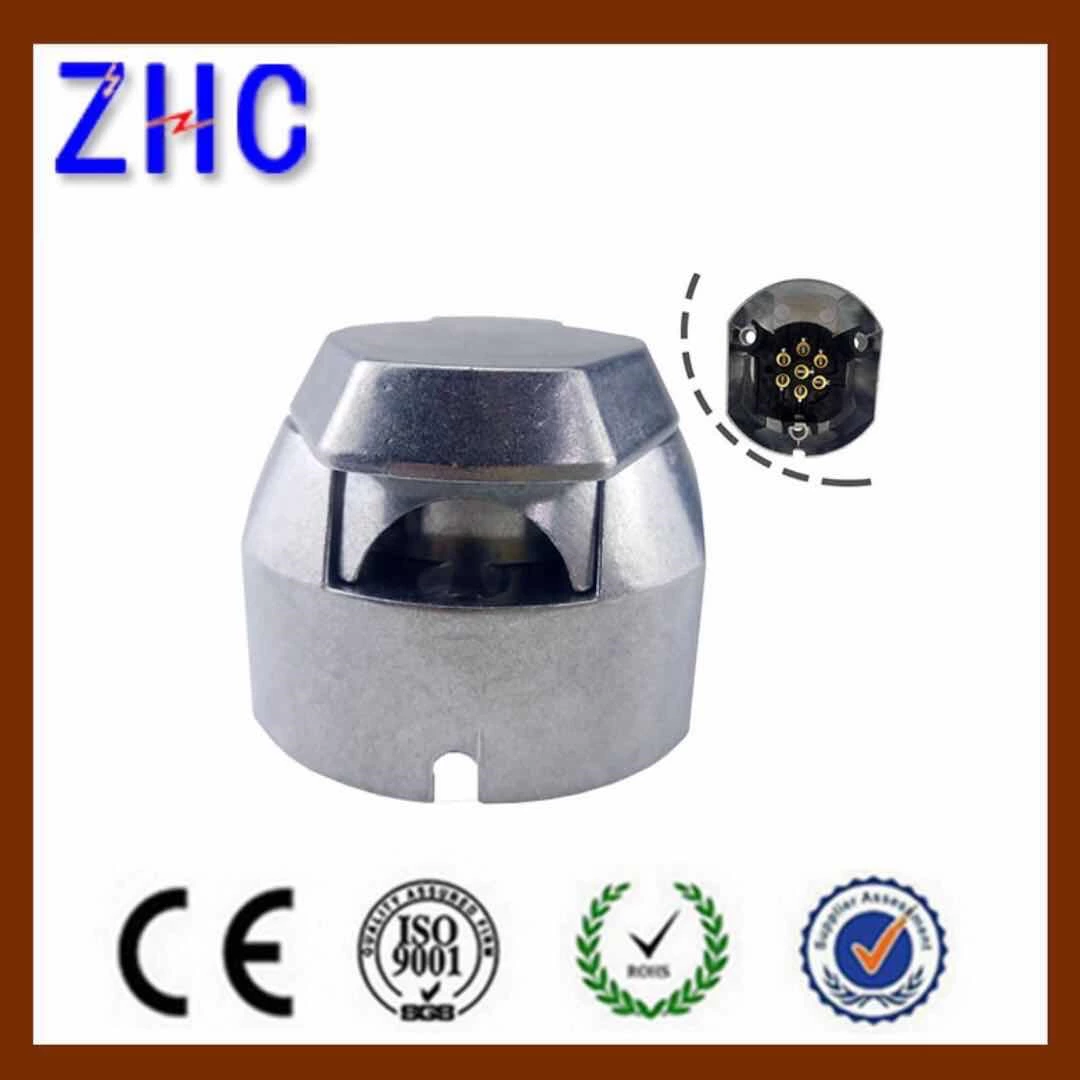

CE ROHS Waterproof 7P 12V Heavy Duty Aluminum Mounted Female Trailer Socket Towing Connector
- Certification:
- CE and ROHS
- Model Number:
- ZC3000
- MOQ:
- 1000PCS
- Packaging Details:
- 100PCS/CTN
- Supply Ability:
- 200000PCS/Month
- Material:
- Aluminum + Brass Contact
- Color:
- Silver
- Poles:
- 7pins
- Voltage:
- 12V
- Type:
- European Mounted Trailer Socket
- Gender:
- Female
- Wire:
- Screw Wire
CE ROHS Waterproof 7P 12V Heavy Duty Aluminum Mounted Female Trailer Socket Towing Connector
Trailer Socket Function:
1.Criss-cross of slotted brass contact, matched with female needle.
2. The surface is matte process and new material.
3. Appearance design is convenient and easy.
| Type | European Trailer Plug |
| Model NO. | ZC3000 |
| Gender | Female |
| Color | Silver |
| Voltage | 12V |
| Body Material | Aluminum |
| Contact materials | Brass contact |
| Pin | 7 pin |
| Wire Method | Screw Install |
| certification | CE, ROHS, PAHS |
| Aplication | Automotive,Trailer,Truck,Yacht and so on |
Specifications:
7 Pin Lighting Connections - 12 N Black Cable Function
PIN 1 - Yellow Wire (Left/H Direction Indicator)
PIN 2 - Blue Wire ( Rear Fog Lamps )
PIN 3 - White Wire ( Earth Return )
PIN 4 - Green Wire (Right/H Direction Indicator)
PIN 5 - Brown Wire (Right/H Tail & No. Plate Lamp )
PIN 6 - Red Wire (Brake lights)
PIN 7 - Black Wire (Left/H Tail & No. Plate Lamp )
