12V Male Trailer Connector

Screw Wired 7P 12V Alumium Body Auto Trailer Connector For Tractor Use

Certification
CE and ROHS
Model Number
ZC3012
MOQ
1000PCS
Packaging Details
100PCS/CTN
Supply Ability
200000PCS/Month
Material
Aluminum Body +Brass Contact
Color
Silver
Poles
7pins
Voltage
12V
Type
European Trailer Plug
Gender
Male
Wire
Screw Wire
Contact Now
Screw Wired 7P 12V Alumium Body Auto Trailer Connector For Tractor Use
aluminum connector aluminum trailer connector trailer plug trailer male connector



European Trailer connector 7P 12V

Screw Wired 7P 12V Alumium Body Auto Trailer Connector For Tractor Use

Product Function:

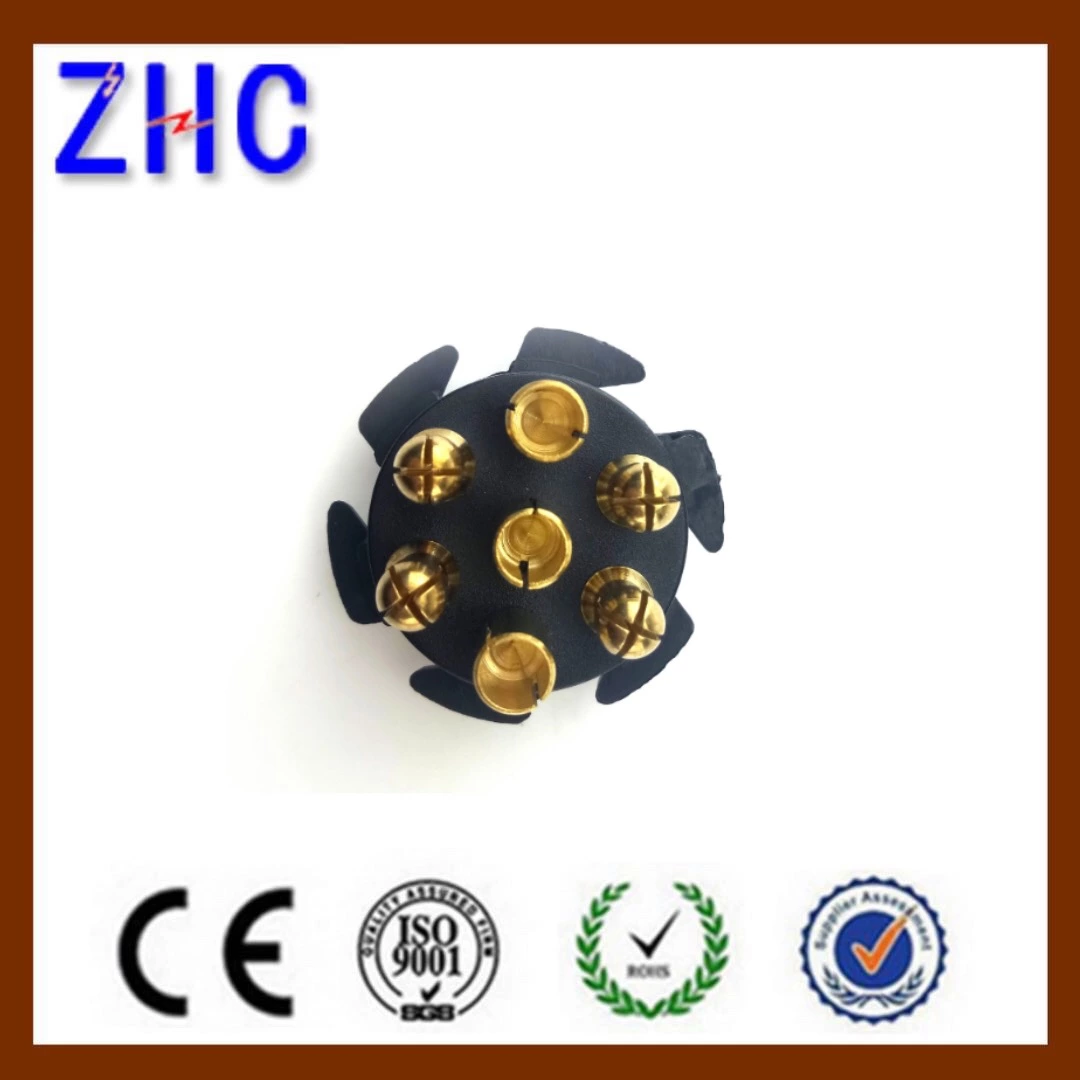

1.Criss-cross of slotted brass contact, matched with female needle.

2. The surface is matte process and new material.

3. Appearance design is convenient and easy.

Type  European Trailer Plug
Model NO.  ZC3012
Gender   Male
Color   Silver
Voltage  12V
Body Material  Aluminum
Contact materials Brass Conact
Pin 7 pin
Wire Method  Screw Install
certification  CE, ROHS, PAHS
Aplication  Automotive,Trailer,Truck,Yacht and so on





Aluminum Trailer plug connector
Specifications:

7 Pin Lighting Connections - 12 N Black Cable Function

PIN 1 - Yellow Wire (Left/H Direction Indicator)
PIN 2 - Blue Wire ( Rear Fog Lamps )
PIN 3 - White Wire ( Earth Return )
PIN 4 - Green Wire (Right/H Direction Indicator)
PIN 5 - Brown Wire (Right/H Tail & No. Plate Lamp )
PIN 6 - Red Wire (Brake lights)
PIN 7 - Black Wire (Left/H Tail & No. Plate Lamp )



7P Trailer Connector
