12V Male Trailer Connector

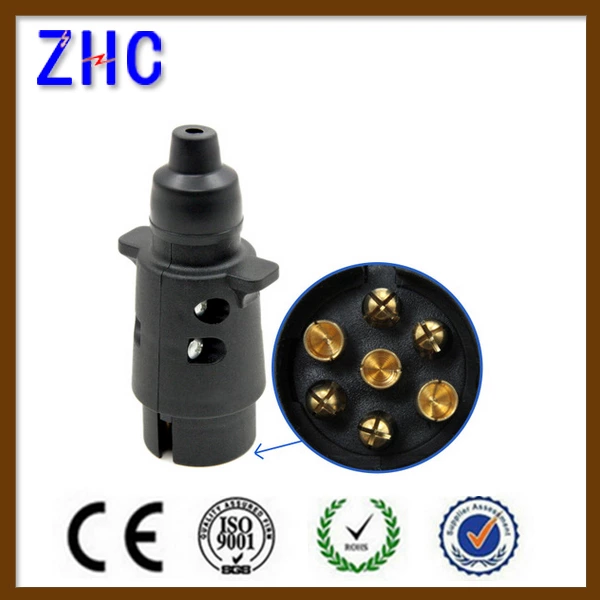

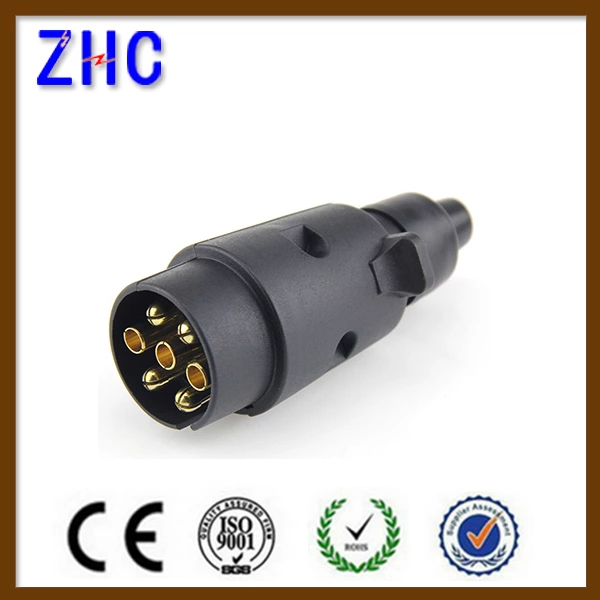

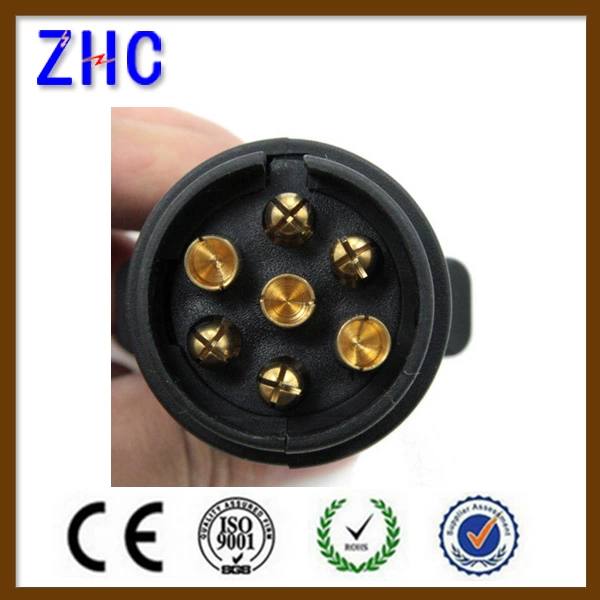

European Type 7P 12V Plastic Nylon 66 Brass Contact Trailer Connector Male Plug with Screw install

Certification
CE and ROHS
Model Number
ZC3011
MOQ
1000PCS
Packaging Details
100PCS/CTN
Supply Ability
200000PCS/Month
Material
Nylon66 plastic + Brass Contact
Color
Black
Poles
7pins
Voltage
12V
Type
European Trailer Plug
Gender
Male
Wire
Screw Wire
Contact Now
European Type 7P 12V Plastic Nylon 66 Brass Contact Trailer Connector Male Plug with Screw install
trailer connector 7P trailer connector 12V trailer connector 7P 12V trailer connector Truck Trailer Connector european trailer connector



European Trailer connector 7P 12V

European Type 7P 12V Plastic Nylon 66 Brass Contact Trailer Connector Male Plug with Screw install

Product Function:

1.Criss-cross of slotted brass contact, matched with female needle.

2. The surface is matte process and new material.

3. Appearance design is convenient and easy.

Type  European Trailer Plug
Model NO.  ZC3011
Gender   Male
Color   Black
Voltage  12V
Body Material  Nylon 66 Plastic
Contact materials Brass contact
Pin 7 pin
Wire Method  Screw Install
certification  CE, ROHS, PAHS
Aplication  Automotive,Trailer,Truck,Yacht and so on





Plastic Trailer Connector
Specifications:

7 Pin Lighting Connections - 12 N Black Cable Function

PIN 1 - Yellow Wire (Left/H Direction Indicator)
PIN 2 - Blue Wire ( Rear Fog Lamps )
PIN 3 - White Wire ( Earth Return )
PIN 4 - Green Wire (Right/H Direction Indicator)
PIN 5 - Brown Wire (Right/H Tail & No. Plate Lamp )
PIN 6 - Red Wire (Brake lights)
PIN 7 - Black Wire (Left/H Tail & No. Plate Lamp )



7P Trailer Connector
