12V Male Trailer Connector

European 13Pin (7Pin ) 12V Plastic Trailer Connector Male Plug with Screw install

Certification
CE and ROHS
Model Number
ZC3017
MOQ
1000PCS
Packaging Details
100PCS/CTN
Supply Ability
200000PCS/Month
Material
Nylon66 plastic + Brass Contact
Color
Black
Poles
13pin(7pins)
Voltage
12V
Type
European Trailer Plug
Gender
Male
Wire
Screw Wire
Contact Now
European 13Pin (7Pin )  12V Plastic Trailer Connector Male Plug with Screw install

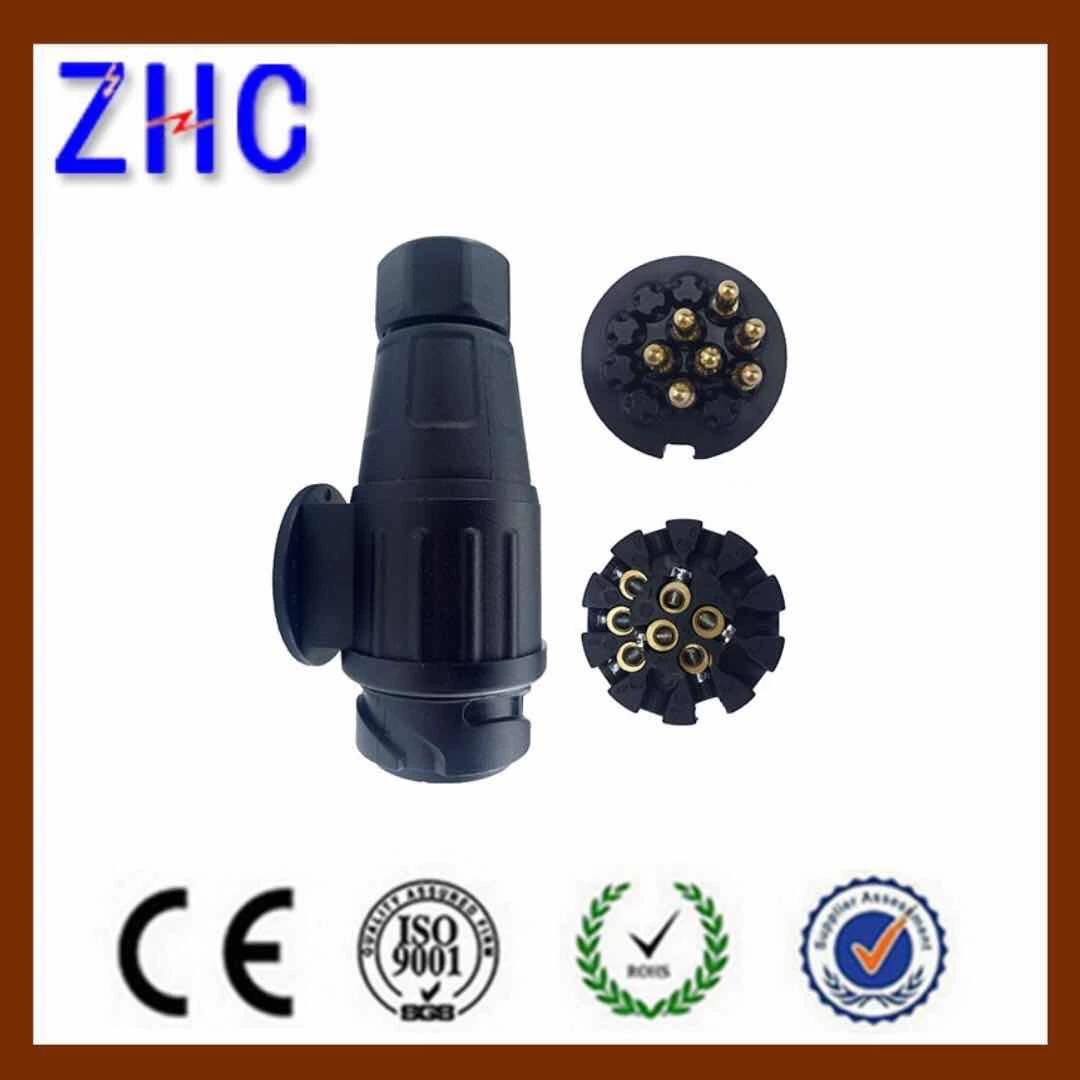

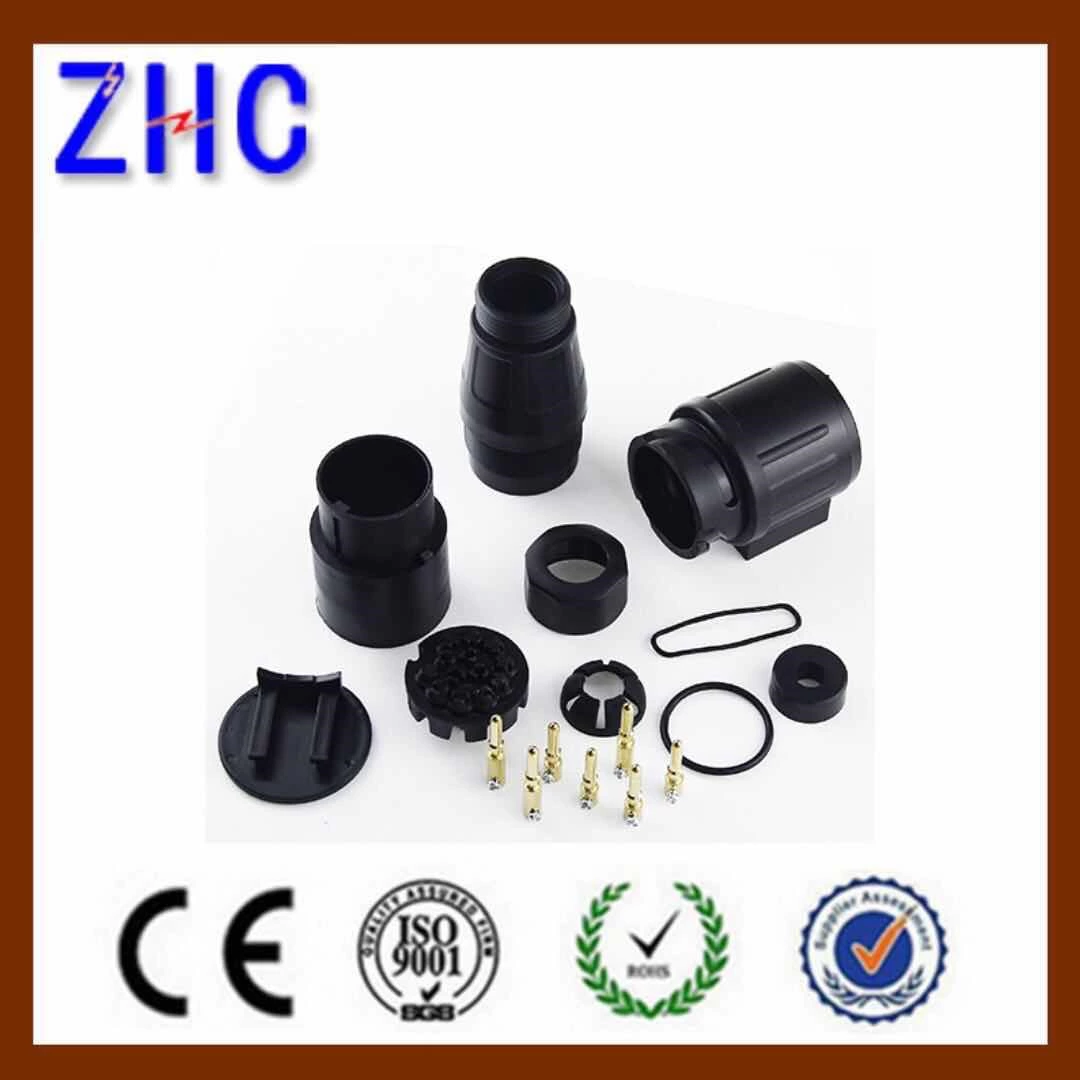

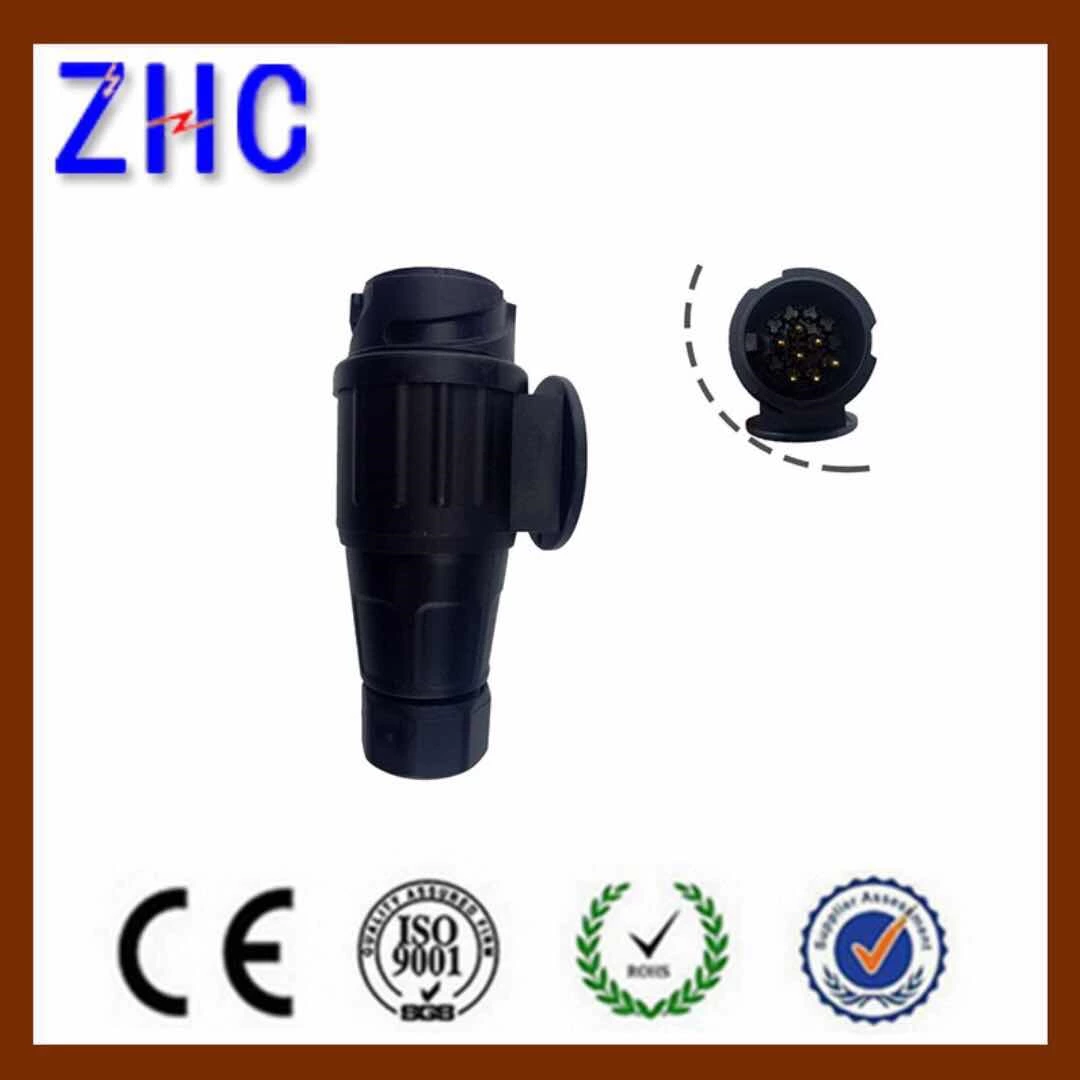

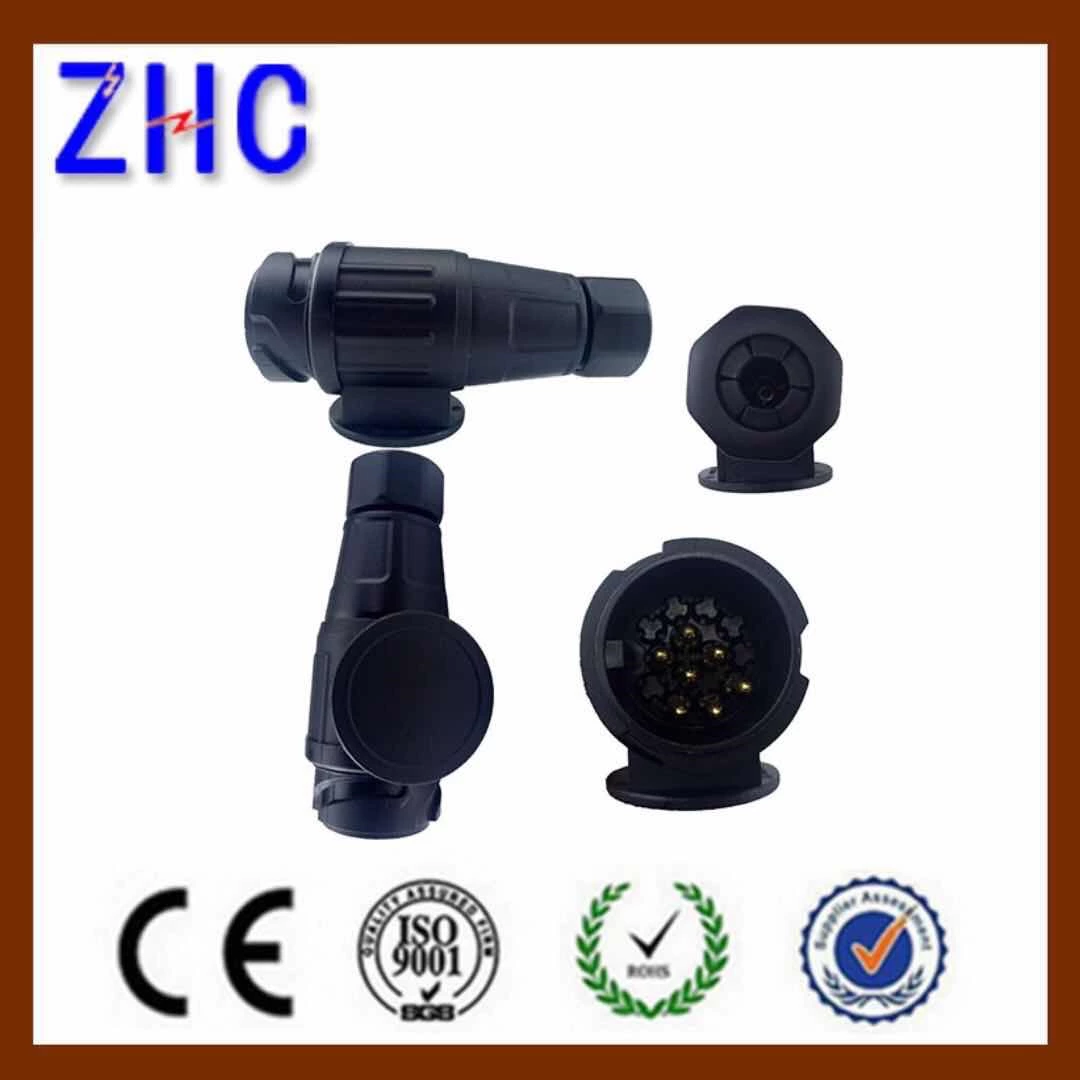

7pin trailer plug 13P trailer connector 13pin trailer connector auto trailer



trailer towing plug

European 13Pin (7Pin )  12V Plastic Trailer Connector Male Plug with Screw install

Product Function:

1.Criss-cross of slotted brass contact, matched with female needle.

2. The surface is matte process and new material.

3. Appearance design is convenient and easy.

Type  European Trailer Plug
Model NO.  ZC3017
Gender   Male
Color   Black
Voltage  12V
Body Material  Nylon 66 Plastic
Contact materials Brass contact
Pin 13 (7 pin )
Wire Method  Screw Install
certification  CE, ROHS, PAHS
Aplication  Automotive,Trailer,Truck,Yacht and so on





trailer towing connector 13p
Specifications:

13 Pin Lighting Connections - Cable Function

Pin1 - Yellow Wire ( Left Indicator )
Pin2 - Blue Wire ( Fog Light )
Pin3 - White Wire ( Earth Return )
Pin4 - Green Wire ( Right Indicator )
Pin5 - Brown Wire ( Right tail / Side Light )
Pin6 - Red Wire ( Brake / Stop Lights )
Pin7 - Black Wire ( Left tail / Side Light )
Pin8 - Pink Wire ( Reversing Light )
Pin9 - Orange Wire ( 12V Pemanent power from battery )
Pin10 - Grey Wire ( 12V Ignition on ( Battery charging or Fridge )
Pin11 - White / Black Wire ( Earth for Teminal 10 )
Pin 12 - White / Blue Wire ( NOT usually used )
Pin 13 - White / Red Wire ( Earth for Teminal 9 )



7P Trailer Connector
